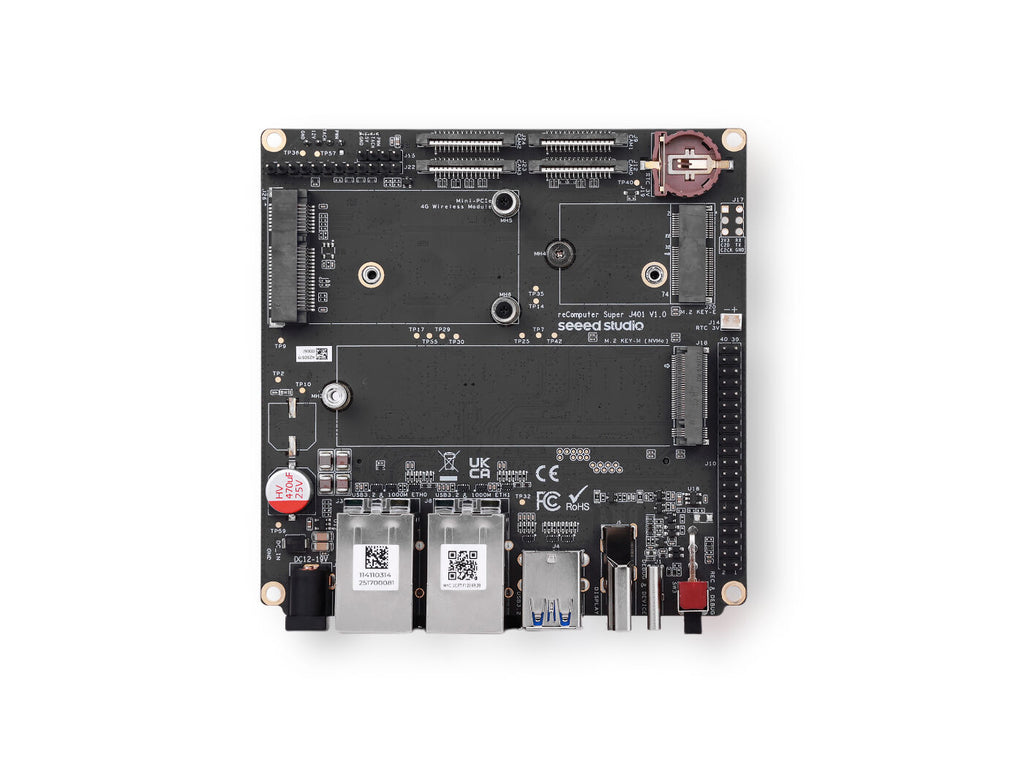

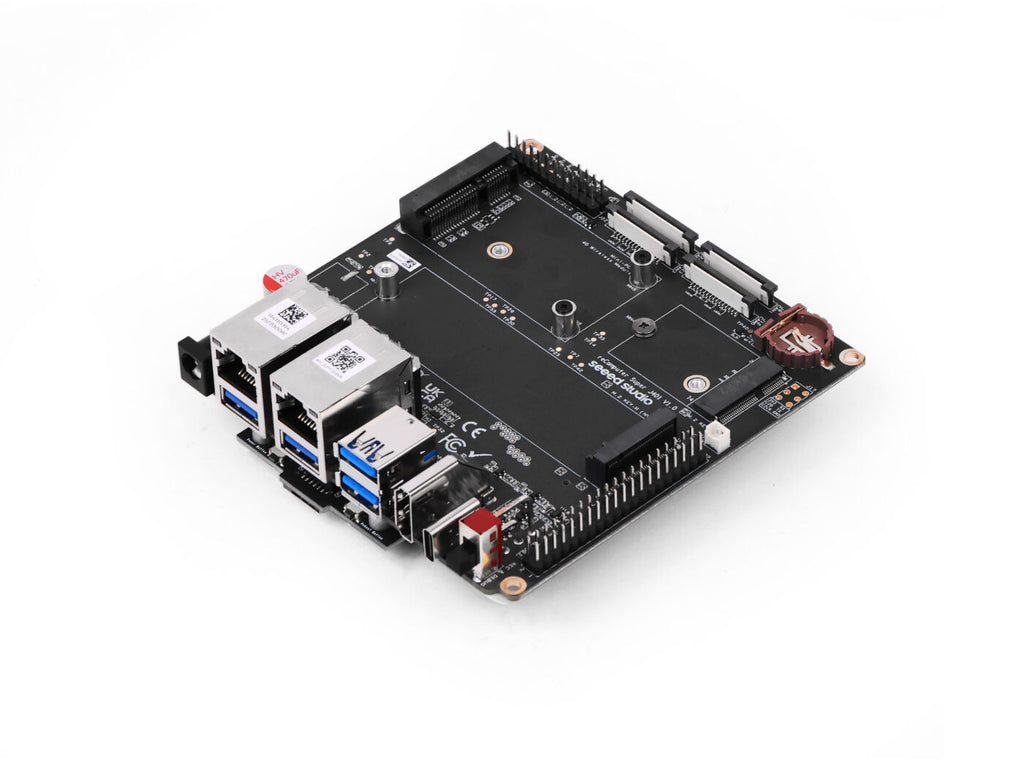

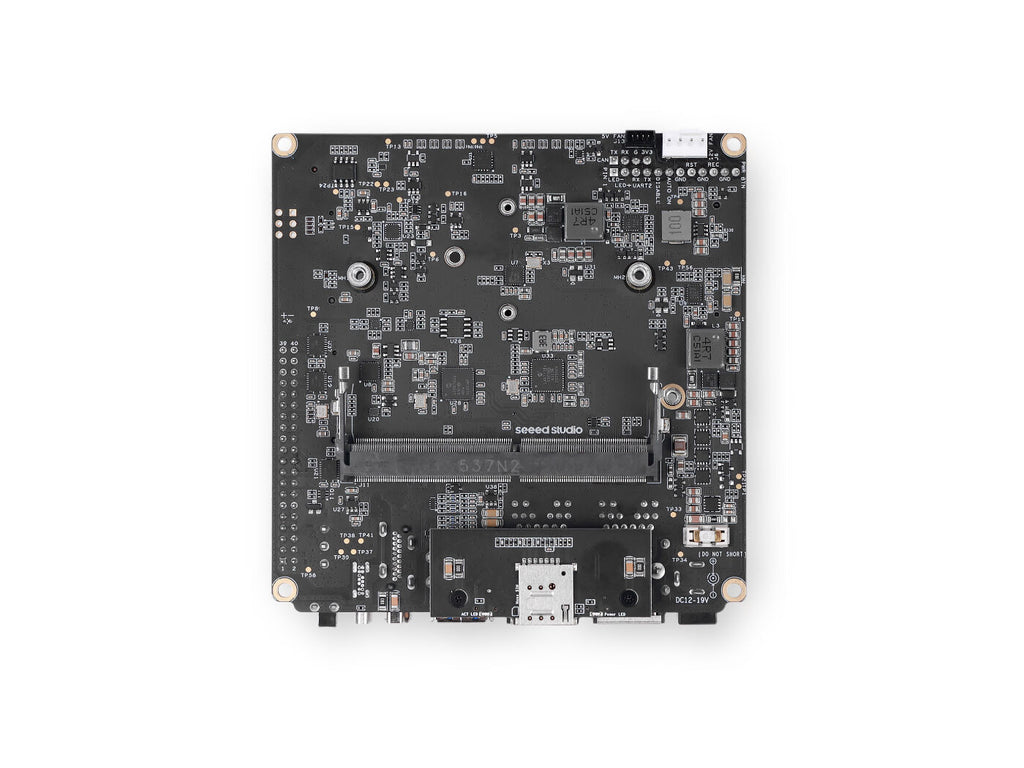

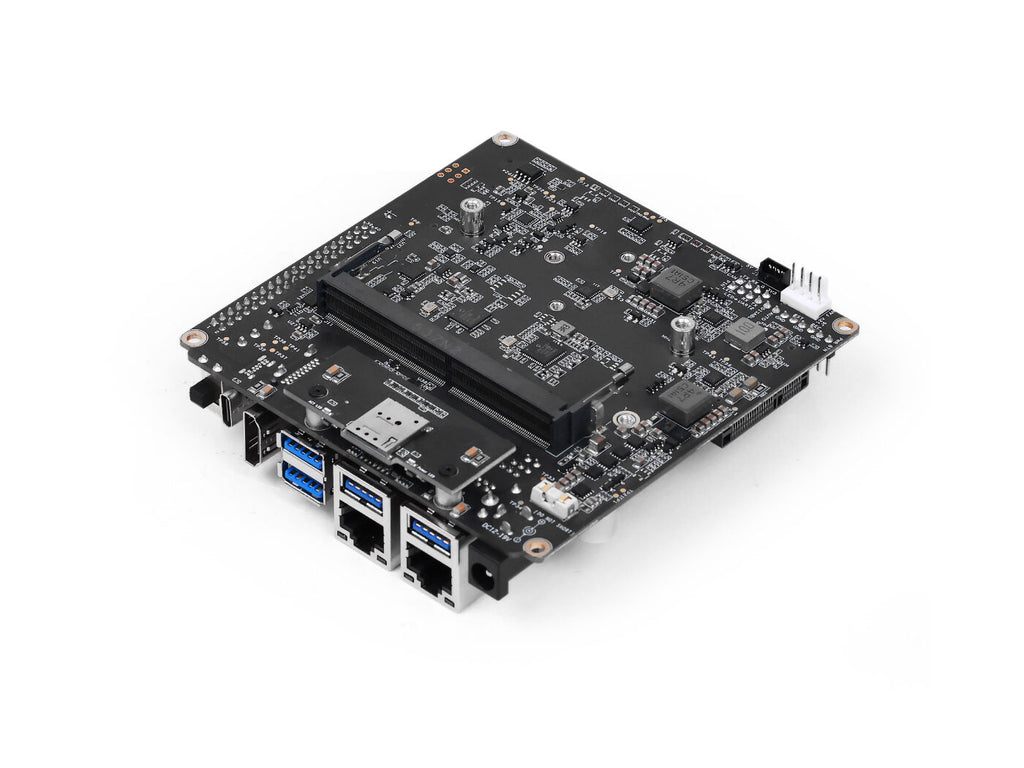

The reComputer Super J401 is a compact, high-performance edge AI carrier board designed for development and prototyping. Compatible with NVIDIA Jetson Orin Nano/Orin NX modules in Super/MAXN mode, it delivers up to 157 TOPS of AI performance. It supports a wide range of operating temperature from -20℃ to 65℃. Built for fast development and production, it features Wi-Fi/BT/LTE wireless communication capability and Ethernet, ensuring seamless integration, ideal for video analysis, multimodal perception, and robotics.
- Super Boost AI Performance: Delivers up to 157 TOPS in MAXN Super Mode, ideal for demanding applications like vision AI, robotics, and generative AI.
- Energy-Efficient Operation: Configurable power modes from 10W to 40W allow for optimized performance and energy consumption.
- Robust Thermal Design: Operates reliably in temperatures from -20°C to 60°C at 40W, and up to 65°C at 25W.
- Rich interfaces: features 2xRJ45, SIM card, 4×USB 3.2, HDMI 2.1, and CAN. Also including M.2 Key E/M, Mini-PCIe, 4xCSI for connectivity and cameras.
- Ready for Deployment: Supports AI frameworks like NVIDIA Isaac, Hugging Face, and ROS2/1, enabling rapid development of various AI applications.
Carrier Board | ||
Storage | 1x M.2 KEY M PCIe for SSD | |
Networking | M.2 KEY E | 1x M.2 Key E for WiFi/Bluetooth module |
Mini PCIe | 1x mini-PCIe for LTE 4G module | |
Ethernet | 2x RJ45 Gigabit Ethernet | |
I/O | USB | 4x USB 3.2 Type-A (5Gbps); 1x USB 2.0 Type-C (Device Mode/Debug); |
Camera | 4x mipi CSI(2-lane 15-Pin) | |
CAN | 1 x CAN(4-Pin Header) | |
Display | 1x HDMI 2.1 | |
Fan | 1x 4-Pin 1.25mm Fan Connector (5V PWM) 1x 4-Pin 2.54mm Fan Connector (12V PWM) | |
Extension Port | 1x 40-Pin extension header 1x 12-Pin control and UART header | |
RTC | 1x RTC 2-pin 1x RTC Socket | |
LED | 2x LED(PWR and ACT) | |
Button | 1x PWR 1x RESET | |
Switch | 1x REC | |
Power | 12-19V 5525 Barrel DC Jack | |

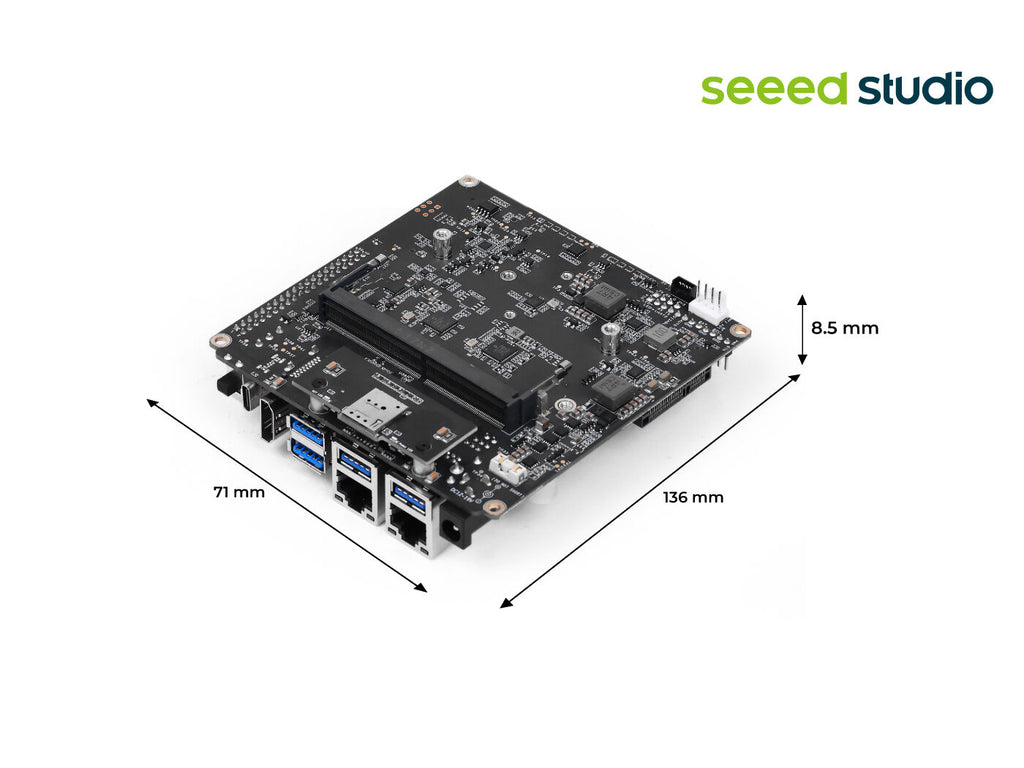

Mechanical | Dimensions (W x D x H) | 71mm x 136mm x 8.5mm |
Weight | 155.8g | |
Installation | Desk(Copper column include) | |
Operating Temperature | -20℃~65℃(25W Mode) -20℃~60℃(MAXN Mode) | |
Warranty | 2 Years | |
Certification | RoHS,REACH,CE,FCC,KC | |
The NVIDIA AI software stack is designed for accelerate AI application and deployment:
Designed for Edge AI Computer Vision Applications:
Jetson Platform Services provide a platform to simplify development, deployment and management of Edge AI applications on NVIDIA Jetson like BEV sensing demo with 4 USB cameras.
Designed for demanding AI applications：
Such as AMR, smart retail, industrial automation, and video surveillance, smart video analysis scenario
User Manual&Datasheet
Schematic
3D File
Seeed Nvidia Jetson Product Catalog
Nvidia Jetson Comparison
Nvidia Jetson Product Comparison
Seeed Nvidia Jetson Success Cases
Seeed Jetson One Pager
Seeed Carrier Board (reComputer Super J401) | x1 |
SIM Board | x1 |
M3 Stud | x5 |
M3 Screw | x5 |
| HSCODE | 8473309000 |
| USHSCODE | 8473309100 |
| UPC | |
| EUHSCODE | 8471707000 |
| COO | CHINA |
