- Rich Interfaces for Production
Equipped with M.2 Key M/E, Mini PCIe, 4x USB 3.2, 4x CSI, 2x 1Gbps Ethernet, 40-Pin GPIO
- MAXN Mode to Boost Your Application
Delivered 34-157 TOPS AI performance, operating temperature from -20℃ to 60℃ at Super/MAXN/40W mode, from -20℃ to 65℃ at 25W mode with full load.
- Immediately Go-to-Market
Pre-installed JetPack 6.2 on-device, support Super MAXN mode, Linux OS BSP ready
- Widely Application and Software support
Supporting LLM & Physical AI frameworks like NVIDIA Isaac, Hugging Face, PyTorch, and ROS2/1, it bridges Edge AI and robotics. With optimized real-time processing, it runs vision AI, transformers, and multimodal models, unlocking advanced AI for edge devices.
Jetson Modules Performance with Super Mode
- Enhanced power management
- Improved Higher Frame Rate Processing
- Reduced inference time
reComputer Super J4011 | reComputer Super J4012 | ||
Applications Processor(AP) | NVIDIA Orin™ NX 8GB | NVIDIA Orin™ NX 16GB | |
AI Performance | Orin NX 8GB – 117 TOPS(MAXN) | Orin NX 16GB – 157 TOPS(MAXN) | |
GPU | 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores | ||
GPU Max Frequency | 1173 MHz | ||
CPU | 6-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3 | 8-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3 | |
CPU Max Frequency | 2.0 GHz | ||
DL Accelerator | 1 x NVDLA v2.0 | 2 x NVDLA v2.0 | |
DL Max Frequency | 1.23 GHz | ||
Vision Accelerator | 1 x PVA v2.0 | ||
Memory | 8GB 128-bit wide LPDDR5 DRAM 102.4 GB/s | 16GB 128-bit wide LPDDR5 DRAM 102.4GB/s | |
Power | 10W - 15W - 25W - 40W | 10W - 15W - 25W -40W | |
Video Encode | 1x 4K60 (H.265) 3x 4K30 (H.265) 6x 1080p60 (H.265) 12x 1080p30 (H.265) | ||
Video Decode | 1x 8K30 (H.265) 2x 4K60 (H.265) 4x 4K30 (H.265) 9x 1080p60 (H.265) 18x 1080p30 (H.265) | ||
CSI camera | Up to 4 cameras (8 via virtual channels***) 8 lanes MIPI CSI-2 D-PHY 2.1 (up to 20Gbps) | ||
Mechanical | 69.6mm x 45mm 260-pin SO-DIMM connector | ||
Carrier Board | ||
Storage | 1x M.2 KEY M PCIe (M.2 NVMe 2242 SSD 128G included) | |
Networking | M.2 KEY E | 1x M.2 Key E for WiFi/Bluetooth module |
Mini PCIe | 1x mini-PCIe for LTE 4G module | |
Ethernet | 2x RJ45 Gigabit Ethernet | |
I/O | USB | 4x USB 3.2 Type-A (5Gbps); 1x USB 2.0 Type-C (Device Mode/Debug); |
Camera | 4x mipi CSI(2-lane 15-Pin) | |
CAN | 1 x CAN(4-Pin Header) | |
Display | 1x HDMI 2.1 | |
Fan | 1x 4-Pin 1.25mm Fan Connector (5V PWM) 1x 4-Pin 2.54mm Fan Connector (12V PWM) | |
Extension Port | 1x 40-Pin extension header 1x 12-Pin control and UART header | |
RTC | 1x RTC 2-pin 1x RTC Socket | |
LED | 2x LED(PWR and ACT) | |
Button | 1x PWR 1x RESET | |
Switch | 1x REC | |
Antenna hole | 4x Antenna Hole | |
Power | 12-19V 5525 Barrel DC Jack | |
Jetpack Version | Jetpack 6.2 | |

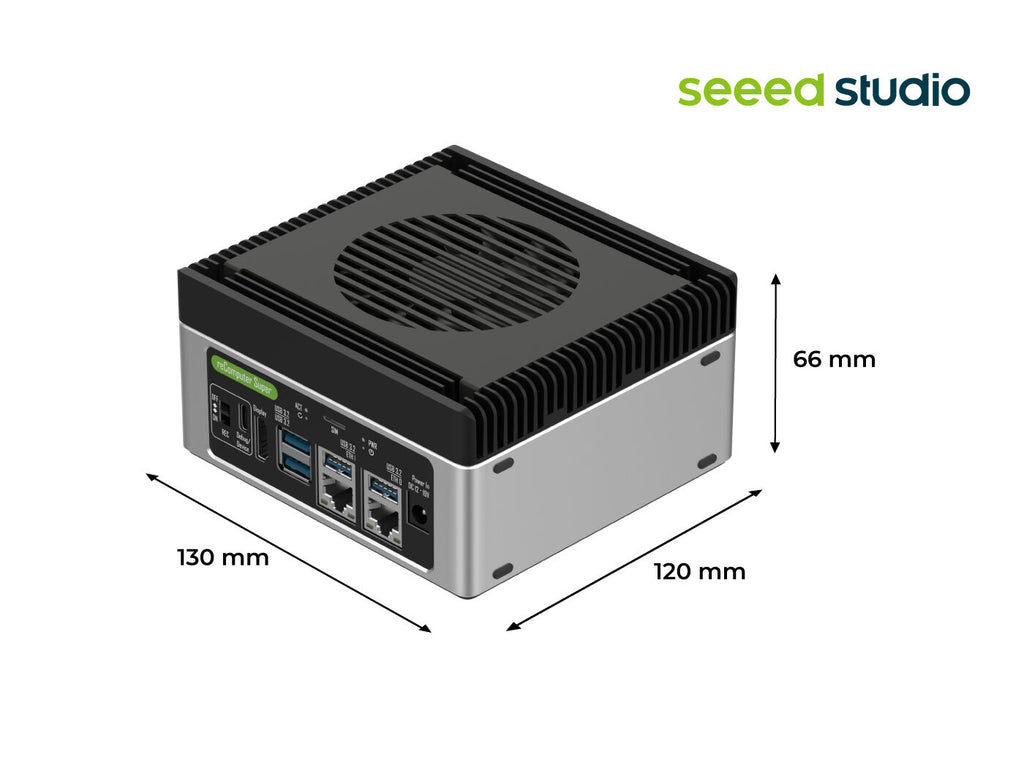

Mechanical | Dimensions (W x D x H) | 130mm x 120mm x 66mm |
Weight | 1110g | |
Installation | Desk, Wall-mounting | |
Operating Temperature | -20℃~65℃(25W Mode) -20℃~60℃(MAXN Mode) | |
Warranty | 2 Years | |
Certification | RoHS,REACH,CE,FCC,UKCA, KC | |
The NVIDIA AI software stack is designed for accelerate AI application and deployment:
Designed for Edge AI Computer Vision Applications:
Jetson Platform Services provide a platform to simplify development, deployment and management of Edge AI applications on NVIDIA Jetson like BEV sensing demo with 4 USB cameras.
Designed for demanding AI applications：
Such as AMR, smart retail, industrial automation, and video surveillance, smart video analysis scenario
We have Jetson-example prepared for you! It offers one-line deploy projects edge AI applications of generative AI including Ollama, Llama3; computer vision including YOLOv8, and others. We have configured all environment for you to provides single command deployment of projects.
Mechanical Document-reComputer Super
Mechanical Document-reComputer Super PCBA
Seeed Nvidia Jetson Product Catalog
Seeed Nvidia Jetson Success Cases
Jetson Orin™ NX 16GB/NX 8GB /Nano 8GB/Nano 4GB module | x 1 |
Seeed Carrier Board (reComputer Super J401) | x 1 |
128GB NVMe SSD | x 1 |
Aluminum Case and Heatsink with Fan | x 1 |
USB Cable; Type A to Type C | x 1 |
User Manual | x 1 |
| HSCODE | 8471504090 |
| USHSCODE | 8517180050 |
| UPC | |
| EUHSCODE | 8471707000 |
| COO | CHINA |
