1. Compact and Efficient Design

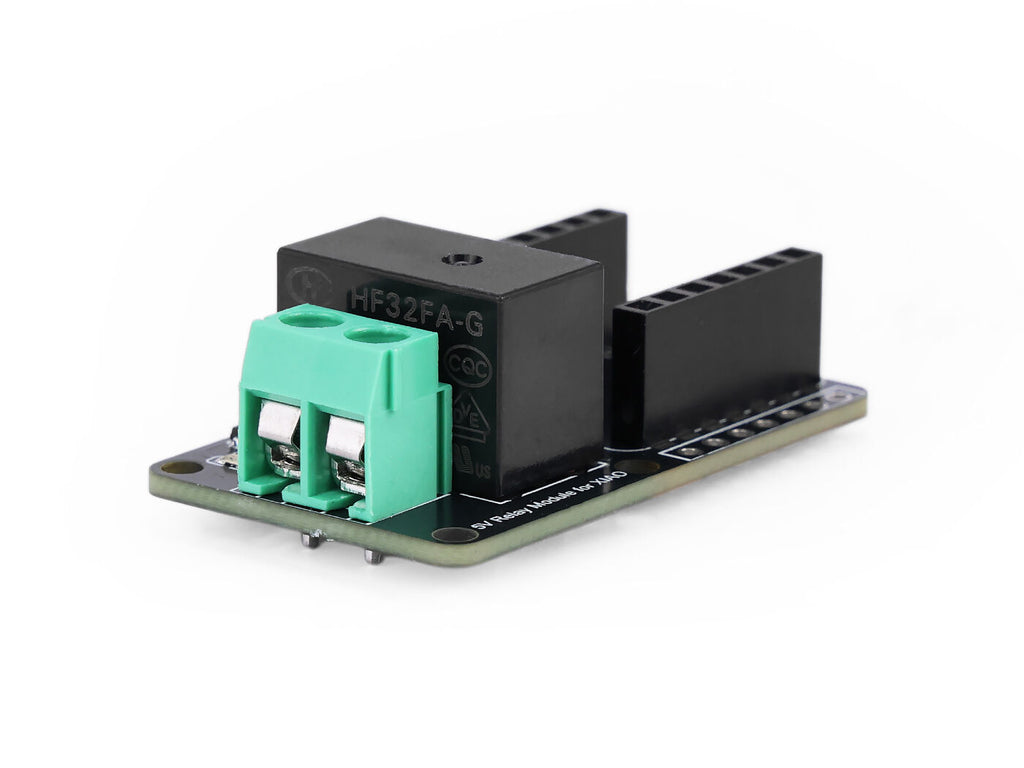

Built with the HF32FA-G relay, this board offers reliable performance in a compact form factor, making it ideal for projects where space is limited.

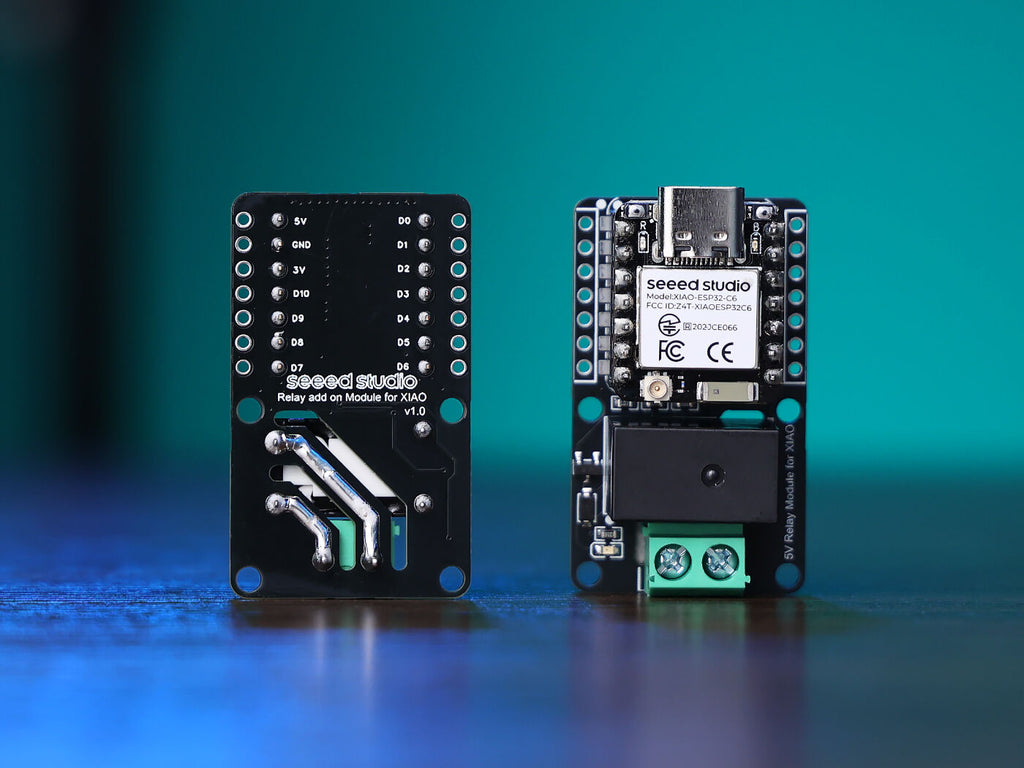

2. Seamless Integration with XIAO Series
Specifically tailored for the Seeed Studio XIAO series, it ensures easy connectivity and smooth operation, saving development time and effort.
3. High Electrical Performance
The HF32FA-G relay supports switching loads up to10A/250VAC, ensuring stable operation in a wide range of applications.
4. Versatile Use Cases
Suitable for various applications, including smart home systems, automation projects, and DIY setups, making it a versatile addition to your toolkit.
Parameter | Value |
Operating Voltage | 5V |
Operating Current | 1A |
Relay Life | 100,000 Cycle |
Max Switching Voltage | 250VAC |
Max Switching Current | 10A |
Electrical endurance | 1.5x10^4 OPS (10A 250VAC, Resistive load, at 85°C, 1s on 9s off) |
Dimension | 21*42mm |
- IoT device integration
- Home automation systems
- DIY electronics projects
- Industrial controls

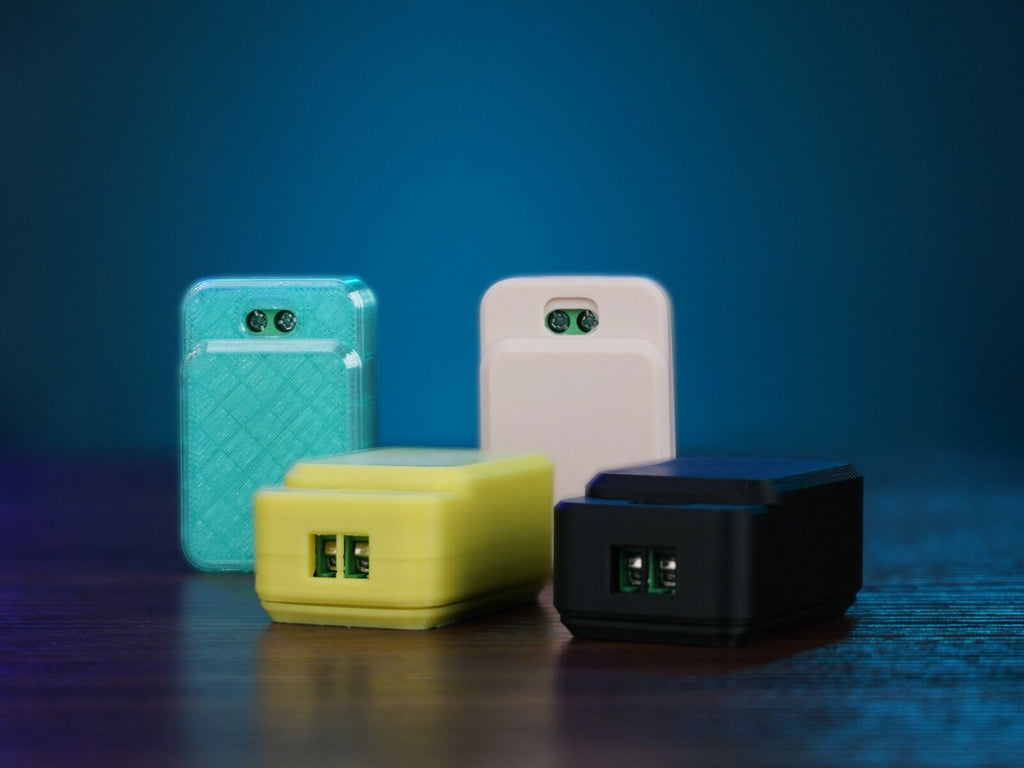

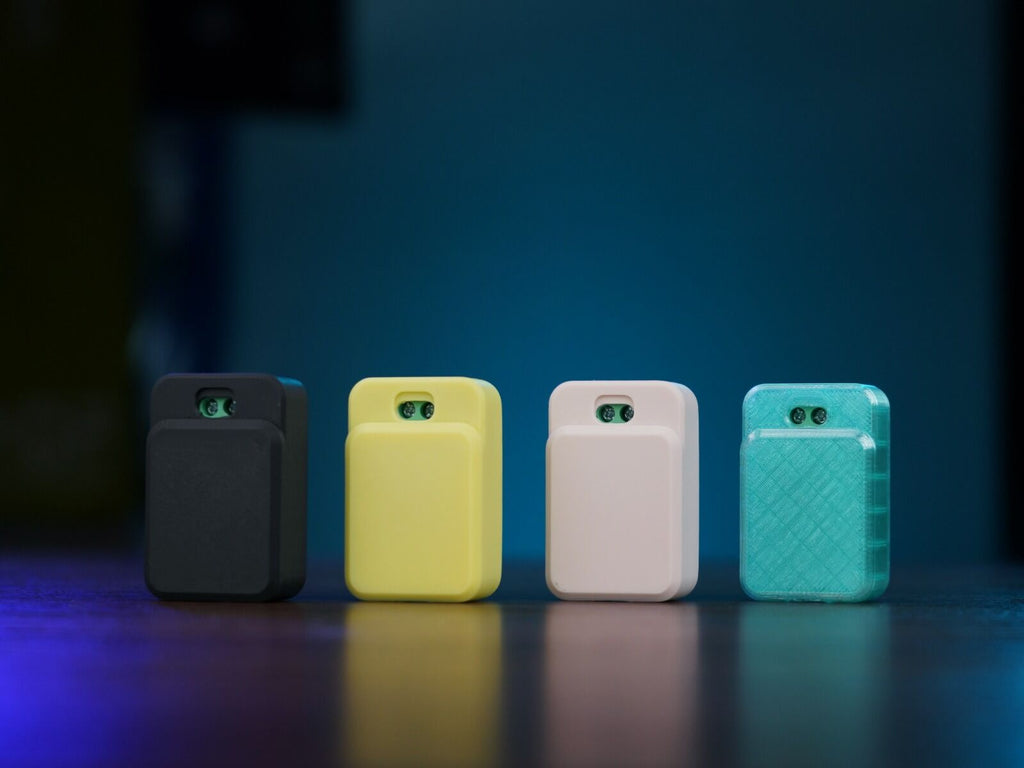

3D-printed Enclosure File for your unique customization
Relay add on Module | x1 |
| HSCODE | 8536490090 |
| USHSCODE | 8536410030 |
| UPC | |
| EUHSCODE | 8531202090 |
| COO | CHINA |
