The Maqueen Plus V3 is a powerful robot, but accidents can happen in the classroom or during intense project sessions. Contaminants like dust, hair, or particles can jam the gears, or rough handling might damage a motor.
But a broken motor doesn't mean the end of your robot! This official N20 motor accessory kit is designed for a quick and simple repair, allowing you to restore your Maqueen Plus V3 to full functionality in minutes.
Please Note: This is a replacement part for the Maqueen Plus V3 (compatible with models MBT0050-AA and MBT0050-18650).
The new Maqueen Plus V3 educational robot comes complete with the two motors required for operation. You do not need to purchase this kit when buying a new Maqueen Plus V3.
Each kit contains one motor and the necessary mounting hardware. If both motors on your robot are damaged, you will need to purchase two kits.
Features:
- All-in-One Solution: Includes one motor, a mounting bracket, screws, and a connecting wire—everything needed for a single motor replacement.
- Quick & Easy Repair: The motor connects via a PH2.0 connector for plug-and-play installation. No soldering is required. Simply swap the old motor out and plug the new one in.
- Official Accessory: Guarantees perfect compatibility and performance, matching the original motor specifications of the Maqueen Plus V3.
- Integrated Encoder: The motor comes with a pre-installed Hall magnetic ring and PCB, enabling precise closed-loop control over speed and position.
Specification:
- Interface: 2P PH2.0
- Screw: M2×8 Cross-Recessed Combination Screw
Motor Details:

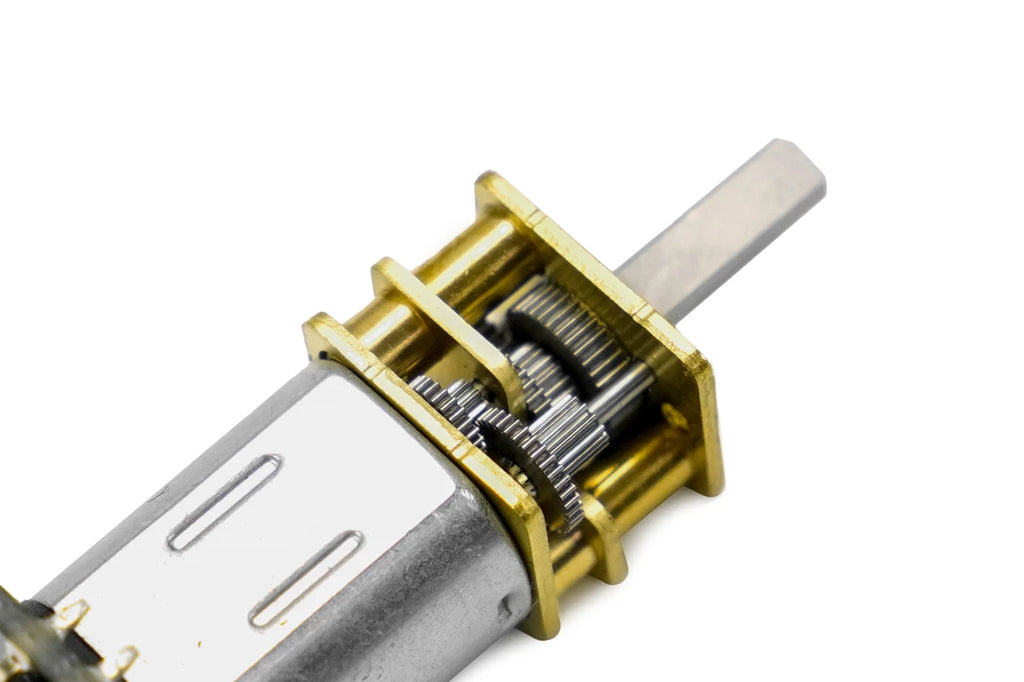

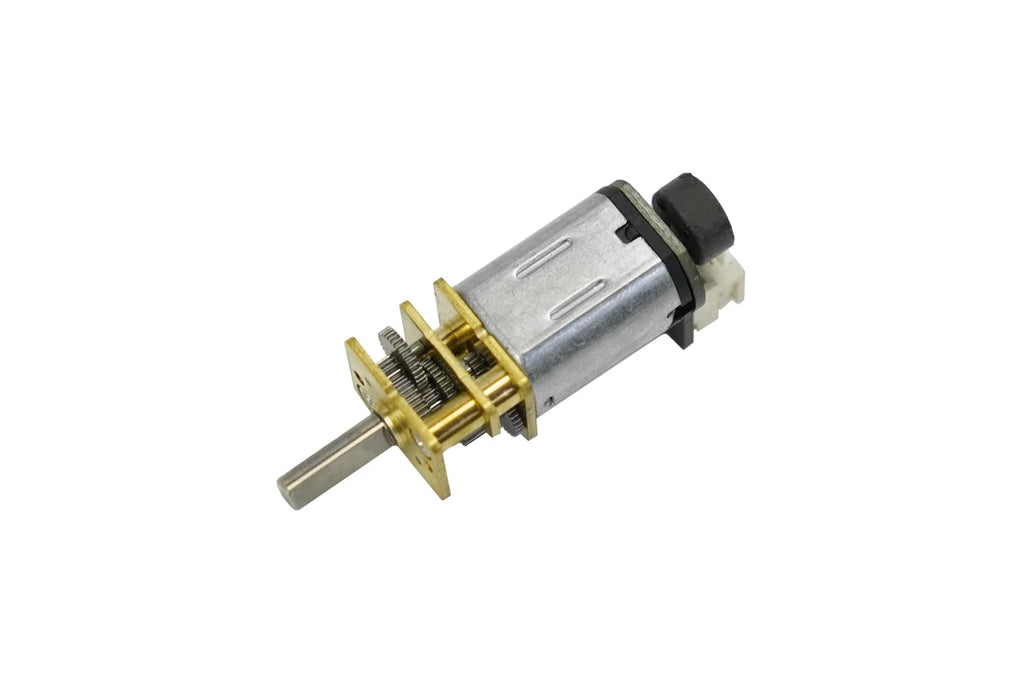

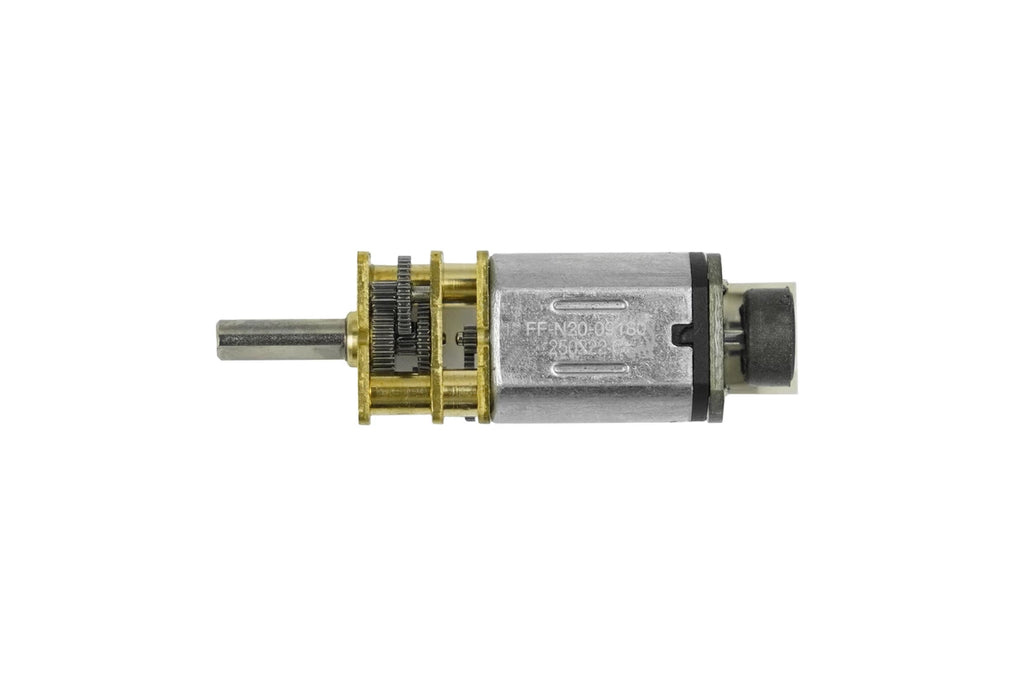

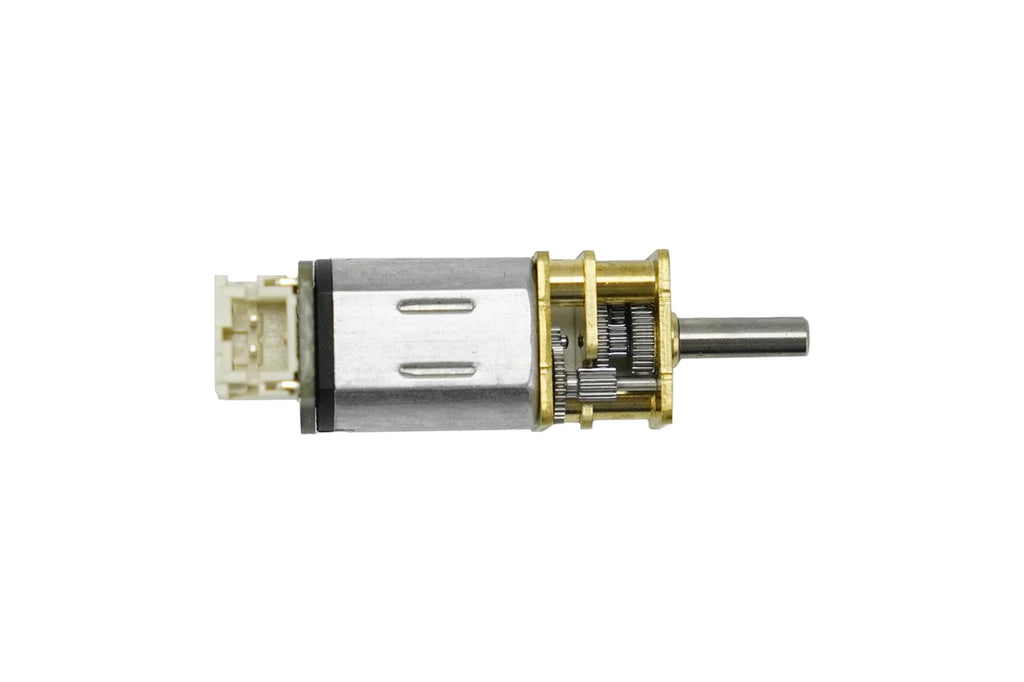

- Model: N20 (with rear output shaft)
- Rated Voltage: 6V DC
- Motor Speed: 20000 RPM (at Rated Voltage)
- Gear Reduction Ratio: 1:75 (Mechanical Reduction)
- Output Shaft Speed: 266 RPM (at Rated Voltage)
- Rotation Direction: CCW (Counterclockwise, Viewed from Output Shaft End)
Component Materials:
- Motor Mount: ABS (Acrylonitrile Butadiene Styrene)
- Connecting Wire: 2P PH2.0 Dual-Ended Cable
Documents:

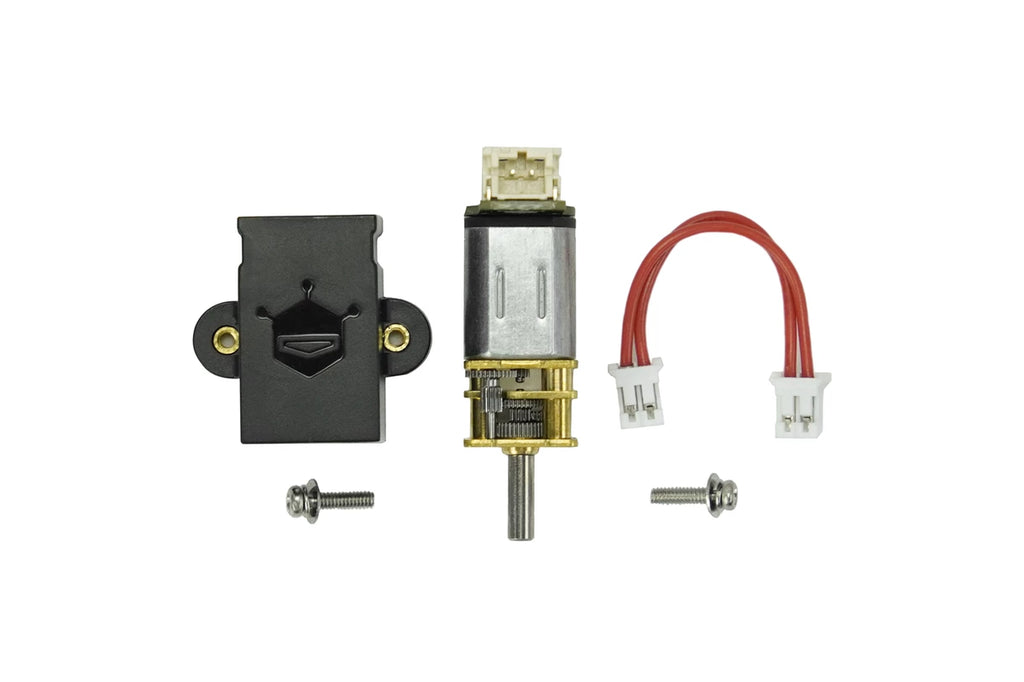

Product Includes:
- N20 Metal Motor (with pre-installed Hall magnetic ring and PCB) ×1
- Motor Mounting Bracket ×1
- Mounting Screws ×2
- Motor Connecting Wire ×1
