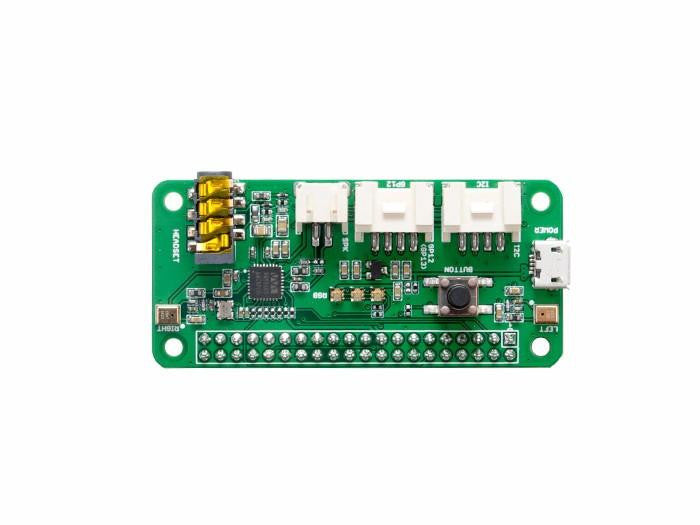

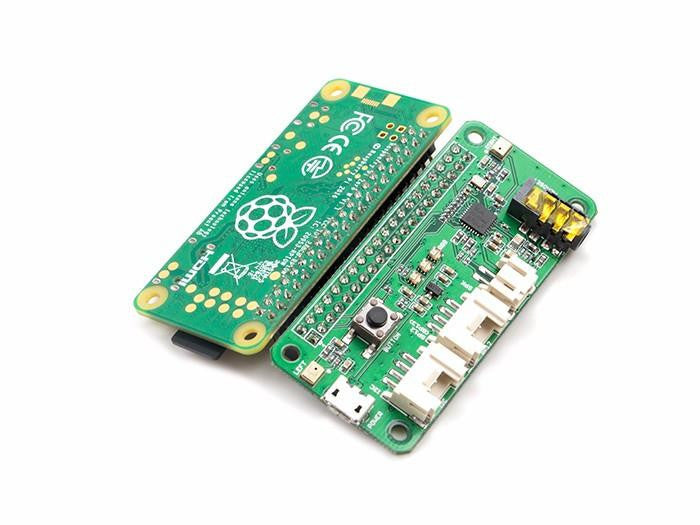

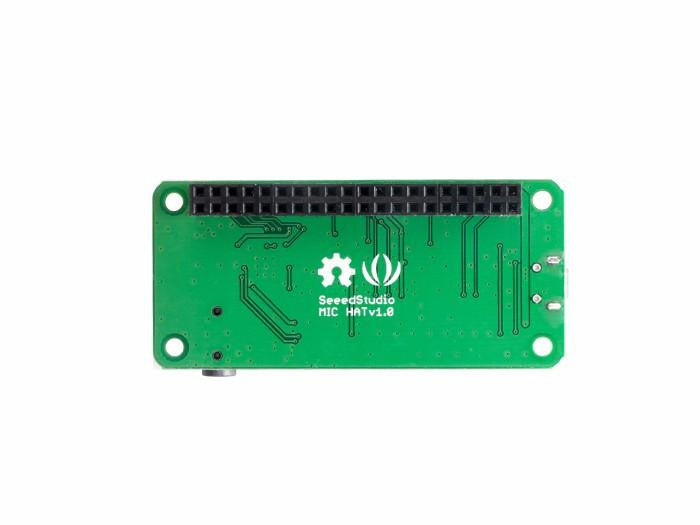

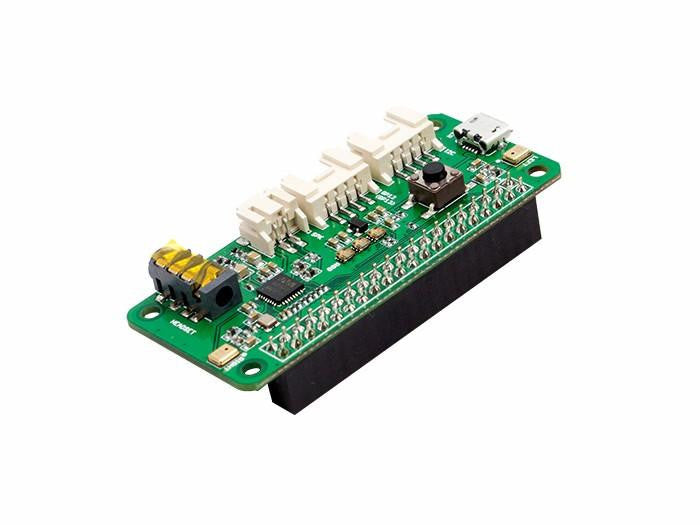

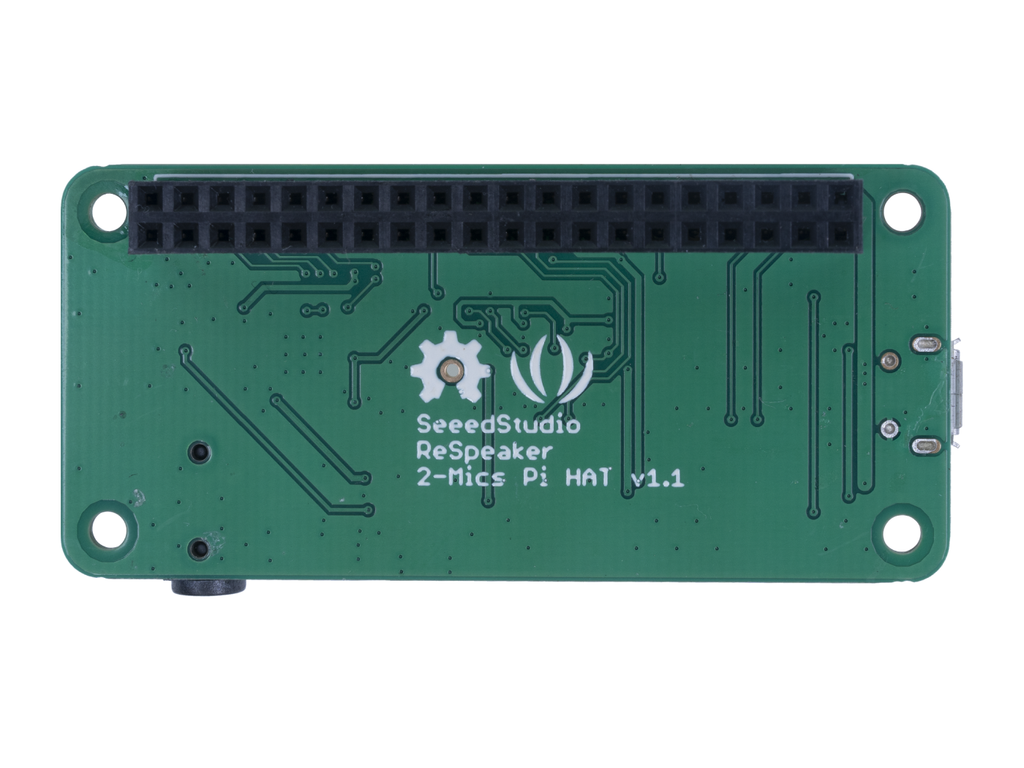

ReSpeaker 2-Mics Pi HAT is a dual-microphone expansion board for Raspberry Pi designed for AI and voice applications. You can build a more powerful and flexible voice product that integrates Amazon Alexa Voice Service, Google Assistant, and so on.
Note: The reSpeaker 2-Mics Pi HAT has been upgraded to version 2.0. The codec chip has been replaced from WM8960 to TLV320AIC3104, enabling support for Raspberry Pi 5 and expanding the sampling rate range from 8 kHz to 96 kHz.
- Voice User Interface for Raspberry Pi Series: Placed by 4 analogue microphones, which come with the Voice Interaction algorithms of VAD(Voice Activity Detection), DOA(Direction of Arrival), KWS(Key Word Spotting)
- TLV320AIC3104 Audio Codec: Low power, high-quality stereo Codec designed for portable digital audio applications
- Controllable Peripherals: Provide 3 programable APA102 RGB LEDs and 1 User Button for attached Speech Recognition usage

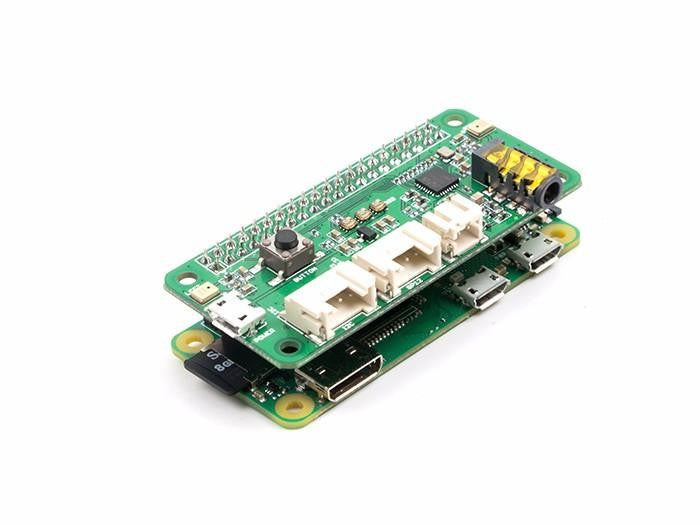

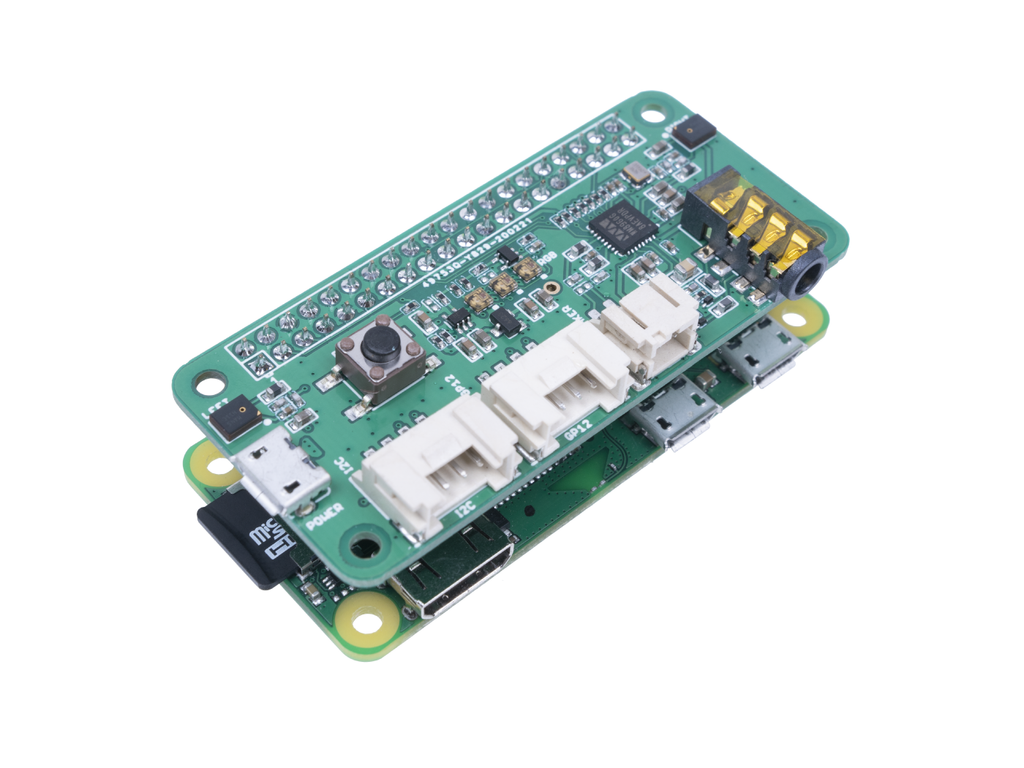

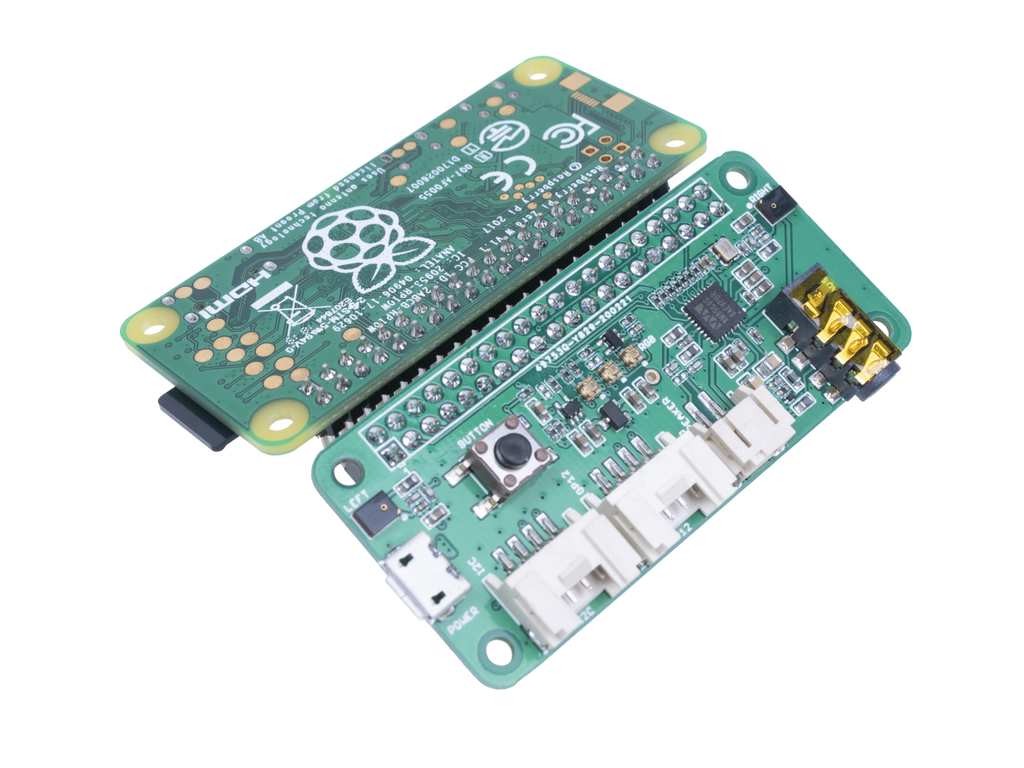

- Easy Assembly: Simply pop up on the Raspberry Pi to use

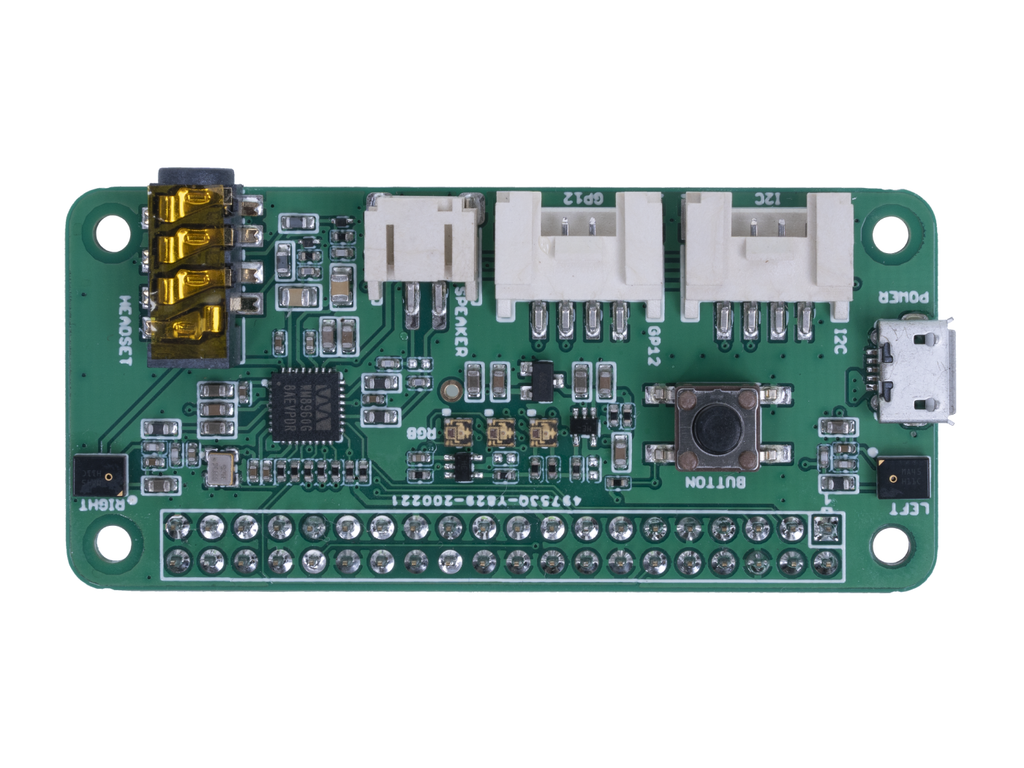

The reSpeaker 2-Mics Pi HAT is the voice user interface for Raspberry Pi Series, which has been equipped 2 analogue microphones and TLV320AIC3104 Audio Codec for high-definition voice capture. Attach with NLU software algorithms and noise reduction algorithms, it has the abilities of Voice Activity Detection, Direction of Arrival and Key Word Spotting, widely used in Voice Interaction applications.
How does reSpeaker work?
There are analogue microphones mounted on each corner of the square reSpeaker, to receive audio data around then transmit them to the codec. The codec integrates synchronized ADCs with mic boost amplifier, to deliver valid channel data to the Raspberry Pi/ Pi Zero, where it transits them over I2S ports by standard I2S or PCM format, along with a single port by TDM format.
The NLU algorithms will be applied to the Raspberry Pi once the audio data has arrived. The main functions include Voice Activity Detection(VAD), Direction of Arrival(DOA), and Key Word Spotting(WKS), suitable for various Voice Interaction applications such as voice-based remote control cars, voice user interface, keywords wake up and so on.
Since the audio data transmitted may contain the noise as well, the reSpeaker comes with the functions of Auto Echo Cancellation (AEC), Beamforming, Webrtc Noise Suppression (NS), and Automatic Gain Control (AGC) to reduce noise and perform better audio data to the Raspberry Pi.
Specification |
Details |
MIC |
2 analog microphones |
LED |
3 APA102 RGB LEDs |
Raspberry Pi 40-Pin Headers | Support Raspberry Pi5, Raspberry Pi Zero, Raspberry Pi 1B+/2B/3B/3B+/4B |
TLV320AIC3104 codec |
Low power, high quality stereo Codec designed for portable digital audio applications |
Software Algorithm |
VAD(Voice Activity Detection), DOA(Direction of Arrival) and KWS(Keyword Search) |
User button |
1 programmable button |
Voice Capture Distance |
3 meters radius voice capture |
Battery |
Exclude |

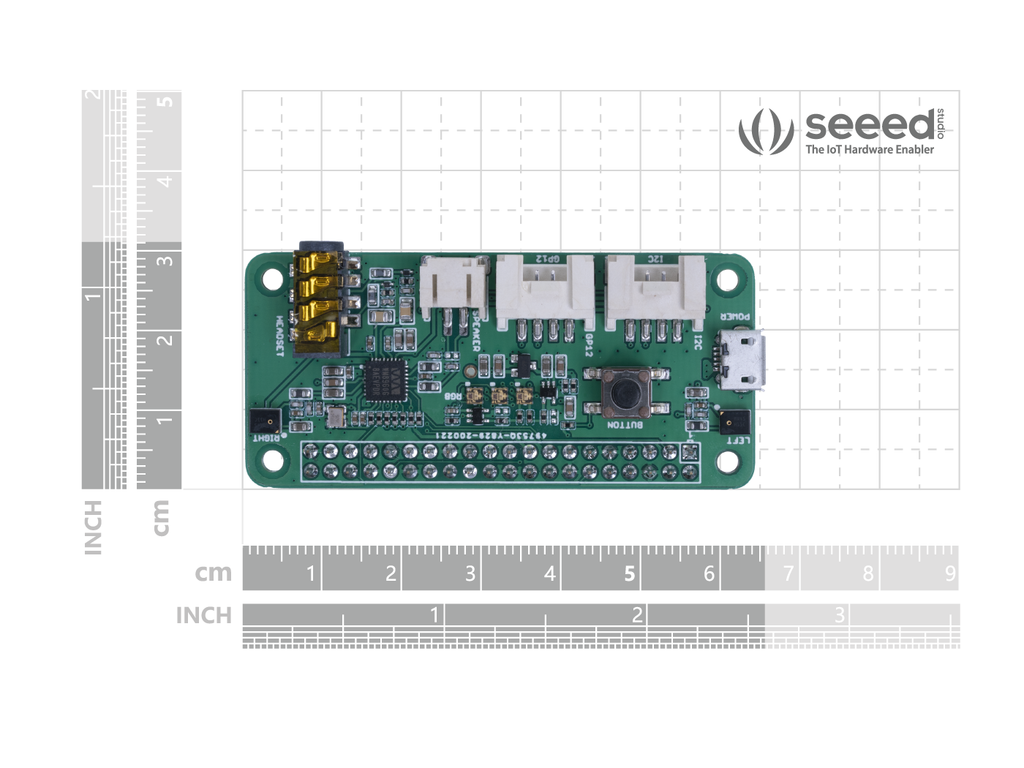

Dimensions |
65mm x 30mm x 15mm |
Weight |
G.W 33g |
- Voice Interaction Learning
- Secondary software Development
- Voice-based remote control cars
- Reviews
- Questions
AustraliaGreat little array mic
Perfect for an offline and private voice assistant project
Australiare speaker 2
The re speaker 2 was a great little board for capturing voice commands and delivering the sound through the on board 3.5 jack. Simple to install and setup and worked better than a different Phat i tried.Paktronics are now my new favourite electronics supplier, they were quick and easy to deal with
AustraliaReSpeaker 2-Mics Pi HAT
I was impressed by the overall appearance and finish of the board, it is well made, good soldering and very compact. I am having some issues getting it to work correctly with Google Assistant SDK, however I do not believe this to be an issue with the board, as it works perfectly when testing with aplay / arecord. Seeed support have been responsive via email, and also on their github with the drivers, however time will tell if this is a good choice for google assistant!
