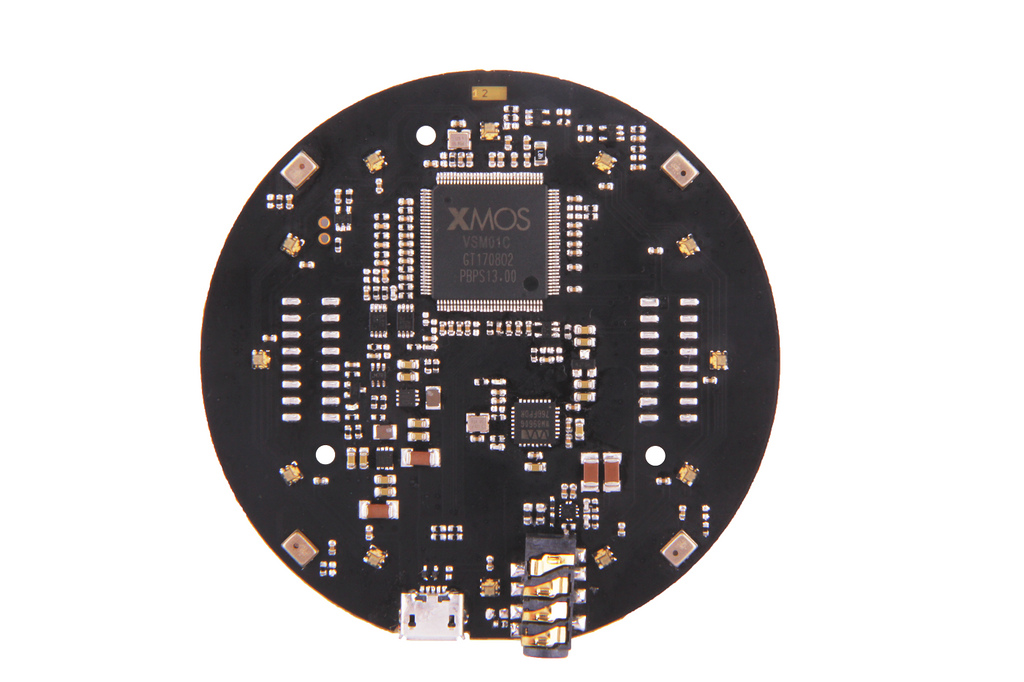

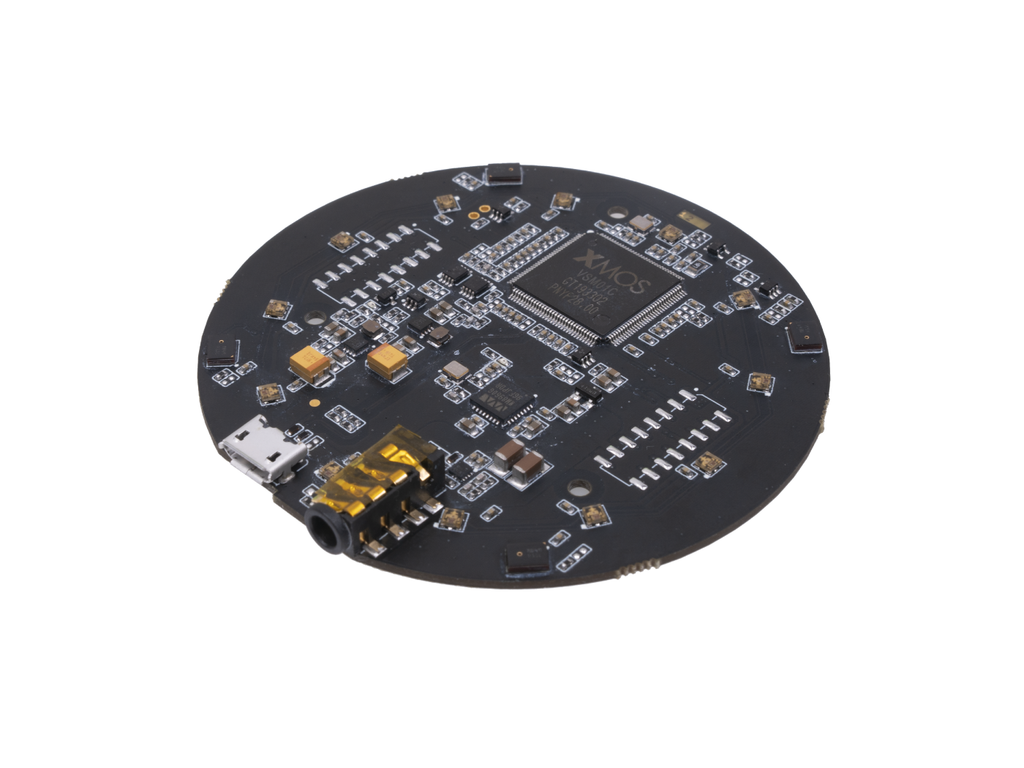

This circular 4-mic array is a professional solution for adding voice interaction to projects. Powered by XMOS XVF3000 with built-in AI sound processing algorithms, it clearly picks up voices from any direction up to 5 meters away. Features 360° far-field voice pickup (up to 5m), AEC, AGC, DoA, beamforming, and noise suppression.
Product Upgrade: Check out the new [reSpeaker XVF3800] with improved far-field voice capture and advanced audio processing at a LOWER price!
- Far-field voice capture
- Support USB Audio Class 1.0 (UAC 1.0)
- Four microphones array
- 12 programmable RGB LED indicators
- Speech algorithms and features
- Voice Activity Detection
- Direction of Arrival
- Beamforming
- Noise Suppression
- De-reverberation
- Acoustic Echo Cancellation
Dimensions | 70mm x70mm x13.3mm |
Weight | G.W 70g |
Sensitivity | -26 dBFS (Omnidirectional) |
Acoustic overload point | 120 dBSPL |
SNR | 61 dB |
Power Supply | 5V DC from Micro USB or expansion header |
Power consumption | 5V, 180mA with led on and 170mA with led off |
Max Sample Rate | 16Khz |
Hardware Overview
Pin_Map
Dimension
- Speech algorithms and features
- USB Voice Capture
- Smart Speaker
- Intelligent Voice Assistant Systems
- Voice Recorders
- Voice Conferencing System
- Meeting Communicating Equipment
- Voice Interacting Robot
- Car Voice Assistant
- Other Voice Interface Scenarios
| HSCODE | 8518900090 |
| USHSCODE | 8518902000 |
| UPC | 841454120278 |
| EUHSCODE | 8517180000 |
| COO | CHINA |
reSpeaker Mic Array v3.0 | x1 |
