- Rugged design for harsh working environment: IP65 front panel, -10°C~50°C operating temperature
- Open-source design in software and hardware: Powered by Raspberry Pi CM4, easy for customization or derivatives with the PCIe extensions design (flexible for NVME SSD, Dual 1000M Ethernet, Dual USB 3.0, COM Port RS485/232, and more customizations)
- Cost-effective Device Master: HMI, PLC, Panel PC and gateway all-in-one. Perfect for the distributed hub devices
- Low code programming for event-driven applications: Natively integrated Node-RED for flow-based editing and one-click deployment, compatible with all software runs on Raspberry Pi
- Hybrid connectivity: Support 4G LTE, LoRaWAN®, Wi-Fi, BLE, RS485/RS232, CAN bus, 1000M Ethernet, USB, HDMI
- Product Warranty: Two-year warranty
Note:
| Basic | ||
| CPU | CM4 Quad-core Cortex-A72@ 1.5GHz | |
| Memory | 8GB | |
| Storage | 64GB eMMCM.2 NVMe SSD Slot 2280-M Key (optional) | |
| OS Support | RaspbianSenseCraft Edge OS | |
| Display | ||
| Size | 10.1'' | |
| Max. Resolution | 1280 x 800 | |
| Max. Colors | 16.7M (8-bit) | |
| Luminance (nit) | 400 | |
| Viewing Angle (H/V°) | 170/170 | |
| Backlight Life (hrs) | 30000 | |
| Touch Type | 10-point Capacitive | |
| Pencil Hardness | 7H | |
| Video&Audio | ||
| Video | HDMI2.0 | |
| Audio | 2 x MicrophoneBuzzer3.5mm Audio Jack | |
| Camera | CSI (optional) | |

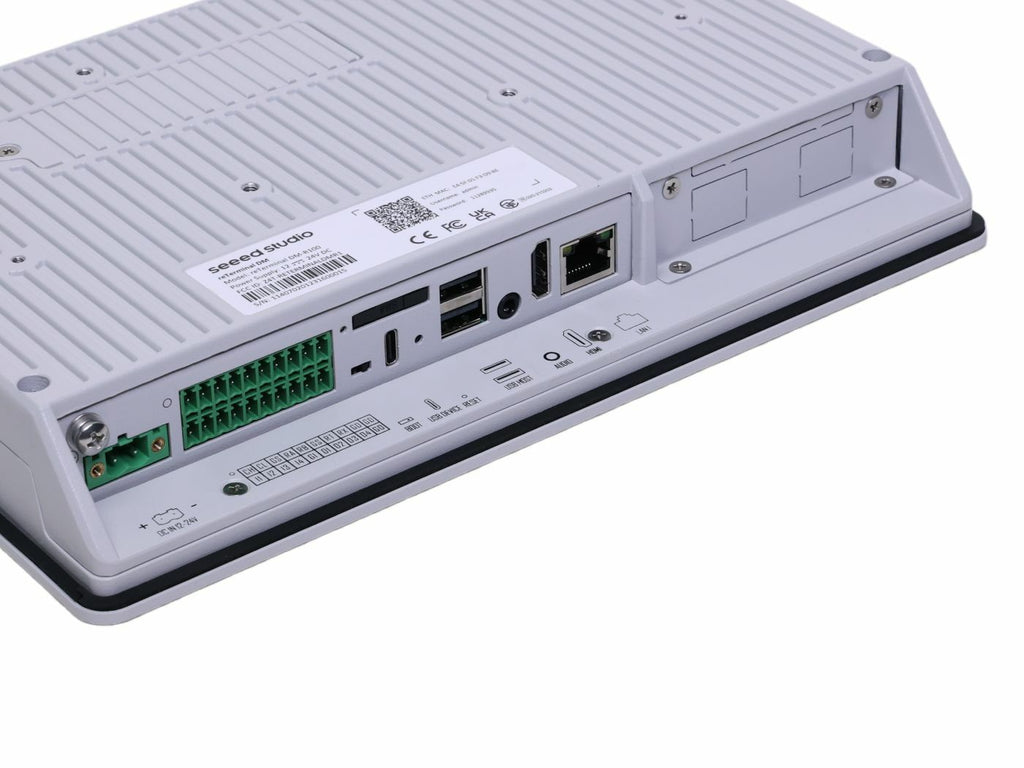

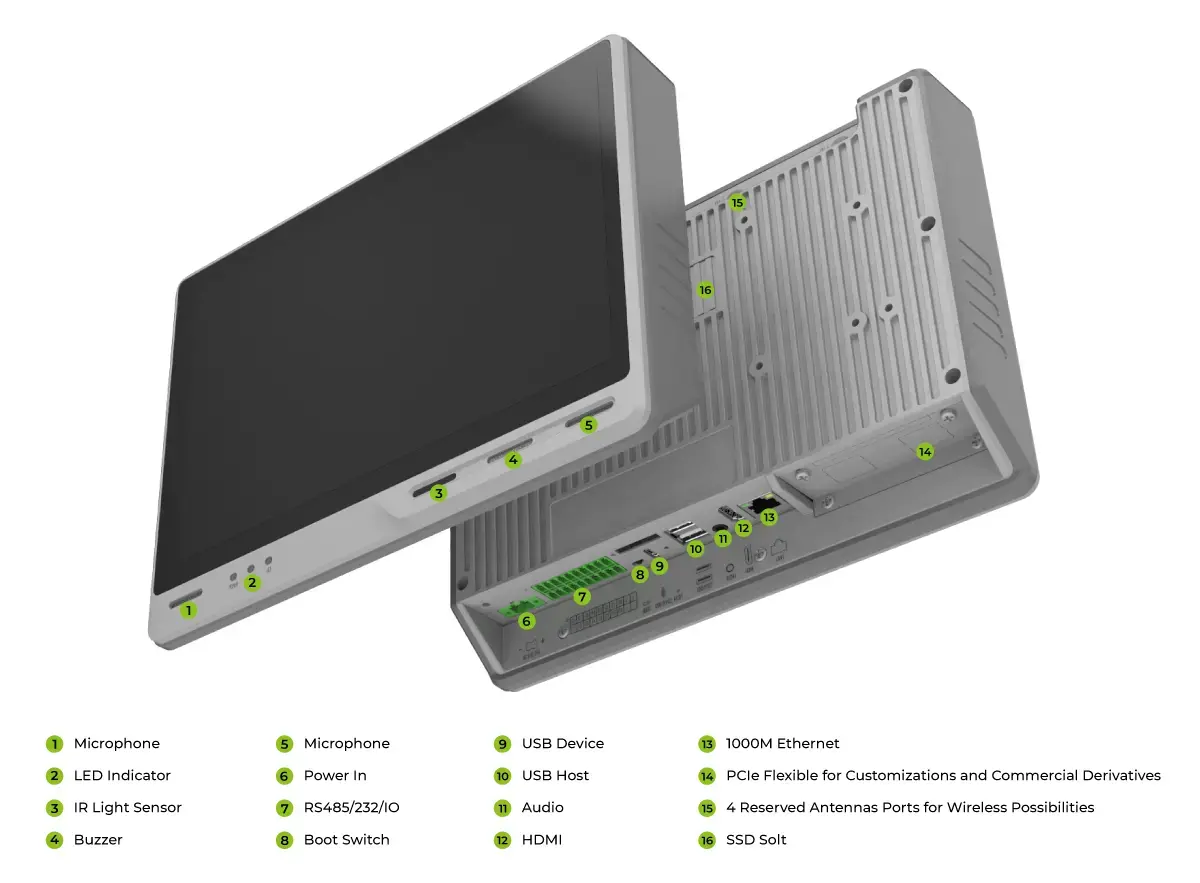

| Interfaces | ||
| Ethernet | 1 x 10/100/1000 Mbps2 x 10/100/1000 Mbps (optional) | |
| USB | 2 x USB-A 2.0 Host | |
| RS485 | 1 x RS485 > Terminal Block1 xRS485 > DB9 (optional) | |
| RS232 | 1 x RS232 > Terminal Block1 x RS232 > DB9 (optional) | |
| CAN | 1 x CAN-BUS > Terminal Block | |
| DI | 4 x DI > Terminal Block | |
| DO | 4 x DO > Terminal Block | |
| 40pin GPIO | Inside | |

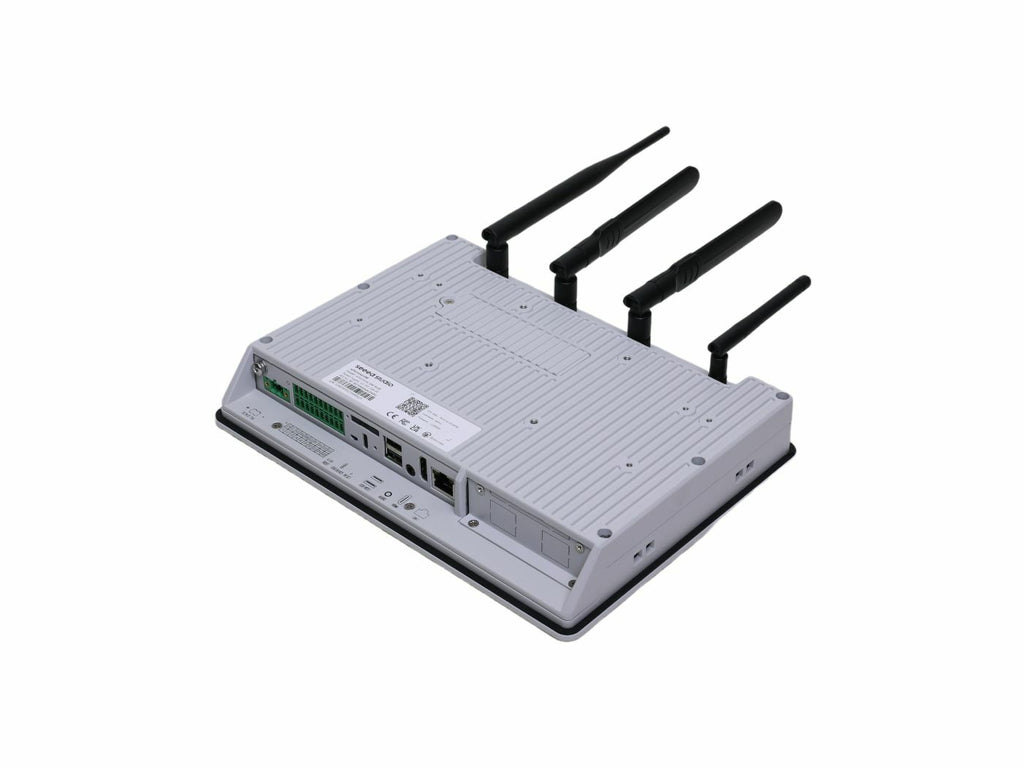

| Wireless Communication | ||
| Wi-Fi | On-chip Wi-Fi | |
| BLE | On-chip BLE | |
| LoRa® | Mini-PCIe for LoRaWAN® (optional) | |
| Cellular | Mini-PCIe for 4G (optional) | |
| Power | ||
| Input | 2-pin Terminal Block | |
| PoE | 12.95W PoE (optional) | |
| Power Range | 12~24V DC | |
| Power Consumption | 6W Typ.9W Max. | |
| Power Switch | NO | |
| Reboot Switch | YES | |
| Environment | ||
| Ingress Protection | IP65 Front Panel | |
| Operating Temperature | -10~50 °C | |
| Storage Temperature | -20~70 °C | |
| Humidity (Operating) | 10~95% RH | |
| Mechanical | ||

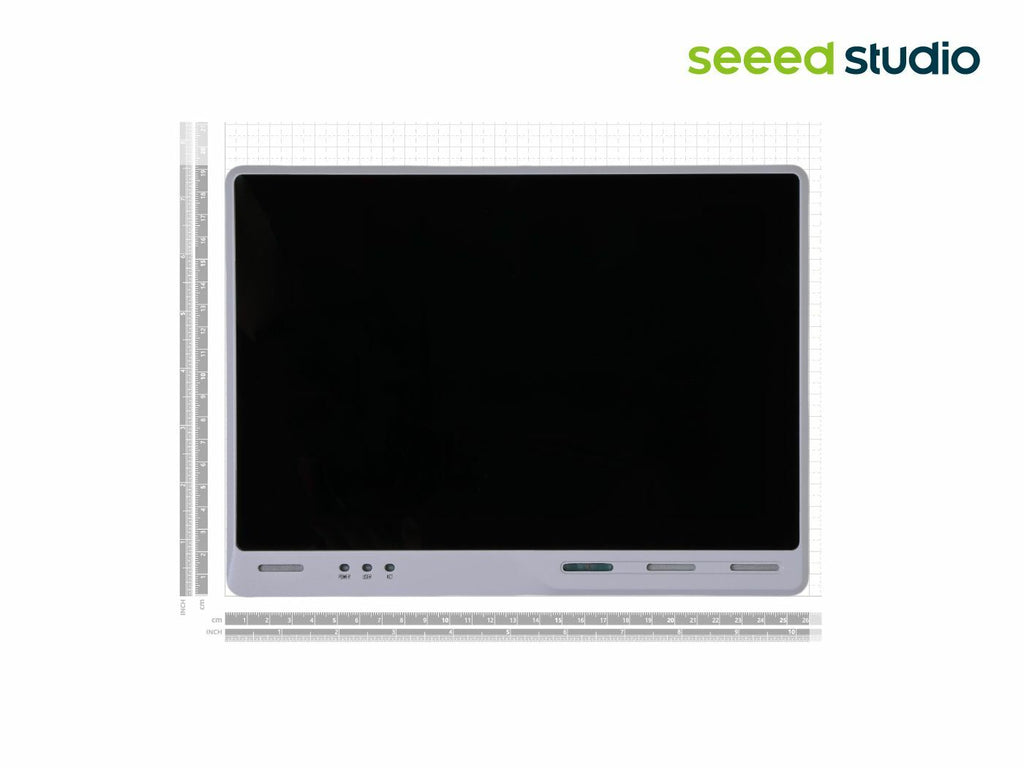

| Dimension (W x H x D) | 259.4 x 191 x 42.2 mm | |
| Enclosure | Die-cast Aluminum Alloy | |

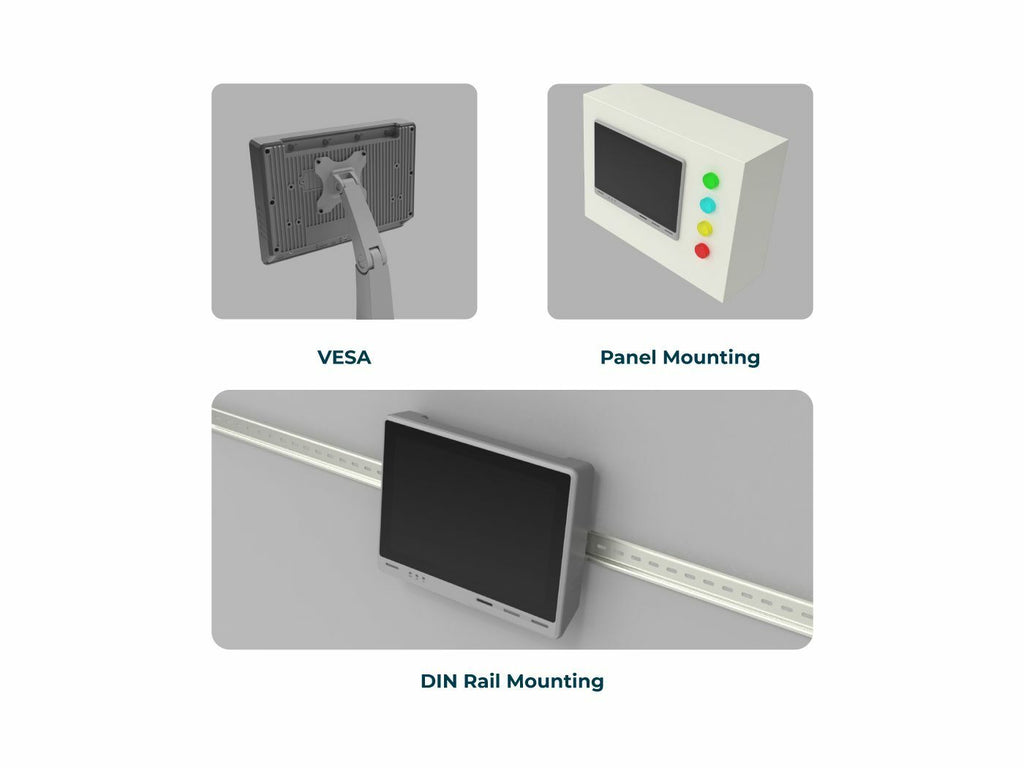

| Mounting | Panel, VESA, DIN-rail | |
| Weight (Net) | 1.8Kg | |
| Vibration Resistance | 5 Grms random vibration (5 ~ 500Hz) during operation, IEC60068-2-64 | |
| Shock Resistance | Operating 50 G peak( 11ms duration), IEC 60068-2-27 | |
| Certification | ||
| CE, FCC, UCKA, RoHS, TELEC, REACH | ||
| EMC | ||
| ESD | EN61000-4-2, Level 3 | |
| EFT | EN61000-4-4, Level 2 | |
| Surge | EN61000-4-5, Level 2 | |
| Others | ||
| RTC | High Accuracy RTC (with a CR2032 battery) | |
| Hardware WatchDog | 1~255s | |
| Security | ATECC608A | |
| Warranty | 2 Years | |
| Heat Dissipation | Fanless | |

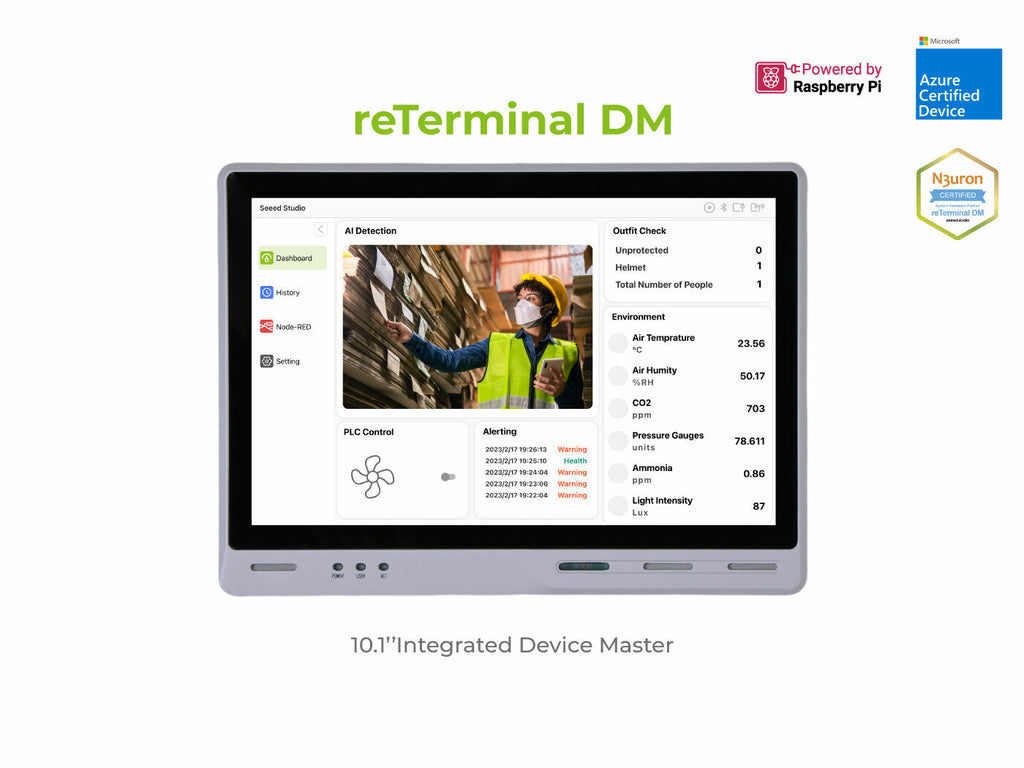

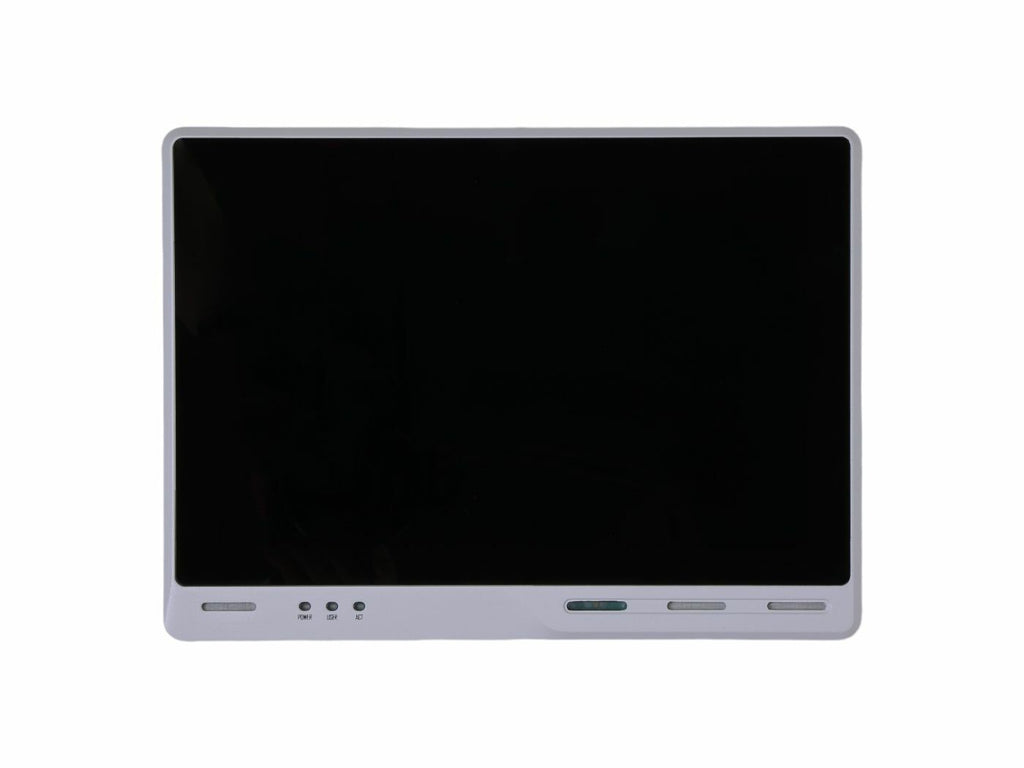

reTerminal DM is an integrated device master that can function as an HMI/PLC/Gateway/Panel PC all-in-one device, working in the edge layer of the IOT architecture, unifying data flow, and managing onsite devices, reducing the big gap between legacy systems and modern IT infrastructures in various application scenarios.
The reTerminal DM HMI presents a versatile solution applicable across numerous industries. Seamlessly integrating cutting-edge technologies, it streamlines operations and enhances efficiency. Running on the Home Assistant platform and employing Computing Vision, Cloud solutions, and platforms like N3uron, Ignition Edge, and Node-RED, along with our proprietary platform, Sensecraft Edge OS, it opens up exciting possibilities for developers and enthusiasts alike.
- Energy Management: Monitor grids, monitor and maintain solar panels.
- Building Management: Central control panel for BAS, individual room control panels.
- MedTech: Medical device control panel, patient monitoring station.
- Construction: BIM, Monitor sites, control heavy machinery.
- Transportation: Monitor vehicle health, control ticketing systems (buses, trains).
- Agriculture: Control irrigation systems, monitor greenhouse conditions.
- Retail: Display digital signage, control self-checkout kiosks.
- Logistics: Track inventory movement, manage warehouse operations.
- Water Management: Monitor water treatment plants, control water distribution.
Seeed's Raspberry Pi-based Success Cases
reterminal DM Vibration and Shock Test Report
reTerminal DM Structural Design File.stp

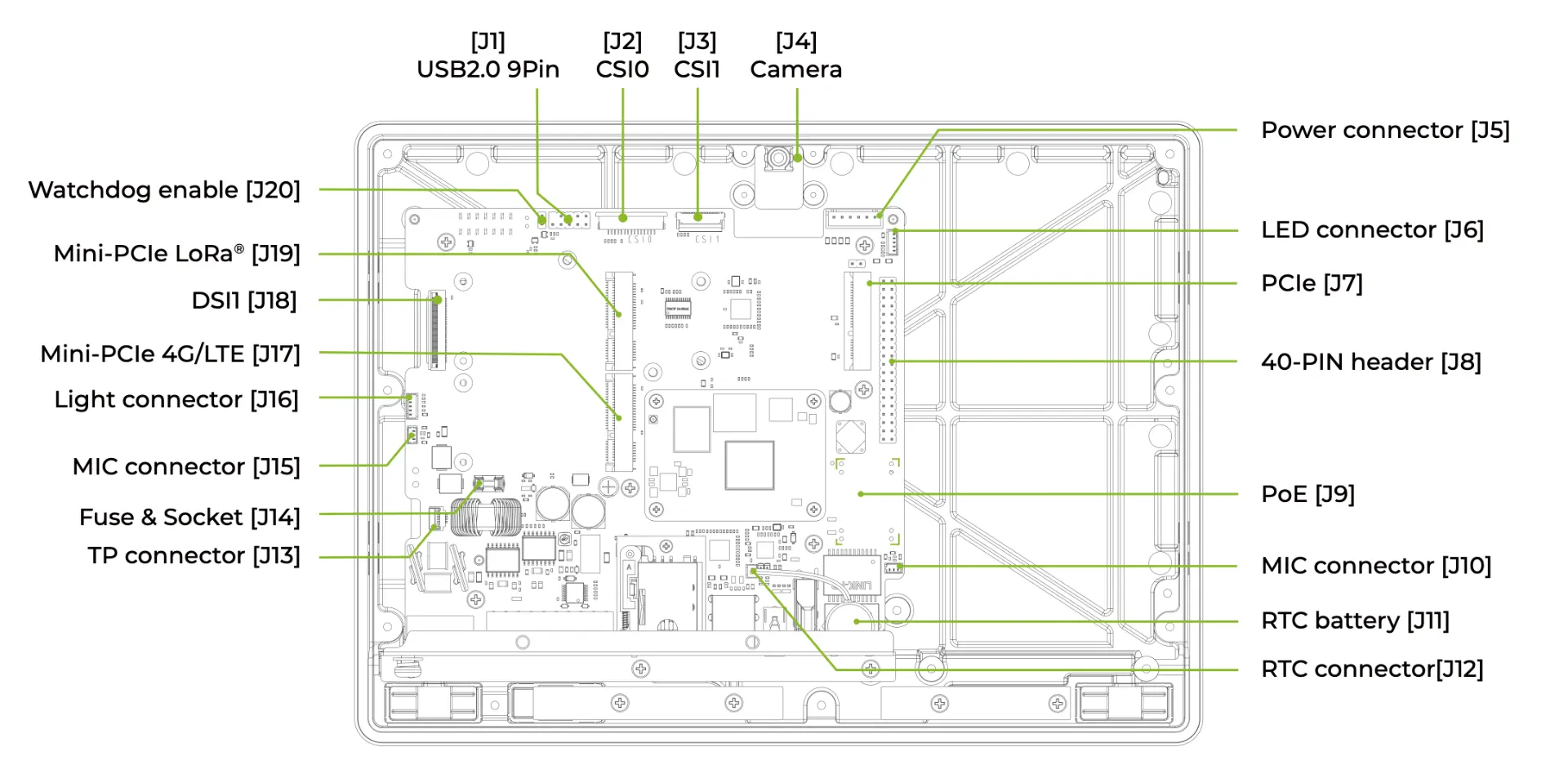

reTerminal DM Schematic Design & PCB Design & Gerber Files
| reTerminal DM Panel PC | x 1 |
| 20-pin Terminal Block Connector(Male) | x 1 |
| 2-pin Power Female Jack to Screw Terminal Adapter | x 1 |
| Screw Pack | x 1 |
| Fuse | x 1 |
| User Guide | x 1 |
| Wi-Fi/BLE feeder cable(installed) | x 1 |
| Wi-Fi/BLE Antenna | x 1 |
| HSCODE | 8471419000 |
| USHSCODE | 8517180050 |
| UPC | |
| EUHSCODE | 8471707000 |
| COO |
