reTerminal E1003 ePaper Display

Note:

• The reTerminal E Series Display supports SenseCraft HMI by default firmware. The current V1.1.2 version firmware now supports touch functionality.
• The touch-related libraries will be open-sourced on GitHub in the future, allowing users to customize this display as a smart home control panel and build more personalized applications.
• Wide Range of Applications: Supports high-speed refresh for low-latency updates with a TTL parallel interface (multi-line, high-throughput) — making it an ideal choice for smart home control panels.

⭐：The SenseCraft HMI canvas will gradually support touch interaction settings in the future. Stay tuned.

• High-Resolution, 16-Level Grayscale Monochrome ePaper Display

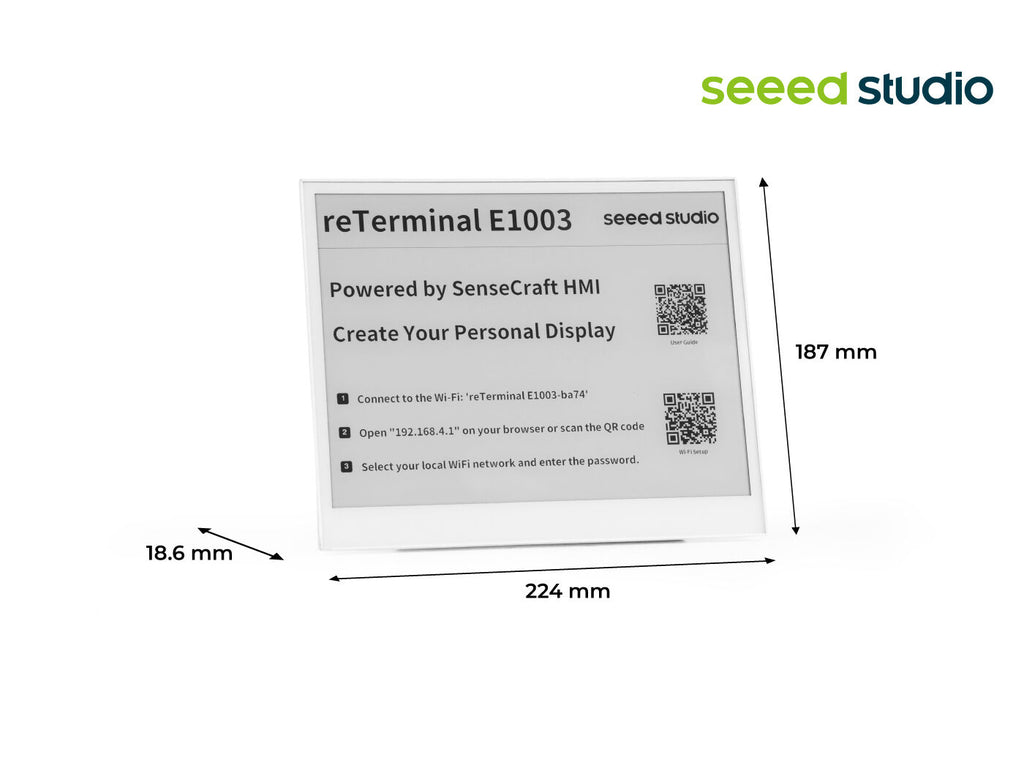

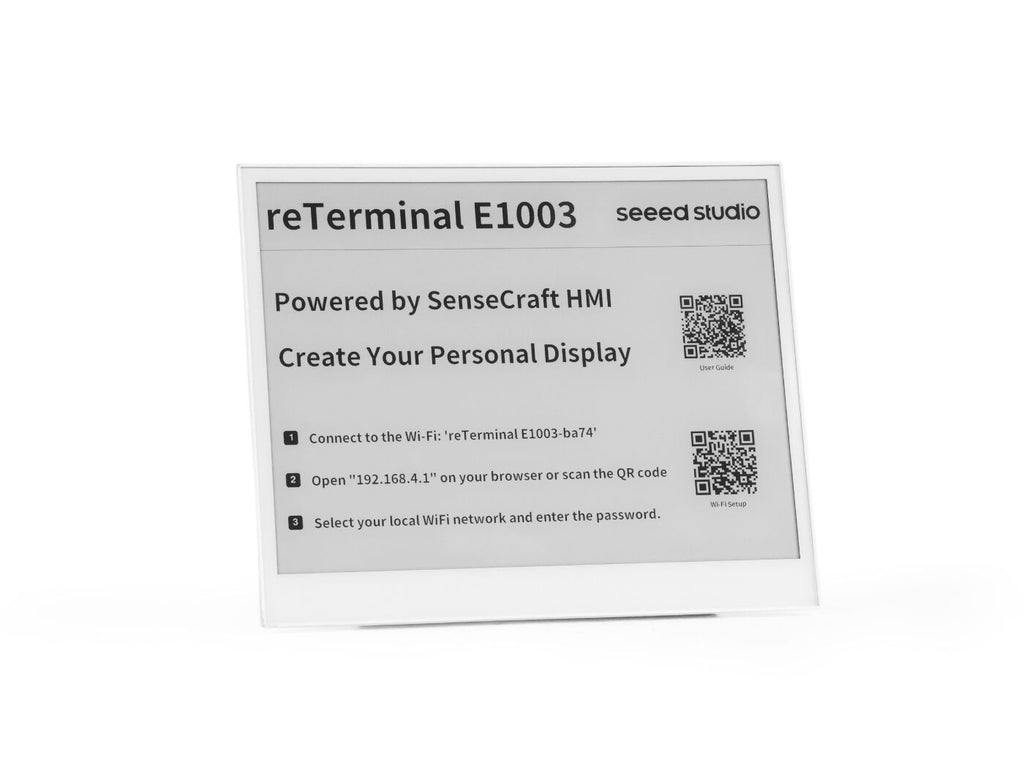

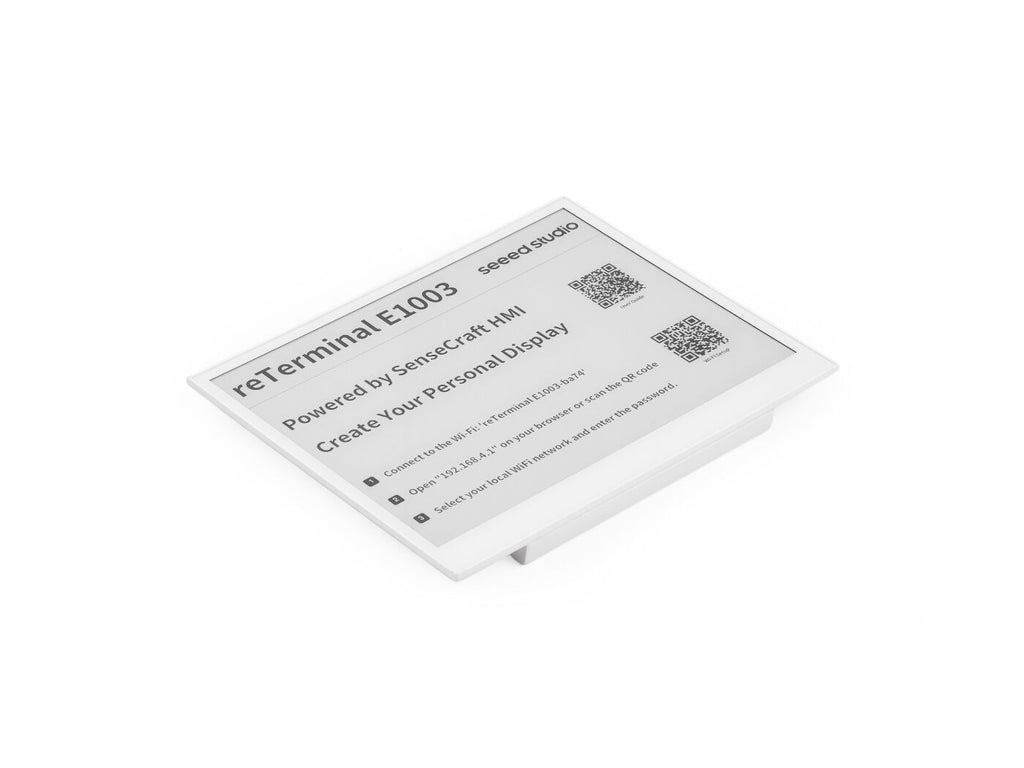

The reTerminal E1003 is a sleek, ready-to-use device equipped with a 10.3-inch 1404×1872 high-resolution, high density monochrome ePaper display that supports 16 levels of grayscale for sharp, delicate visuals. Adopting zero-backlight, eye-friendly ePaper technology and powered by ESP32-S3.

• 10.3-inch High-Refresh Touch ePaper Display

It integrates a highly responsive built-in touch panel with full-screen touch control, supporting double-tap wake-up and swipe-to-switch images. Equipped with a T-CON driver chip for fast screen refresh, it achieves canvas switching in as fast as 2–3 seconds (for a full refresh, while it can be 200ms for partial refresh).

• No-Code UI Design & Deployment with SenseCraft HMI

Design and deploy personalized dashboards effortlessly with SenseCraft HMI(SenseCraft HMI), our new AI-powered no-code platform for designing and deploying user interfaces. Create your UI through simple drag-and-drop elements, choose from our rich template library, or let AI help you. Connect real-time data from onboard sensors or web APIs, then deploy your finished dashboard to reTerminal E1003 display with just a few clicks. From design to data configuration to deployment, everything happens seamlessly on one single platform.

• Image Slideshows with Live Data Sync&Battery Lasts for Months

Equipped with a built-in 3000mAh battery and engineered for maximum power efficiency, the reTerminal E1003 runs for up to 6 months on a single charge in Low-Power Mode (Refresh once per day). Place it anywhere—on your desk, mounted on a wall, or in any space—without worrying about frequent recharging. Supports automatic image carousel and real-time data updates, Create a reliable personal information dashboard!

• Adapting to decoration and display needs in different scenarios

Wire-free for greater freedom; supports wall-mount and desktop placement, with flexible portrait and landscape orientation switching to seamlessly adapt to diverse decorative and display needs across scenarios. We also offer a compatible black aluminum alloy photo frame as an optional accessory, which provides a more elegant look and seamlessly blends into any environment.

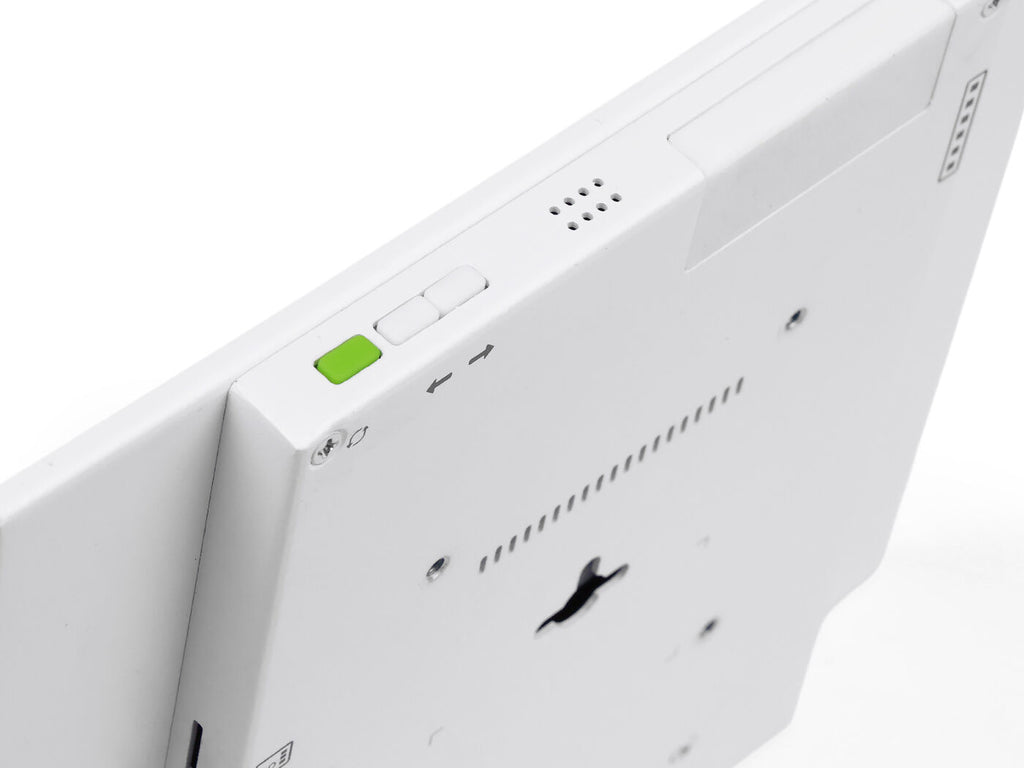

• Screen Refresh Button
• Page Up and Down Button

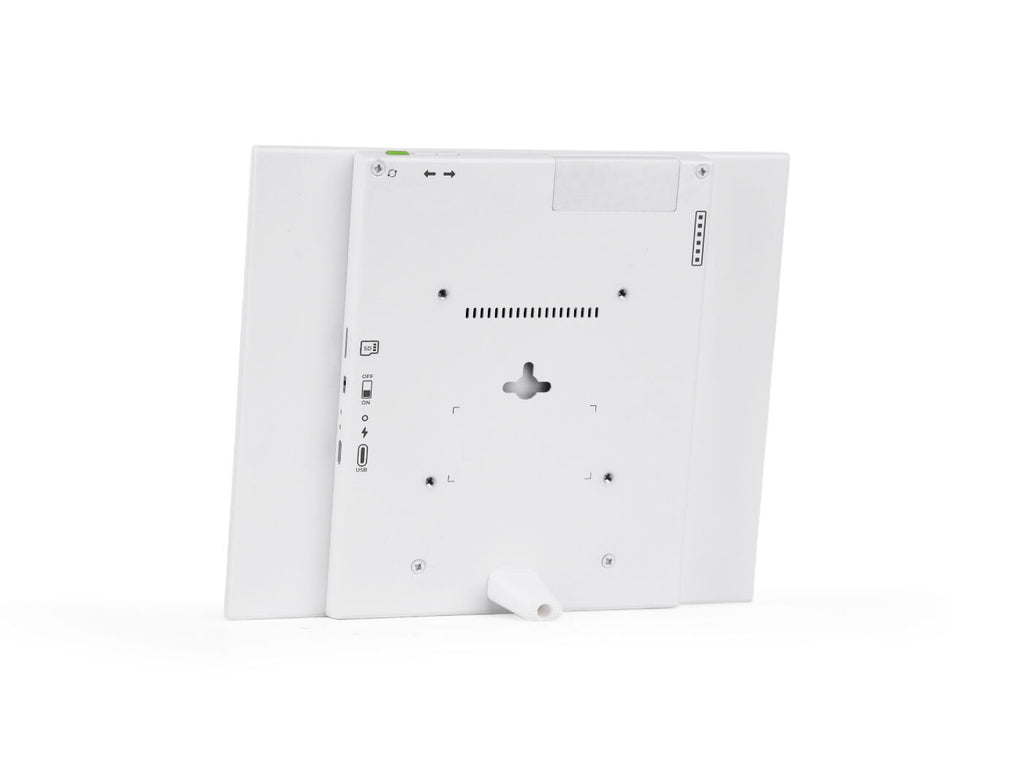

• Wi-Fi Antenna Area

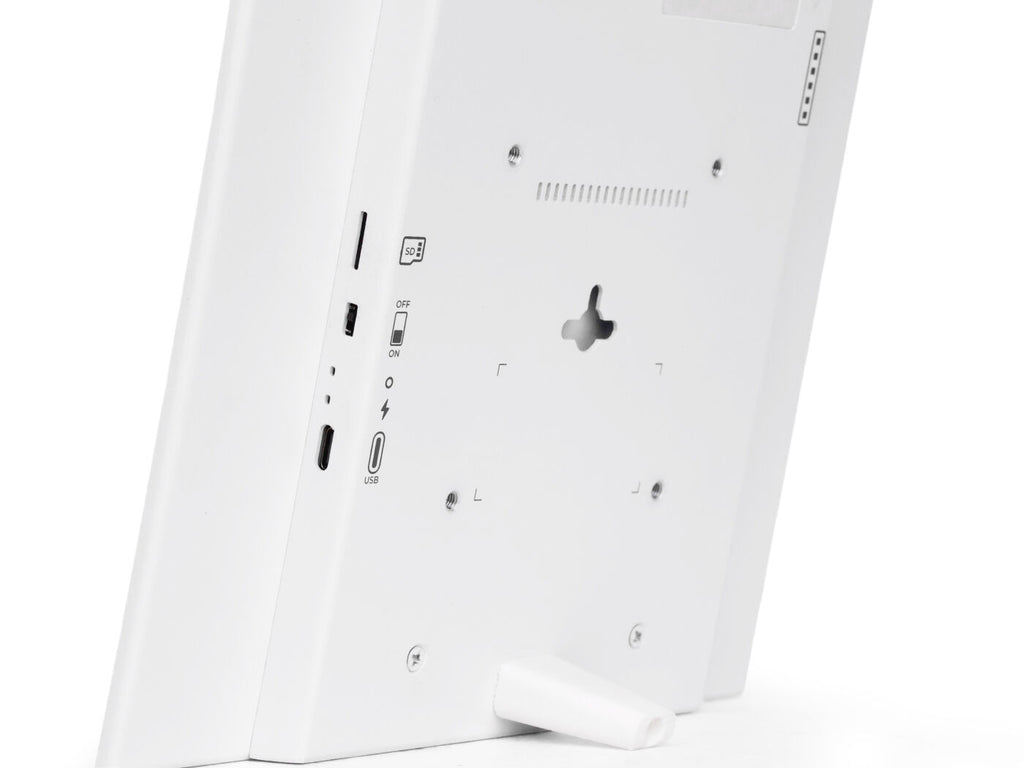

• MicroSD Card/TF Card port
• Power Switch
• Red Power LED
• Green Status LED
• USB-C Data and Charge Port

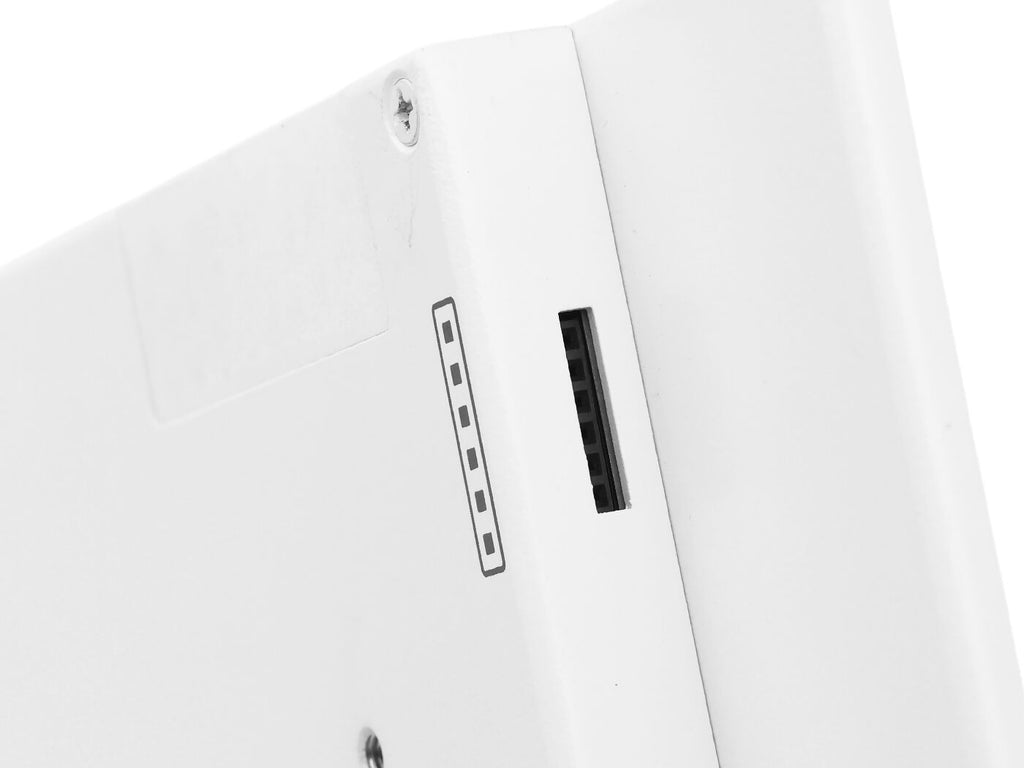

• Expansion Port

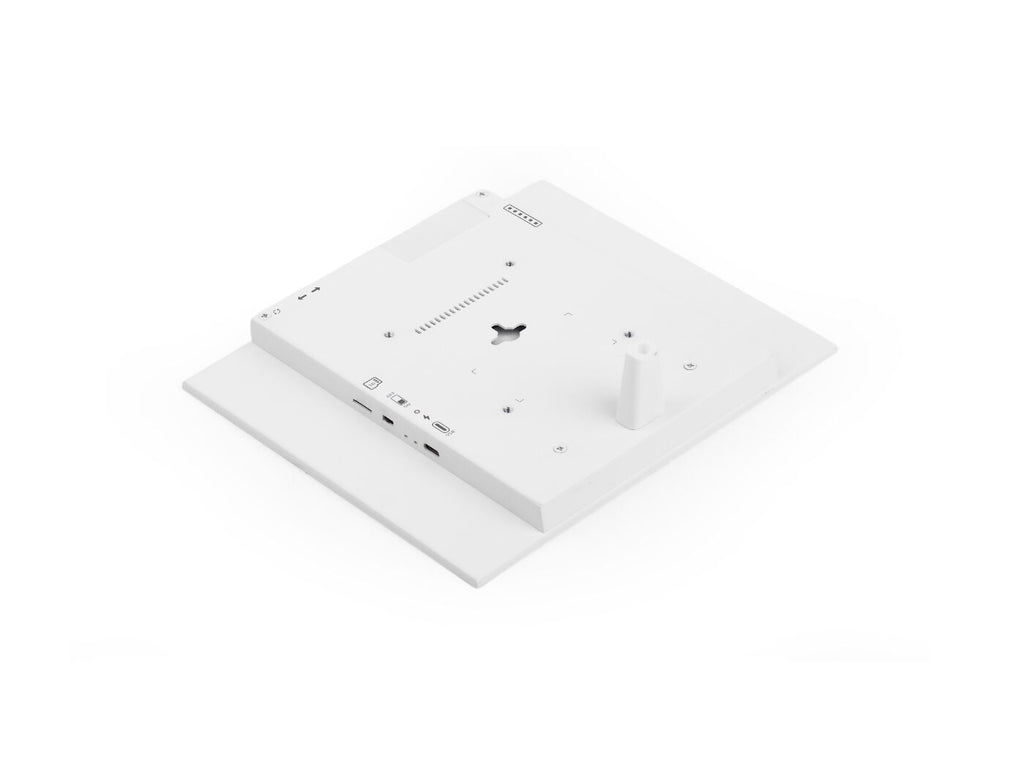

• Stand Mounting Screw Hole
• Stand
• Stand Mounting Screw

• Home Automation Dashboards

Display real-time smart home data like temperature, humidity, and air quality via Home Assistant.

• Low-power Monochrome electronic photo frame:

With SenseCraft HMI or the App, you can easily upload a series of photos from your album remotely online. Combined with a large, high-resolution monochrome e-ink screen, it achieves ultra-low power image display, no longer have to worry about battery life.

• Smart Office Displays

Show meeting room availability, office schedules, or directional guidance in low-power, always-on ePaper displays.

• Retail & Public Information Displays

Low-power ePaper signs for menus, schedules, or occupancy indicators with long battery life.
