- Highly-integrated: Features a four-in-one design integrating driver, motor, planetary reducer, and dual magnetic encoders in a lightweight 880g package.
- High Torque Density: Delivers 60 N.m peak torque with a 9:1 reduction ratio, achieving a torque density of 66.67 N.m/kg.
- Dual Encoder: Equipped with dual magnetic encoders for high-precision position feedback.
- Wide Voltage Compatibility: Supports 15-60V input range (Rated 48V), optimized for modern battery-powered robots.
- Convenient Development: Comes with comprehensive debugging software, modules, and sample programs for easy development.
- Versatile Applications: Suitable for robotics, consumer products, and automation control applications.
Item | Specification |

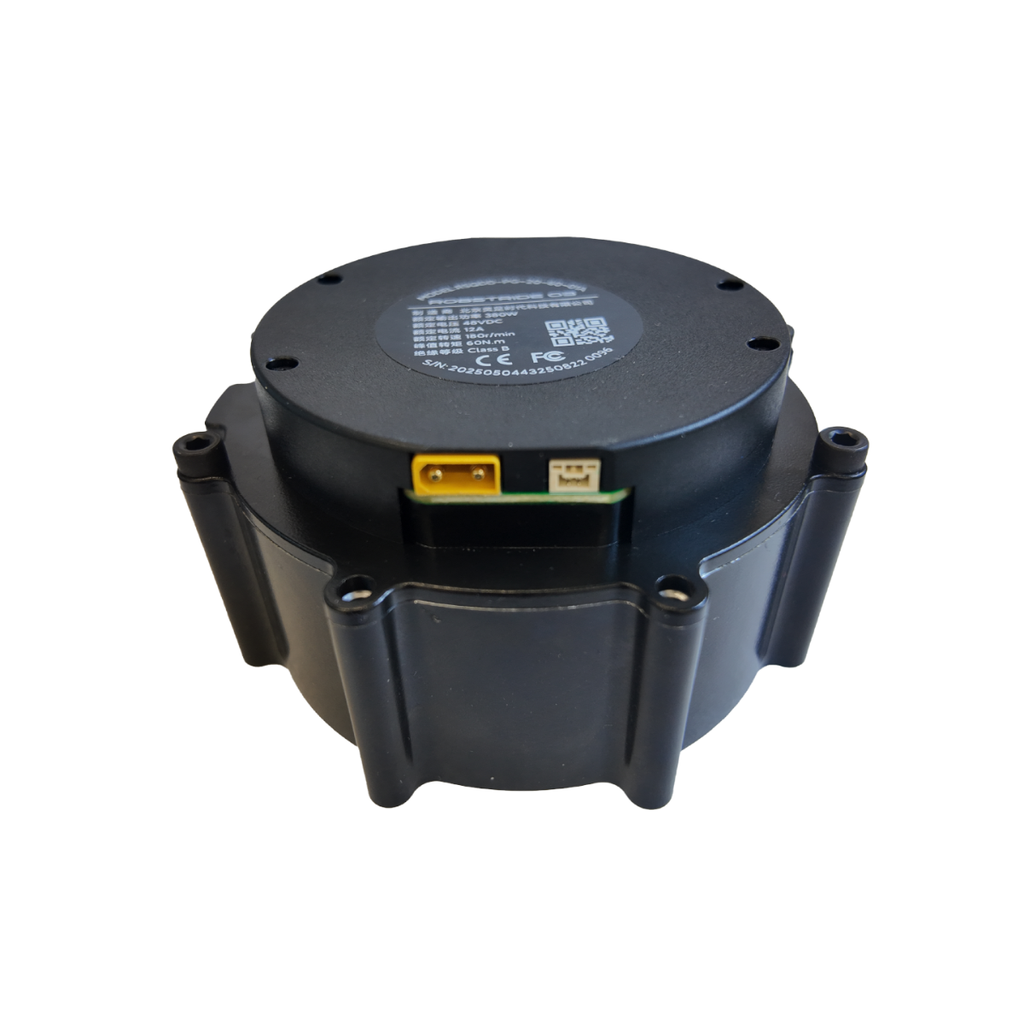

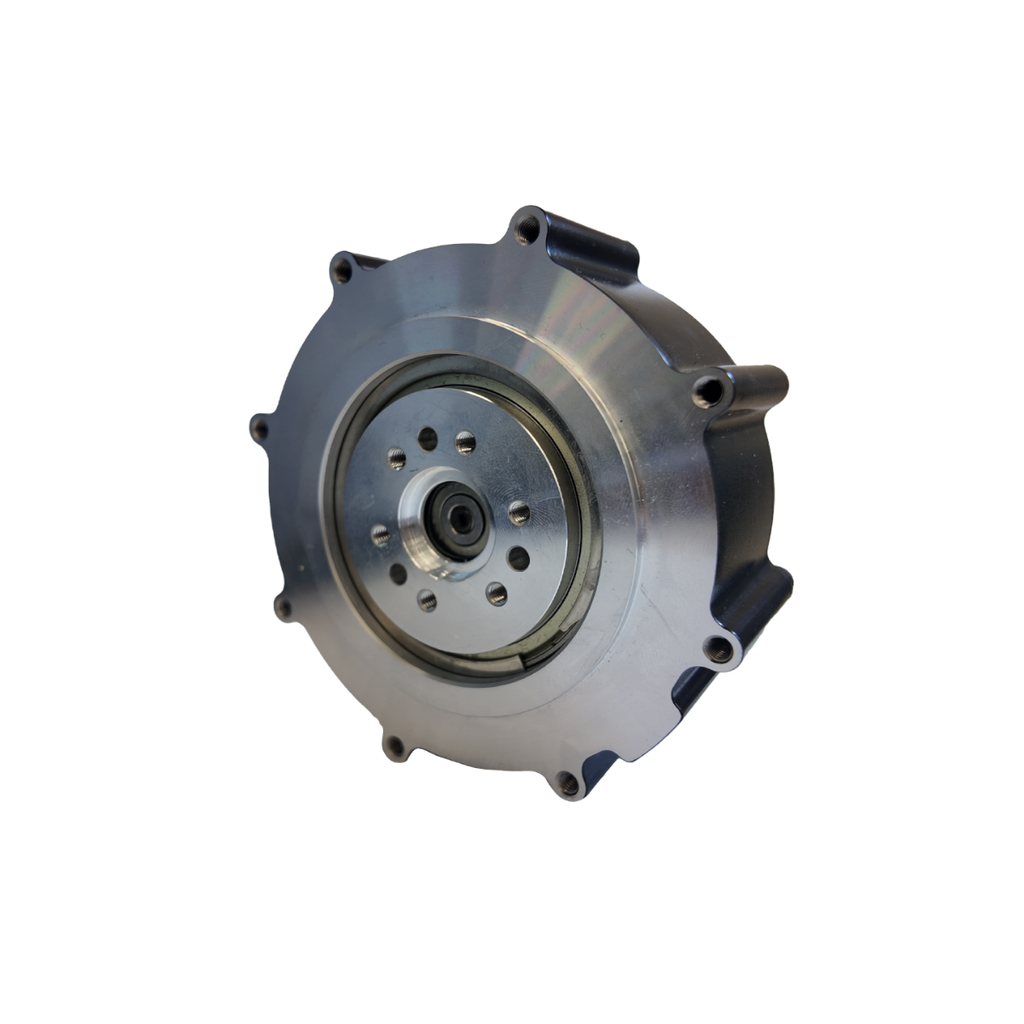

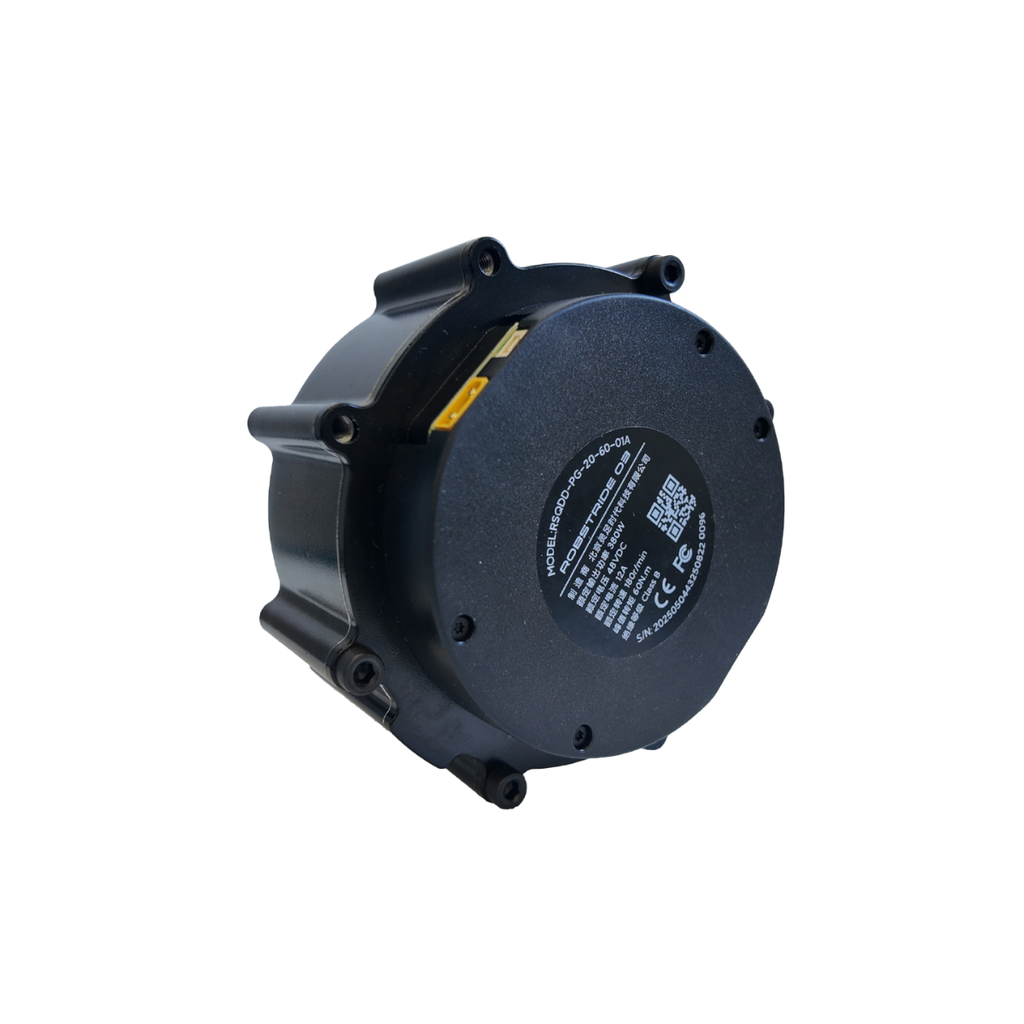

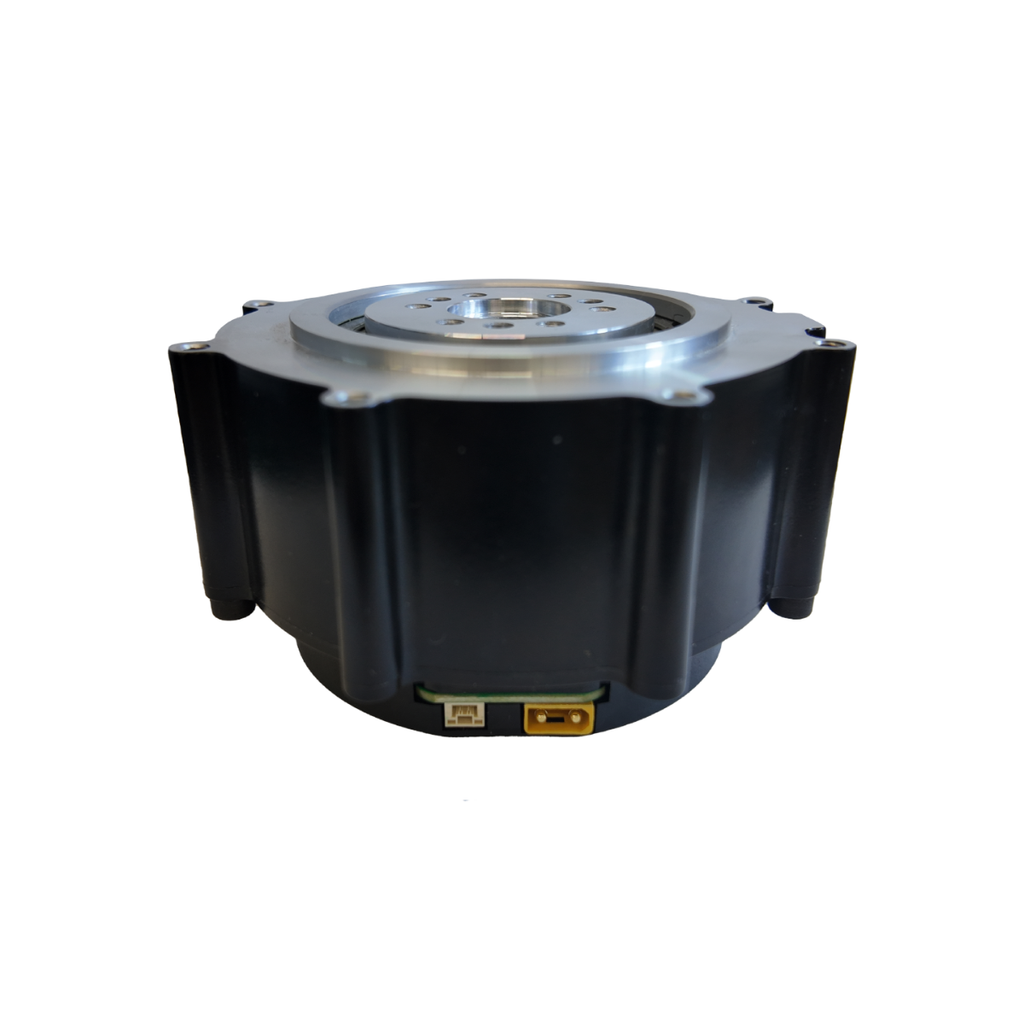

Product | RobStride 03 Motor |
Voltage Range | 15-60V (Rated 48V) |
Operating Temperature | -20℃~50℃ |
Operating Humidity | 5%~85% |
Storage Temperature | -30℃~70℃ |
Mechanical Dimension | 106mm x 106mm x 56mm |
Communication Interface | CAN |
Gear Ratio | 9:1 |
Rated Output Power | 380W ± 10% |
Rated Torque | 20 Nm |
Peak Torque | 60 Nm |
Poles | 42 |
Phases | 3 |
Driver Method | FOC |
Encoder | Magnetic Encoder x 2 |
Weight | 880g ± 20g |
Protection Level | IP52 (Supporting customize IP67) |
Terminal Interface | XT30 + GH1.25 |
RobStride 03 Motor | x1 |
XT30 + GH1.25 Cable | x1 |
| HSCODE | 8501310000 |
| USHSCODE | 8501316000 |
| UPC | |
| EUHSCODE | 8501109390 |
| COO | CHINA |
