- Plug-and-Play Convenience: Features a mainstream USB Type-C interface for PC connection and a 3-pin screw terminal (GND, CAN_H, CAN_L) for quick field wiring.
- High-Speed Stability: Built with an industrial-grade WCH CH340 USB driver and a high-performance GD32 (GigaDevice) MCU, supporting serial baud rates up to 921600 bps for real-time motor control.

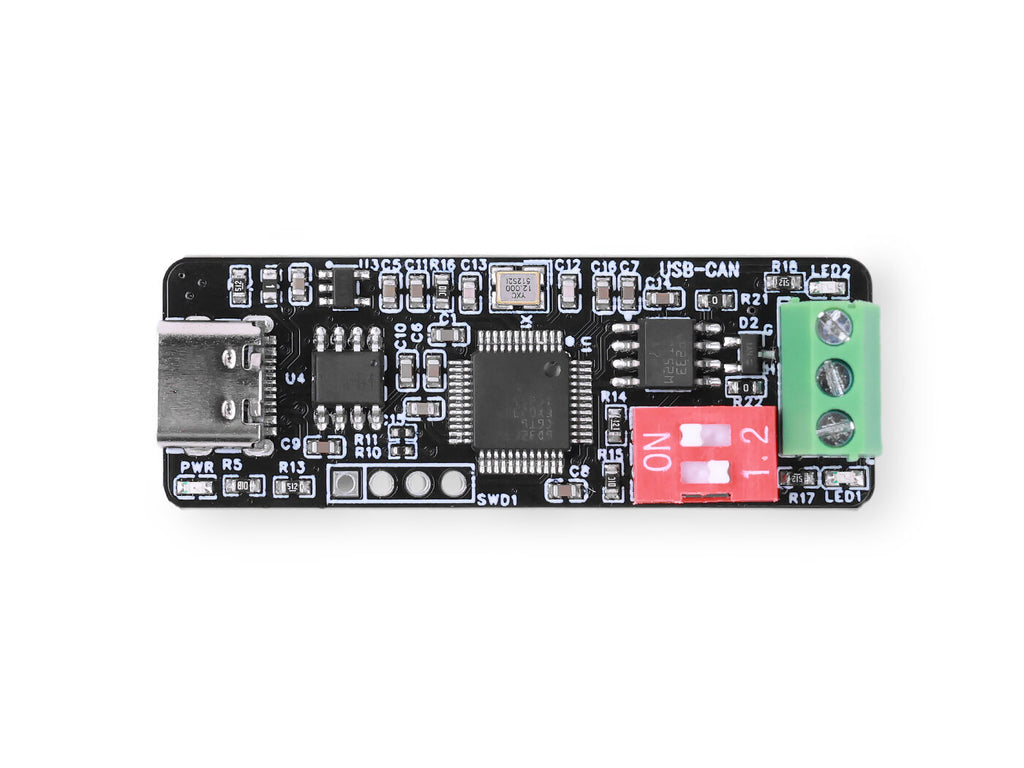

- Compact & Robust: Features a high-quality black immersion gold PCB design with reserved SWD debugging pins for advanced users who wish to customize the firmware.
- Broad Compatibility: Specifically optimized for debugging RobStride series motors, but compatible with most CAN-bus based actuators and sensors.
Note: This module is designed exclusively for use with the official host software; the serial communication protocol documentation is not provided. For custom development or secondary programming, please use a standard CAN adapter (e.g., CANable) to control devices via standard CAN protocols. Customization services are available upon request.
Specification Item | Details |
Product Name | RobStride USB-to-CAN Adapter |
Input Interface | USB Type-C (5V Power Supply) |

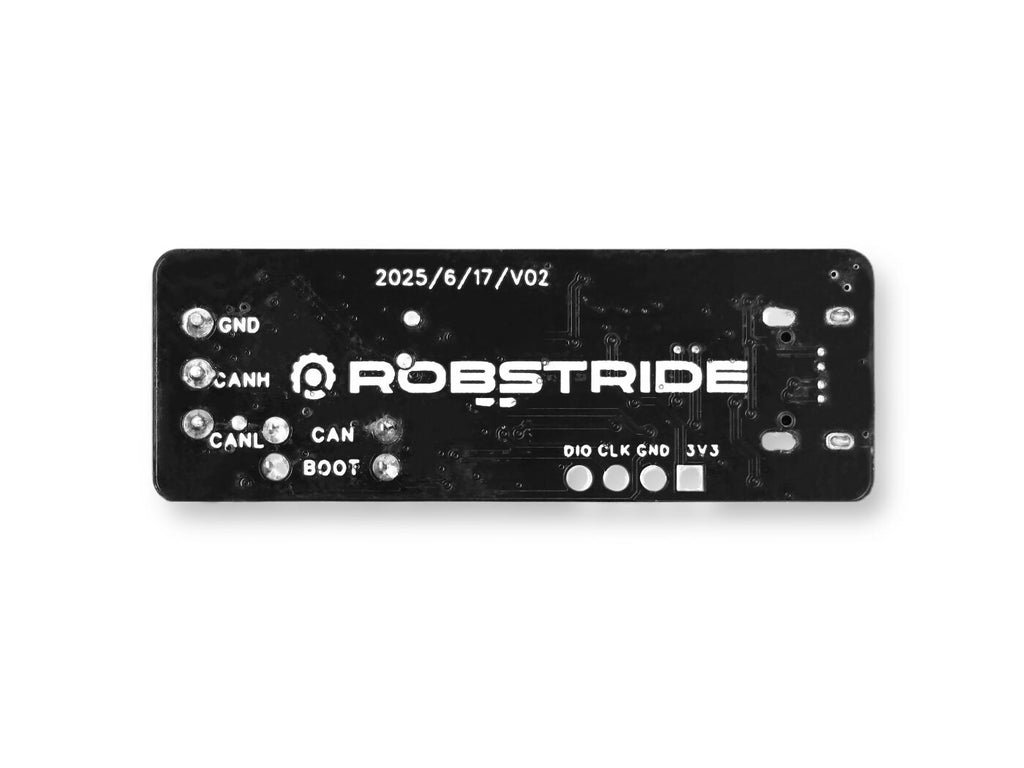

Output Interface | 3-Pin Screw Terminal (GND, CAN_L, CAN_H) |
Main Controller | GD32 Series (ARM Cortex-M) |
USB Driver | WCH CH340 |
Max Serial Baud Rate | 921600 bps |
Net Weight | ~10g |
- Robotic joint motor debugging (e.g., RobStride series).
- CAN bus data analysis and sniffing.
- Firmware OTA updates for CAN devices.
- RobStride USB-to-CAN Module x1
| HSCODE | 8517799000 |
| USHSCODE | 8517690000 |
| UPC | |
| EUHSCODE | 8517180000 |
| COO | CHINA |
