- Supports 2.4G/5GHz dual-band
- Wireless PHY rate can reach up to 867Mbps
- IEEE Standards: IEEE 802.11a/b/g/n/ac
- Form factor: M.2 2230 generic A key or E key
- Connect to external antenna through MHF4 connectors
- Power Supply: DC3.3V±0.2V power supply
- Supports Linux, Windows 10/11, etc.
Chipset | RTL8822CE - CG |
WLAN Standards | IEEE802.11a/b/g/n/ac |
BT Specification | Bluetooth Core Specification v5.0/4.2/2.1 |
Host Interface | PCI Express 2.1 for WLAN & USB2.0 FS for Bluetooth |
Antenna | Connect to the external antennas through MHF4 connector |

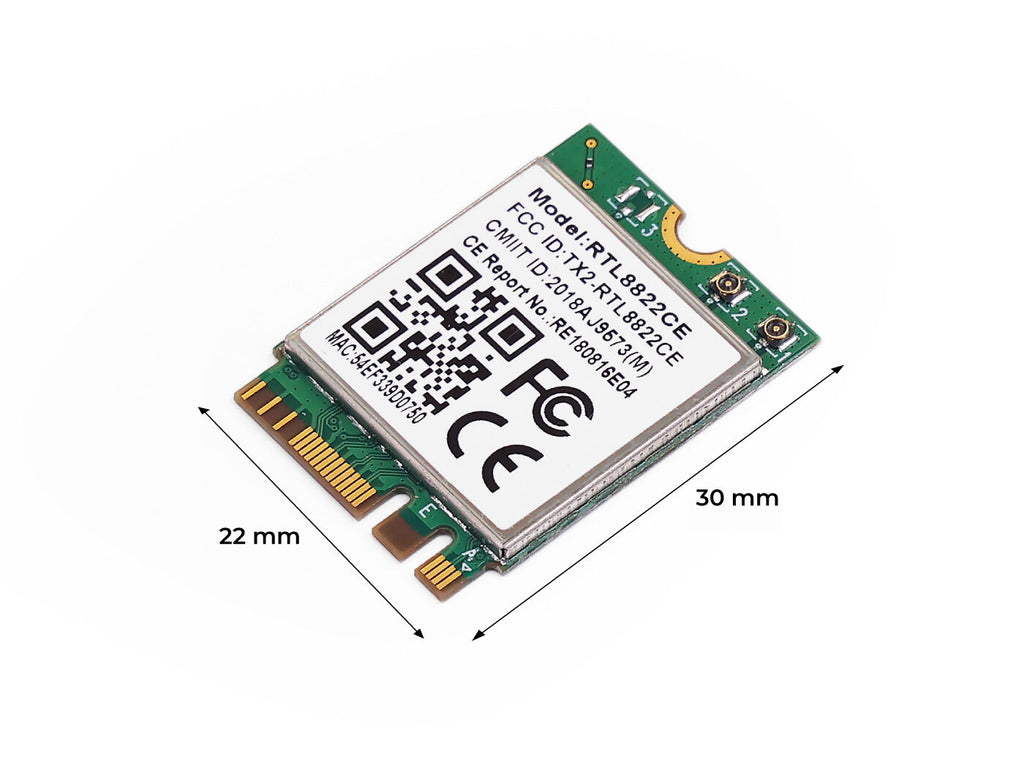

Dimension | M.2, 30*22*2.15mm (L*W*H) |
Power Supply | DC 3.3V±0.2V @ 1000mA (Max) |
Operation Temperature | -20°C to +70°C |
Operation Humidity | 10% to 95% RH (Non - Condensing) |
317030652_LB-link_BL-M8822CP1_datasheet.pdf
Wireless-RTL8822CE | x1 |
| HSCODE | 8517799000 |
| USHSCODE | 8517180050 |
| UPC | |
| EUHSCODE | 8517180000 |
| COO | Taiwan |
