- Supports 2.4G/5GHz dual-band
- Wireless PHY rate can reach up to 1201Mbps
- IEEE Standards: IEEE 802.11a/b/g/n/ac/ax
- Dual Mode Bluetooth support : Simultaneous LE and BR / EDR
- Form factor: M.2 Type 2230 S2 Key A+E Card
- Connect to external antenna through MHF4/IPEX4 connectors
Chipset | RTL8852BE - CG |
WLAN Standards | IEEE 802.11a/b/g/n/ac/ax |
BT Specification | Bluetooth Core Specification v5.2/4.2/2.1 |
Host Interface | PCI Express 1.1 for WLAN & USB2.0 FS for Bluetooth |
Antenna | Connect to the external antennas through MHF4 connector (Two antennas) |

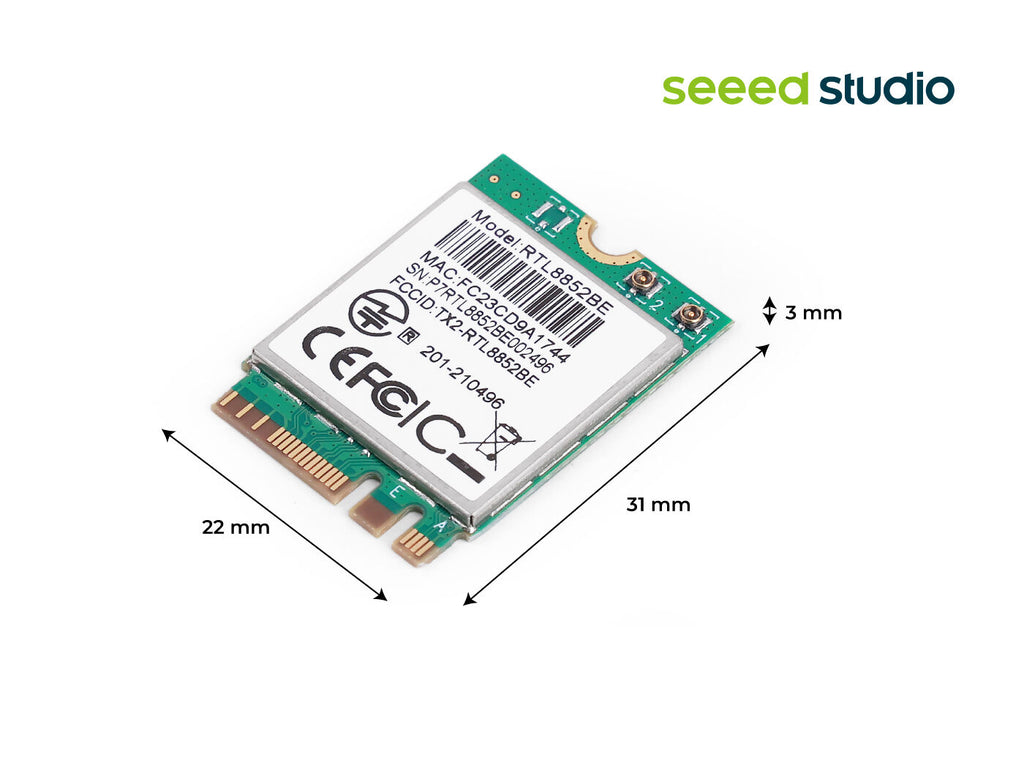

Dimension | M.2 Type 2230 Pluggable Card: 30*22*2.15mm (L*W*H) |
Power Supply | DC 3.3V±0.2V @ 1.5A (Max) |
Operation Temperature | -20°C to +70°C |
Operation Humidity | 10% to 95% RH (Non - Condensing) |
- Edge AI Box & Mini PC: Supports Linux and Windows. Featuring a universal interface, it is widely integrated into various Edge AI Box.
- Robotics & Embodied AI: Provides the low-latency, high-reliability wireless link and Bluetooth 5.2 connectivity essential for commercial service robot and AGV/AMR.
- Industrial IoT: Ideal for harsh industrial environments where wired networking is impractical. It leverages Wi-Fi 6 for high-capacity data collection and transmission, with wide-temperature support making it highly popular in industrial application.
- Consumer Electronics: Frequently used as a Wi-Fi 6 upgrade from legacy Wi-Fi 5 cards, significantly boosting the wireless networking performance of Laptop and PC.
Wireless RTL8852BE-CG | x1 |
| HSCODE | 8517799000 |
| USHSCODE | 8517690000 |
| UPC | |
| EUHSCODE | 8517180000 |
| COO | CHINA |
