Note:
Hey community! XIAO ESP32-C5 is available now!
Since our first production run is limited, we're limiting purchases to 5 pcs per person so more developers can get boards for testing and development.
Plus, we're inviting you to shape the XIAO Open Roadmap—help us build better products together through open collaboration!

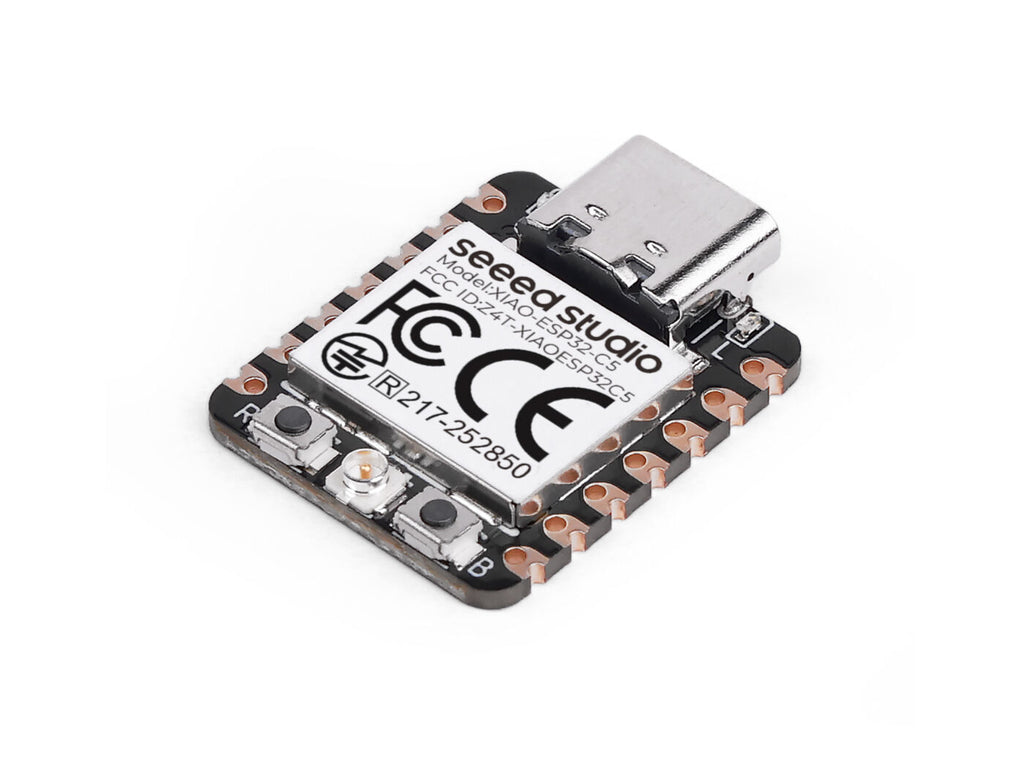

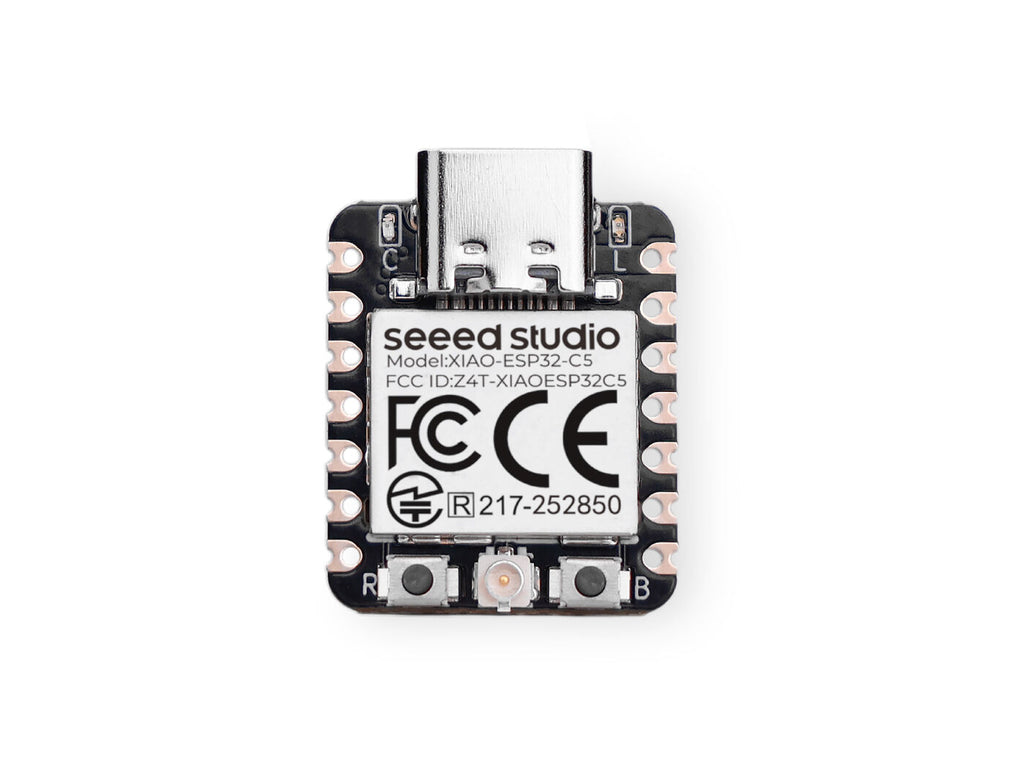

Seeed Studio XIAO ESP32-C5 — the first XIAO module with 5 GHz Wi-Fi support, marking a new milestone in the XIAO family.
Built on the RISC-V architecture, it brings together 2.4 GHz and 5 GHz dual-band Wi-Fi 6, Bluetooth 5 (LE), and IEEE 802.15.4 (Zigbee, Thread) connectivity, while offering full support for IoT application protocols including Matter, HomeKit, and MQTT. With this versatile combination, your projects gain smoother, faster, and more reliable wireless performancer.
- First Seeed Studio XIAO with 5 GHz Wi‑Fi
Provides dual‑band Wi‑Fi 6 for cleaner spectrum access and higher throughput in 5 GHz, while maintaining 2.4 GHz compatibility.
- Comprehensive connectivity
Dual‑band Wi‑Fi 6, Bluetooth 5 LE, and IEEE 802.15.4 provide comprehensive IoT protocol coverage, with full support for Matter, HomeKit, and MQTT.
- High‑performance core
Equipped with a 32‑bit RISC‑V single‑core processor running up to 240 MHz, the XIAO ESP32‑C5 integrates 384 KB on‑chip SRAM, 320 KB ROM, 8MB Flash, and 8MB PSRAM. This combination ensures smooth protocol handling, multitasking, and application scalability.
- Enhanced security
Secure boot, flash encryption, and hardware cryptographic accelerators to protect firmware and data integrity.
- Built‑in Battery Interface for Low‑Power Designs
Integrated battery management supporting ultra‑low‑power operation, with deep‑sleep current as low as 15 µA.
Production-Ready Design with Fusion PCBA Support
All Seeed Studio XIAO dev boards feature a production-optimized SMD (Surface Mount Device) design with standardized stamp holes, making it perfect for commercial PCBA (Printed Circuit Board Assembly) integration. Through our Fusion PCBA Sponsorship program, you can not only enjoy the lowest unit prices for all XIAO modules from our Fusion Open Parts Library, but also fabricate and scale your XIAO-based PCBA designs at low cost (30% off) with FREE Design for Manufacturing consulting services, streamlining your journey from prototype to production.
Note
XIAO SoM User Manual open-sources all hardware and software materials of XIAO, providing professional product design guidelines to help you accelerate ideas off the ground, streamline product design, providing a seamless experience from module selection to mass production. You can check here to see more info.
Starter Kit with free Course for all Electronics Neophytes and Enthusiasts
Seeed Studio has provided the Grove Starter Kit along with free and detailed courses for you quickly get started with microcontrollers and electronics, regarding all the Seeed Studio XIAO boards, promising you a great learning experience.
Not only programming but also electronics knowledge is not required, you will be taken step by step, from understanding the basic concepts to exercising the simple projects individually, finally being able to build complex, interesting, wearable projects on your own, owing a practical electronic product prototype from the course.
You can have access to the Seeed Studio Grove ecosystem by connecting it to the compatible Seeed Studio XIAO expansion board. We have developed more than 400 Grove modules, covering a wide range of applications that can fulfill various needs. Get started and explore the infinite possibilities of the Seeed Studio XIAO series!
If you are interested in programming embedded machine learning, we have Codecraft visual programming that can help you quickly start your own TinyML project. And we have set up a #tinyml channel on our Discord server, please click to join for 24/7 making, sharing, discussing, and helping each other out.
We already have over 10 XIAO products based on different solutions in the XIAO family, to help you better understand the differences and choose the most suitable part for your projects, please refer to the Seeed Studio XIAO Series Page.
Product | XIAO ESP32-C5 |
Chipest | ESP32-C5HR8 |
Processor | High-performance 32-bit RISC-V single-core microprocessor, up to 240MHz and a low-power 32-bit RISC-V core at up to 48MHz (according to Datasheet, up to 20MHz p.69 of Technical Reference Manual v0.2) |
SRAM | 384KB |
RSRAM | 8MB |
Flash | 8MB |
Interface
| 11x GPIO Pin |
1x Analog Pin + 4x Analog Pad on the reverse side | |
1x I2C | |
1x UART | |
1x SPI | |

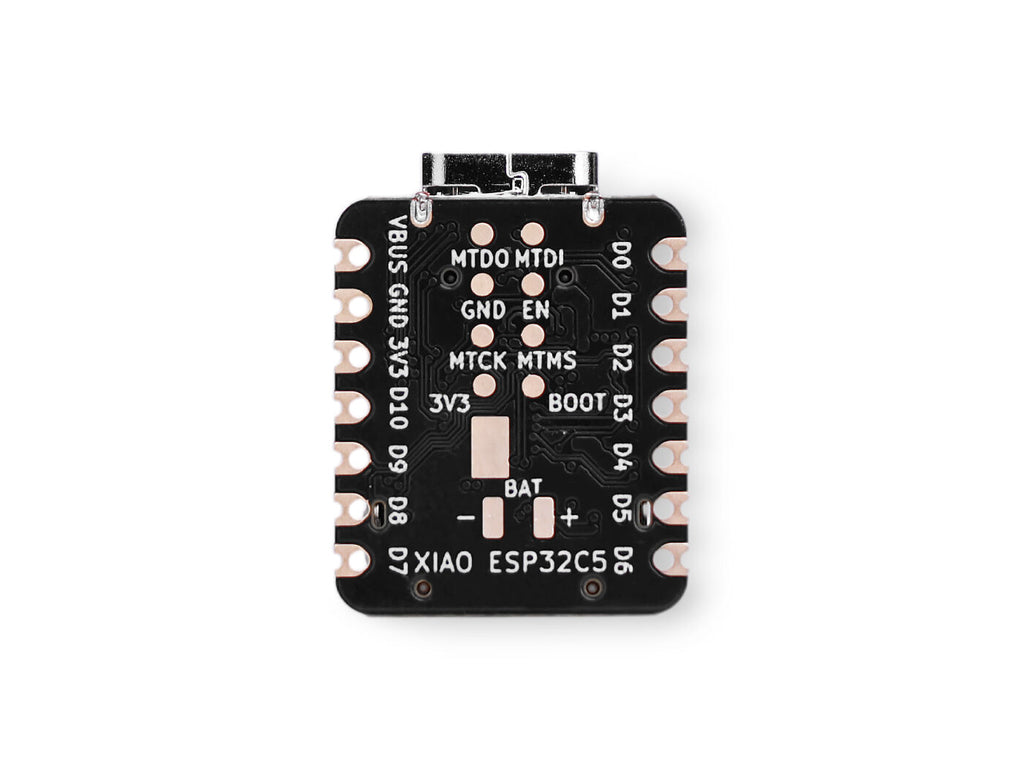

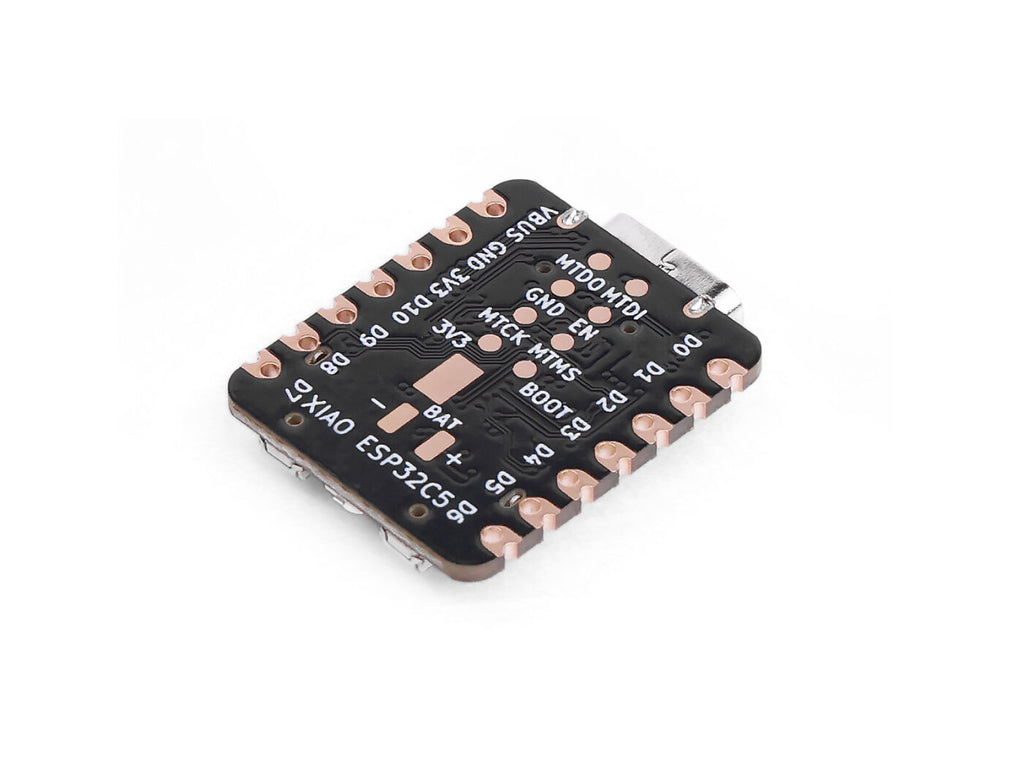

1 x JATG (Pads on the reverse side) | |
On Board | 1x User LED (Green) |
1x Charge LED (Battery Charging Indicator) | |
1x Reset Button | |
1x Boot Button | |
1x UFL Connector | |
Antenna | 2.4GHz FPC (2.9dBi) (same as used on XIAO ESP32-C3) Optional: 2.4GHz Rod Antenna (2.81dBi) |
Wireless Connectivity | 2.4 and 5 GHz dual-band Wi-Fi 6 (802.11ax) |
Bluetooth® 5 (LE) | |
Zigbee | |
Thread (802.15.4) | |
Power Input | Type-C: 5V/DC |
Battery: 3.7V | |
Deep Sleep (Low Power Firmware) | USB Power Supply: 375 µA Battery Power (BAT): 15 µA |
Working Temperature | 0°C ~85°C |

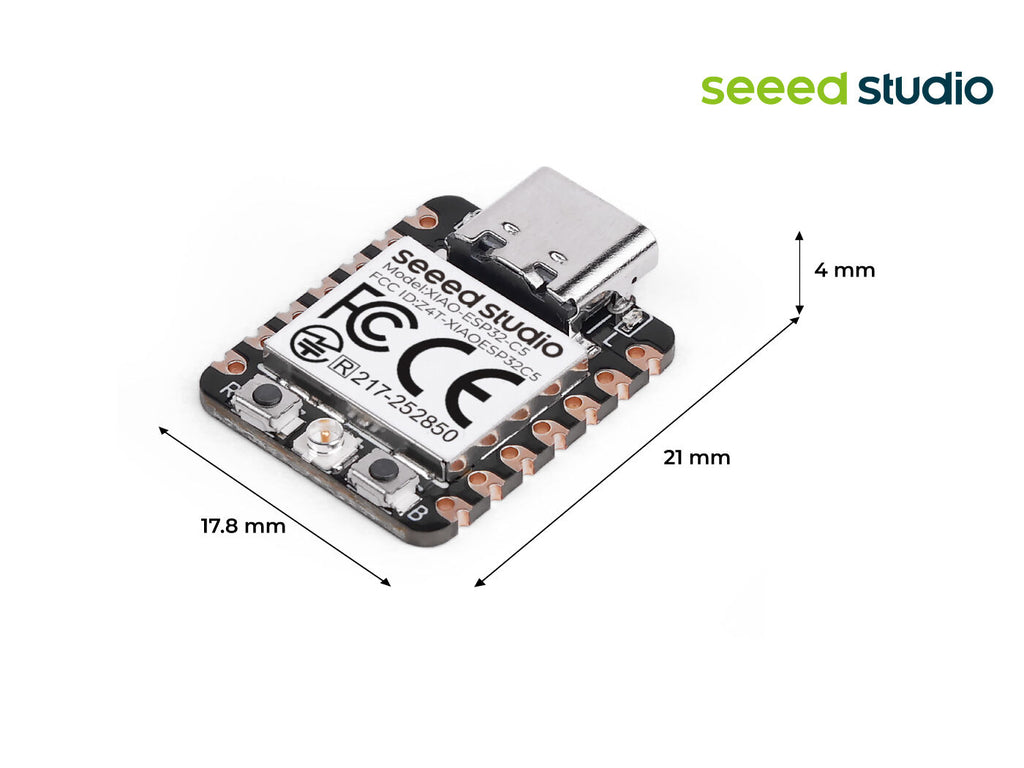

Dimensions | 21 x 17.8mm |
- Smart Sensor Node
- IoT Gateway
- BLE Tracker
- Wi-Fi Button
- Secure Edge Device
- Home Automation Device

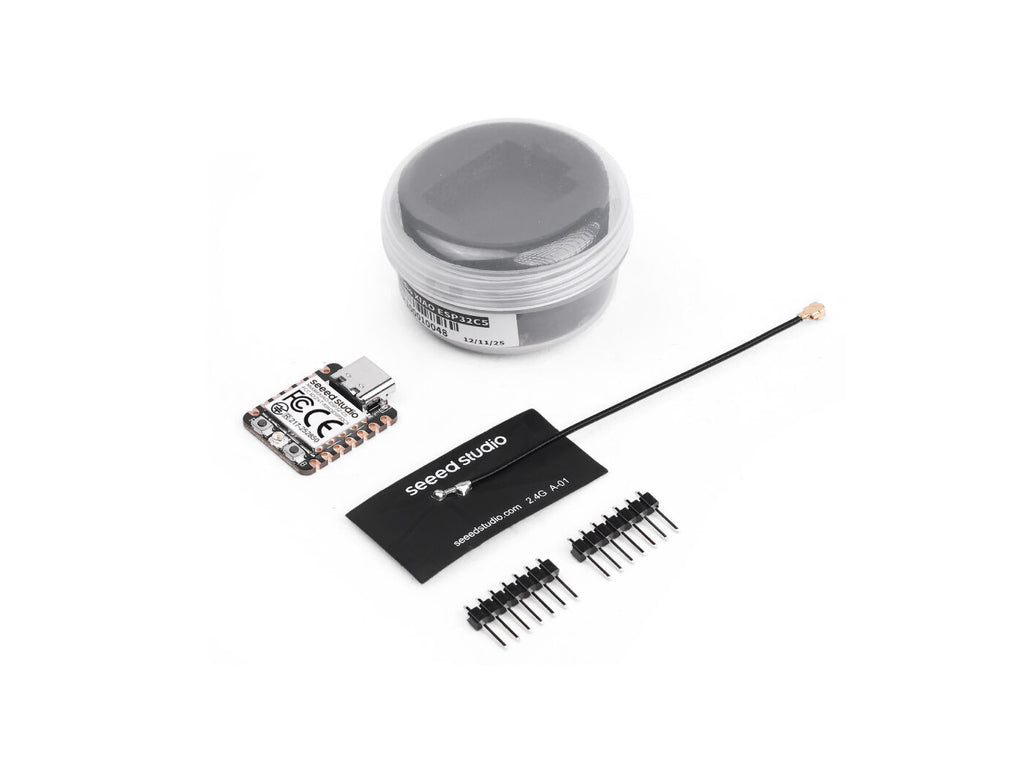

XIAO ESP32-C5 | x1 |
FPC Antenna | x1 |
Pin Header | x2 |
| HSCODE | 8543709990 |
| USHSCODE | 8517180050 |
| UPC | |
| EUHSCODE | 8543709099 |
| COO | CHINA |
