- Powerful MCU Board: Equipped with a Raspberry Pi RP2350 chip featuring dual-core, dual-architecture capability, allowing developers to switch between the dual industry-standard Arm Cortex-M33 cores @ 150MHz with FPU, and a pair of open-hardware Hazard3 RISC‑V cores
- Enhanced Security Features: Built-in secure boot and encrypted bootloader ensure application security.
- Software Support: Compatible with C/C++ and MicroPython, ensuring easy project development and prototyping.
- Rich Onboard Resources: Integrates an RGB LED, 2MB Flash, 520kB SRAM, and 19 multifunction GPIOs(Analog, Digital, I²C, UART, SPI, PWM).

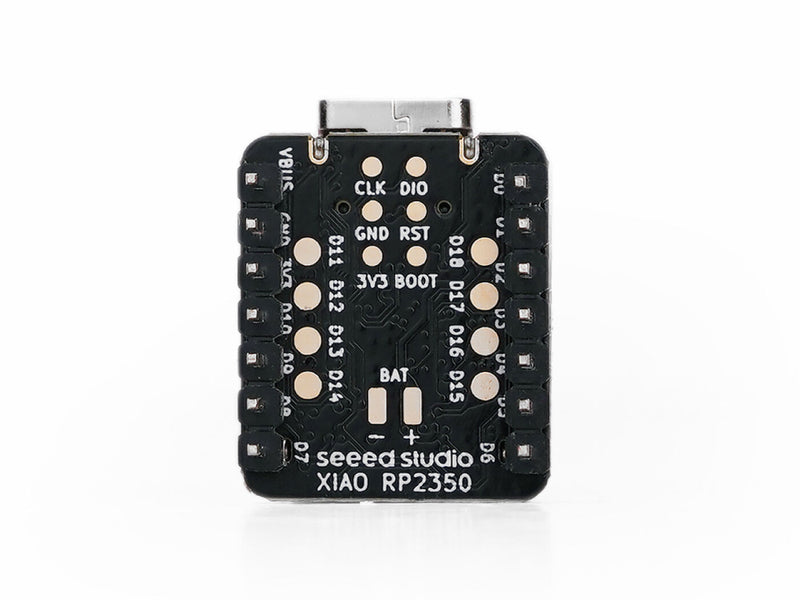

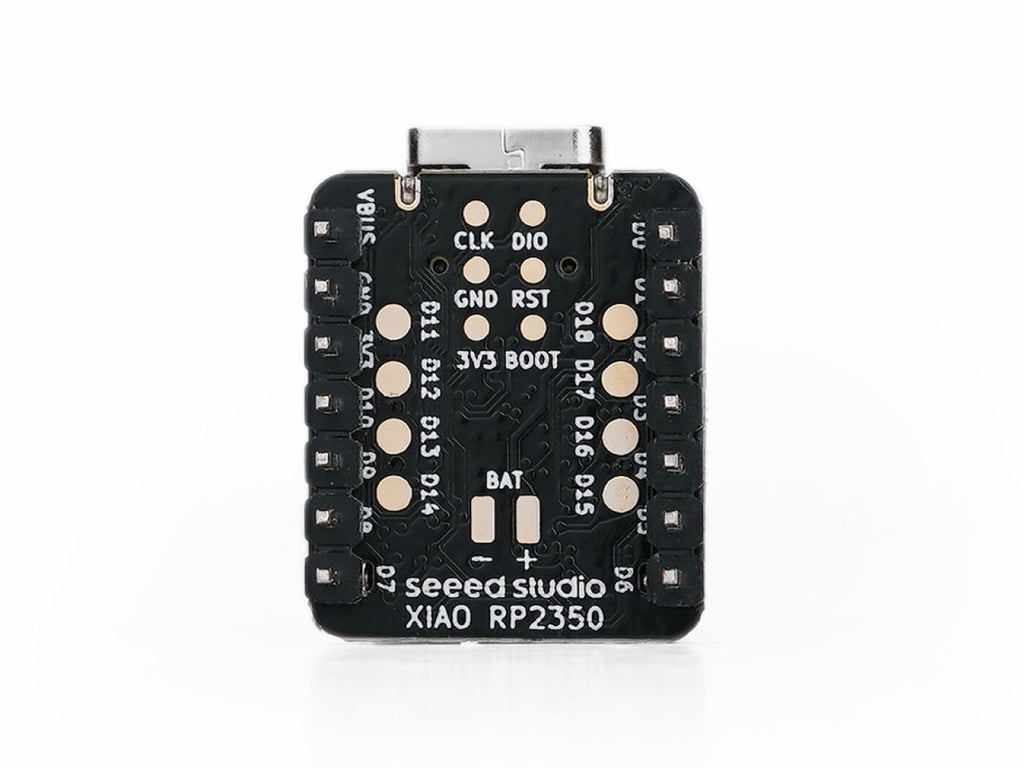

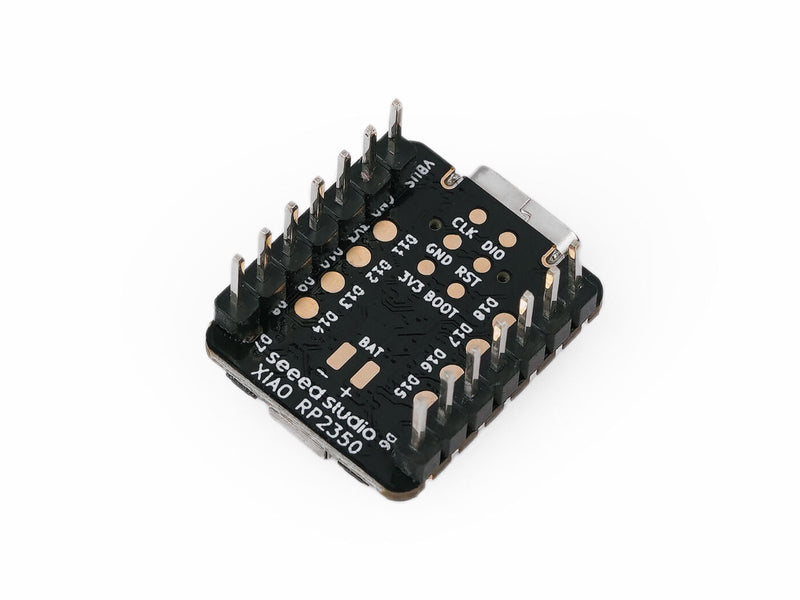

- Expanded 8 New IOs: Compared to previous XIAO MCUs, the addition of 8 IO pins on the back supports more complex applications.
- Efficient Power Design: Ultra-low power consumption of just 27μA in sleep mode, enabling battery power supply. Direct battery voltage measurement via internal IO enhances the battery management system (BMS).

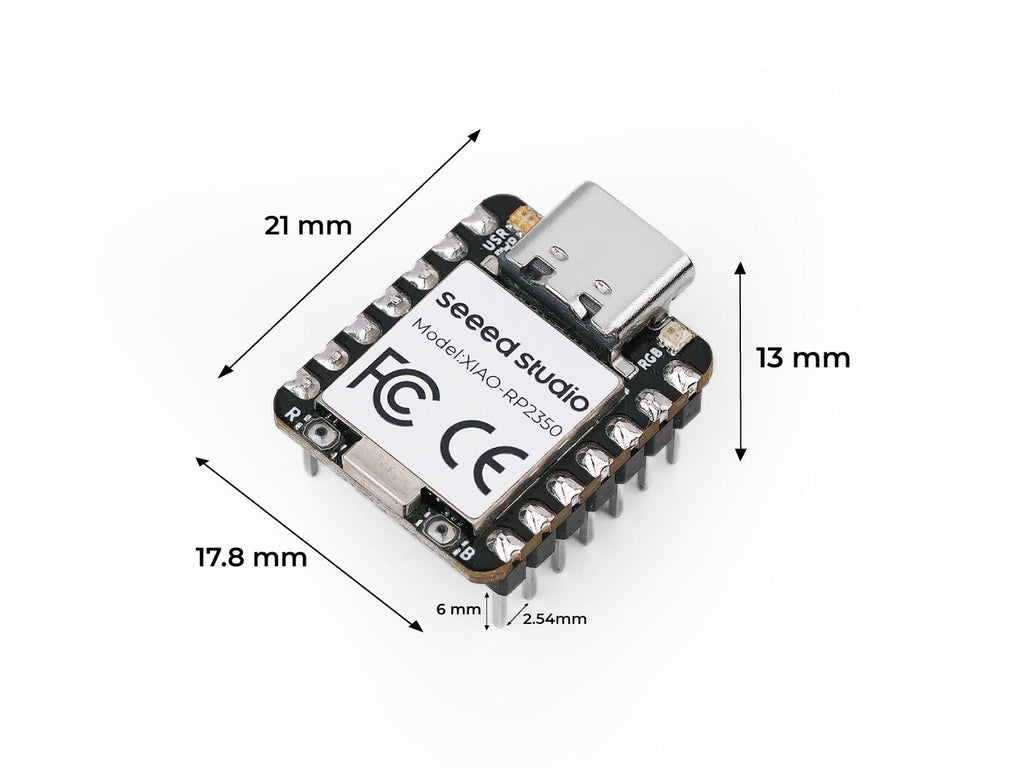

- Compact Thumb-Sized Design: Measuring 21 x 17.8mm, adopting Seeed Studio's classic XIAO form factor, ideal for space-conscious applications.
- Production-friendly: Surface Mount Device (SMD) design with all components on the front and stamp holes on both sides, facilitating efficient mass production.
Being the 9th member of the Seeed Studio XIAO family, the XIAO RP2350 remains the classic XIAO design (thumb-size, SMD, stamp holes). All these features make it a perfect fit for either space-limited projects such as wearables, or a production-ready unit for your PCBA designs. (check out our Fusion Co-Create one-stop prototyping, producing and promoting services to explore how to scale up your XIAO-based designs).
Note
XIAO SoM User Manual open-sources all hardware and software materials of XIAO, providing professional product design guidelines to help you accelerate ideas off the ground, streamline product design, providing a seamless experience from module selection to mass production. You can check here to see more info.
Product | XIAO RP2040 | XIAO RP2350 |
Processor | Raspberry Pi RP2040 | Raspberry Pi RP2350 |
Dual Cortex-M0+ @ 133MHz | Dual Cortex-M33 @ 150MHz, FPU | |
RAM | 264kB SRAM | 520kB SRAM |
Flash | 2MB Onboard | 2MB PSRAM |
LEDs | 1 user LED, 1 power LED, two LEDs for serial port downloading, 1 RGB LED | 1 user LED, 1 power LED，1 RGB LED |
Interface | 11 Pins: 4x Analog,11x Digital, 1x I²C, 1x UART, 1x SPI, All PWM | 19 Pins: 3x Analog,19x Digital, 2x I²C, 2x UART, 2x SPI, All PWM |
Button | 1 RESET button, 1 BOOT button | 1 RESET button, 1 BOOT button |
Security | - | OTP, Secure Boot, Arm TrustZone |
Low power | - | 27μA |
Software compatibility | Support Micropython / Arduino / CircuitPython | Support Micropython / C,C++ |
Working Temperature | -20°C-70°C | -20°C-70°C |
Dimensions | 21x17.8 mm | 21x17.8 mm |
- PinOut
- Smart Control
- Human Interface Devices (HID, such as mouse, DIY Mechanical Keyboard, joystick, console)
- Education
- Robotics
- Wearables
Seeed Studio XIAO RP2350 (Pre-Soldered) | x1 |
| HSCODE | 8543709990 |
| USHSCODE | 8543708800 |
| UPC | |
| EUHSCODE | 8543709099 |
| COO | CHINA |
