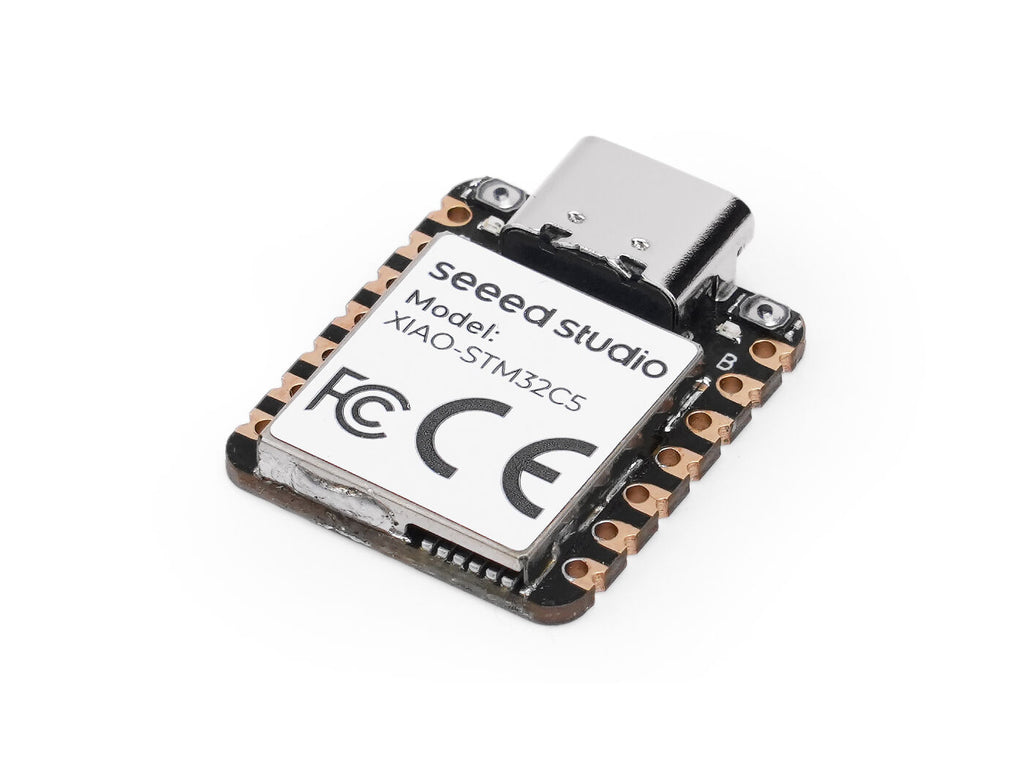

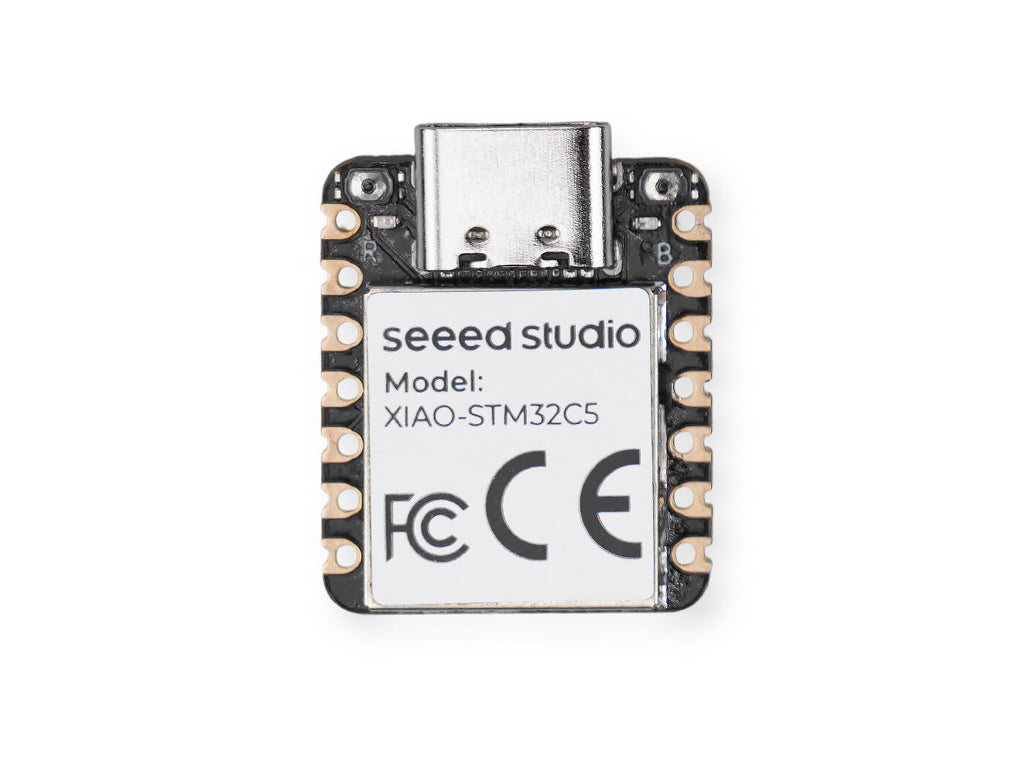

- The First STM32-Powered XIAO: Built with the STM32C5A3CG, featuring a 144MHz Arm Cortex-M33 processor, floating-point support, and DSP instructions for embedded control and sensor processing.
- CAN FD Connectivity Built-In: Two native CAN FD interfaces, with one channel connected to an onboard TCAN3403-Q1 transceiver and accessible CANH/CANL pads. Add an external transceiver to use the second channel.
- 6-Axis IMU with Programmable Heating: The onboard LSM6DS3TR-C accelerometer and gyroscope are paired with dedicated heating resistors around the sensor. GPIO-controlled heating enables programmable warm-up and, with temperature-feedback firmware, closed-loop temperature regulation to help reduce temperature-related drift in robotics and motion-sensing applications.
- 16MB External Flash: Store application data, sensor logs, configuration files, and CAN message records using application firmware.
- External Crystal for Communication Timing: An onboard high-speed external crystal provides a clock reference for CAN FD and other timing-sensitive applications.
- USB-C and Battery Charging: Develop over USB-C or build battery-powered devices using the onboard lithium-battery charging circuit and battery connection pads.

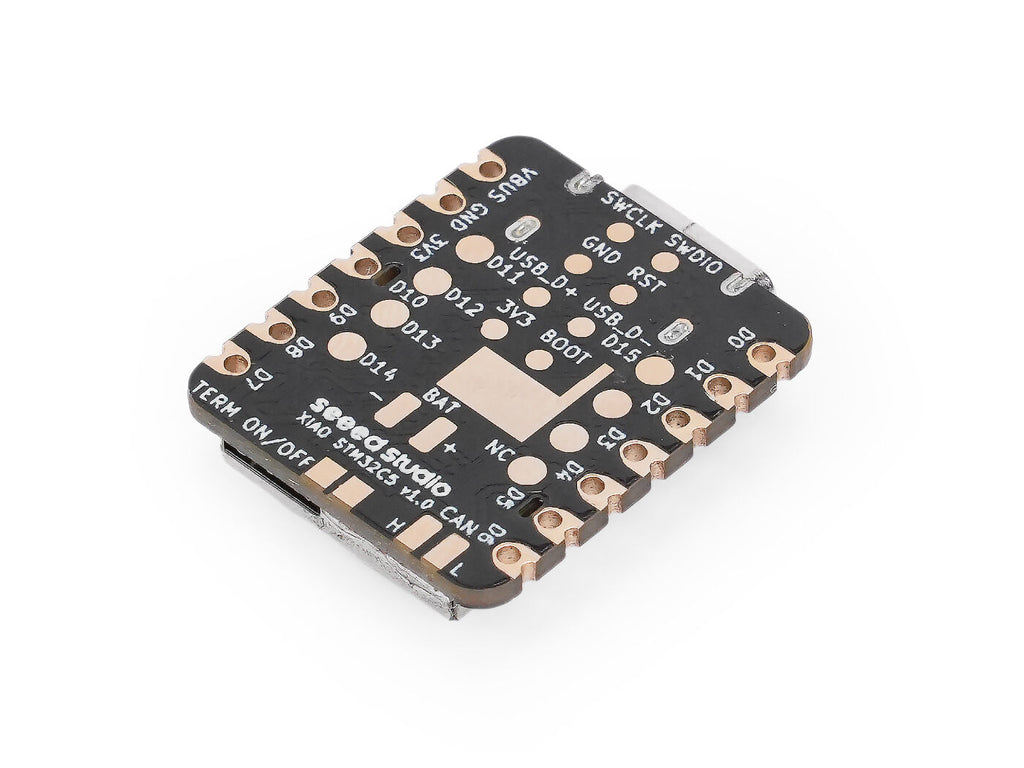

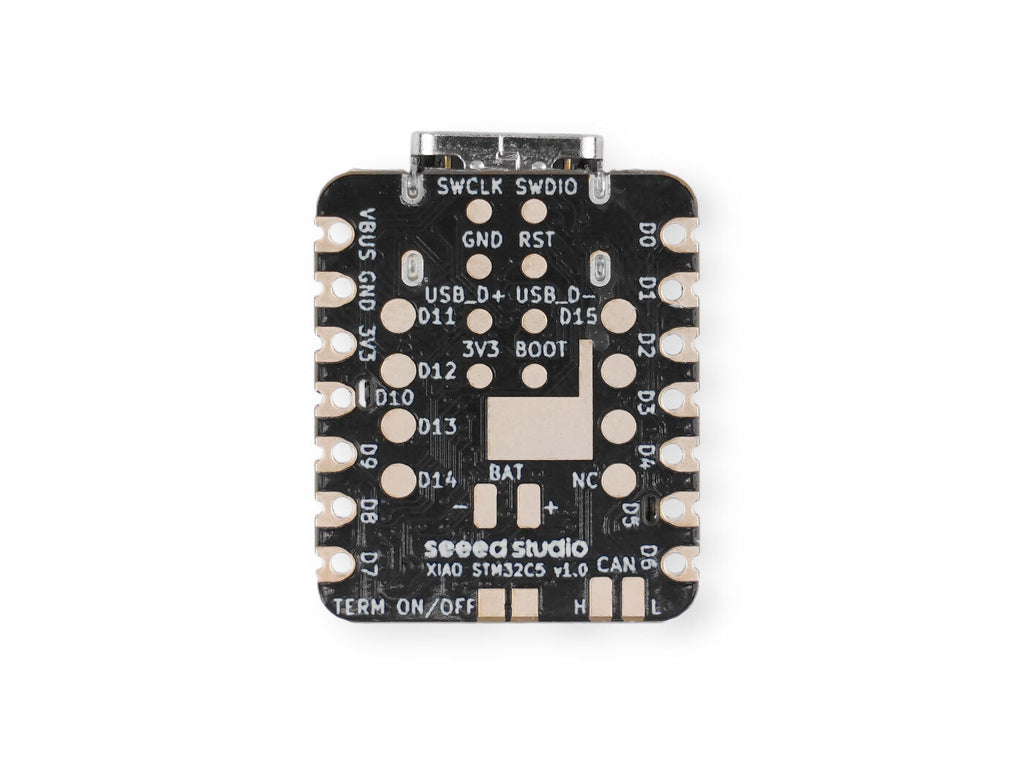

- Compact, Integration-Friendly Design: The XIAO form factor and castellated edge pads support breadboard prototyping with headers and integration into custom carrier boards.
Item | Specification | |
Product | ||
Microcontroller | ||
CPU | Single-core Arm Cortex-M33, up to 144MHz, with FPU and DSP instructions | |
Internal program Flash | 1MB | |
SRAM | 256KB | |
External Flash | 16MB | |
CAN Interface | 2 native FDCAN interfaces | |
Onboard CAN transceiver | 1 x TI TCAN3403-Q1 | |
Onboard CAN bus connection | CANH/CANL pads; use board GND as the signal reference | |
Second CAN channel | Digital TX/RX signals External CAN transceiver required | |
CAN termination | 120 ohms, enabled by default Disconnectable through a cuttable solder link | |
IMU | STMicroelectronics LSM6DS3TR-C, 3-axis accelerometer and 3-axis gyroscope | |
IMU heating | Dedicated heating resistors around the IMU with GPIO-controlled drive | |
Temperature regulation | Programmable warm-up Closed-loop setpoint regulation requires temperature feedback and suitable application firmware | |
External clock | Onboard 48 MHz HSE crystal with ±10 ppm initial frequency tolerance | |
USB | USB-C USB 2.0 Full Speed, 12Mbps signaling rate | |
Logic level | 3V3 | |
Power | USB-C 5V input Lithium battery through BAT pads | |
Battery charging | Onboard charging circuit | |
User button | Reset button Boot button | |
Indicators | User LED Charging LED | |
Debug interface | SWD | |

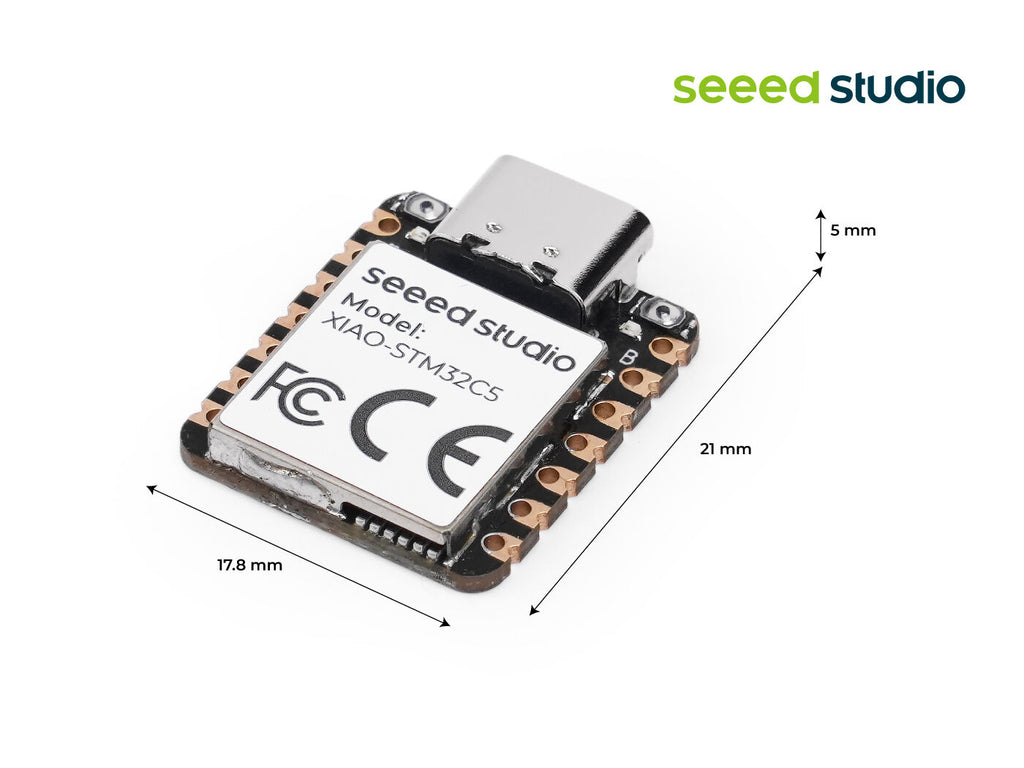

Form factor | Compact XIAO module with castellated edge pads | |
- USB-to-CAN FD Development: Build a compact interface for CAN device testing, message exchange, and host-based analysis with suitable firmware and software.
- CAN Sensor Nodes: Send motion measurements and data from external sensors over a wired CAN network.
- Robot and Motion Controllers: Communicate with external CAN-enabled motor drives for robotics and motion-control prototypes.
- Motion-Sensing and Stabilization Development: Explore IMU preheating and temperature regulation for robot startup routines, stabilization systems, and sensor-fusion experiments.
- Embedded Data Logging: Record selected CAN traffic, IMU measurements, and application events in external Flash.
- Portable Development Tools: Create battery-powered monitoring devices, test fixtures, and compact diagnostic prototypes.
Partlist
| HSCODE | 8543709990 |
| USHSCODE | 8517180050 |
| UPC | |
| EUHSCODE | 8543709099 |
| COO |
