- Bluetooth® LE 5.0
- Long battery life: Replaceable lithium-ion battery, more than 5 years (0dBm/500ms in default configuration).
- Long-distance transmission: Up to 130 meters in open areas.
- Simple Installation：Pull out the insulating film and it can be pasted and installed, reducing construction costs.
- UV Protection: Suitable for UV-sterilization lamps and similar scenarios, without altering appearance.
BC03 has a high-gain omni-directional BLE antenna, low-ower consumption, and user interaction:
- Enhanced Beacon Broadcasting Capability
Optimized BLE advertising stability and RSSI consistency, improving indoor positioning accuracy and robustness in complex environments.
- Antenna Design
Excellent radiation efficiency and directional consistency, onboard antenna, thus achieving a longer communication range and more stable communication without precise adjustment of the installation direction.
- Longer Battery Life
Further optimized low-power design. Under the same configuration (0 dBm / 500 ms), BC03 achieves large-scale and long-term deployment.
- LED Status Added
A blue LED provides intuitive device status feedback during power-on and operation, display the device's power-up and upgrade status.
- BLE Indoor Positioning System
GPS has proven its ability to locate outdoors. Now, we also tend to move to indoor positioning, and Bluetooth beacons make indoor precise positioning possible. Combine with SenseCAP T1000 Tracker or SenseCAP T2000 Trackerto build an indoor positioning solution.
Deploy Bluetooth beacons in your target area, the tracker receives the signal sent by the beacon, and the positioning accuracy is at the meter level (2-3 meters). It can realize functions such as asset tracking, route planning, reverse car search, etc., and can be integrated into applets and APPs.
SenseCAP T1000 Tracker and SenseCAP T2000 Tracker are LoRaWAN® tracker that utilizes GNSS/Wi-Fi/Bluetooth for precise indoor & outdoor location tracking. It's ideal for a variety of location-based applications.
We provide a open-source Bluetooth indoor positioning system designed to work seamlessly with SenseCAP BLE Beacons and SenseCAP LoRaWAN Trackers.
This solution is fully open-source and customizable, allowing users to build, modify, and integrate their own backend services based on our GitHub repository.
- General Specification
Parameter | Specification |
Material | ABS（Anti-UV） |
Color | White |
IP rate | None |

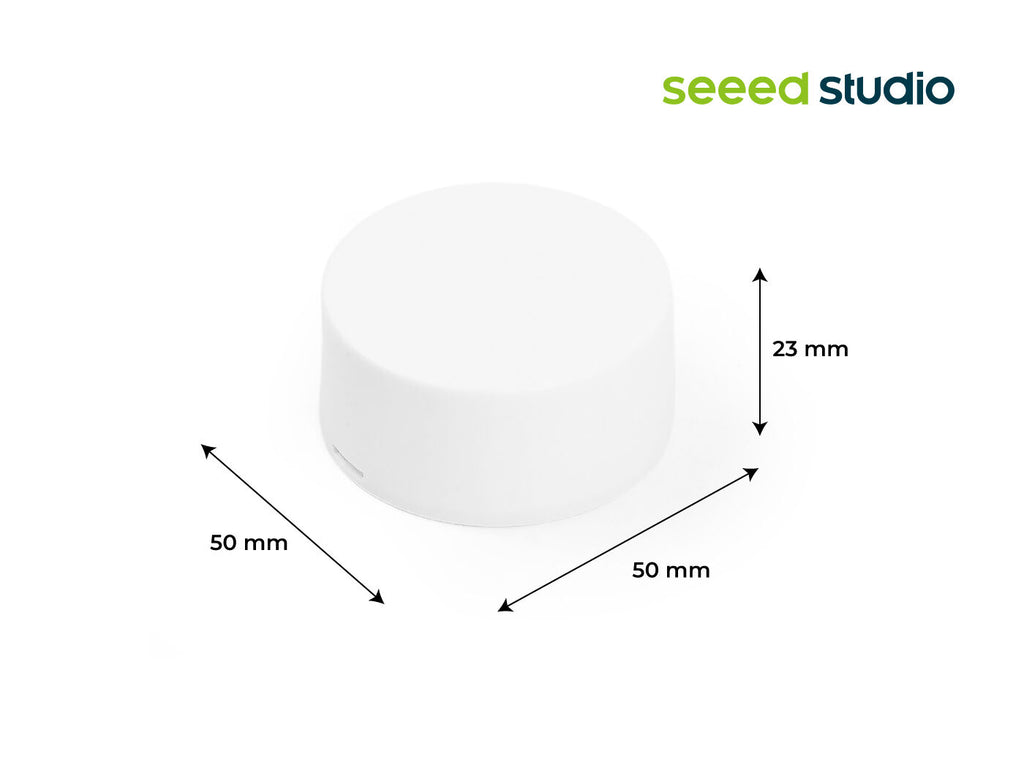

Dimension(L*W*H) | Φ50*20.5mm |
Weight | 45g(include battery) |
Battery | Lithium-ion battery, 2400mAh |
Chip | nRF52 series |
Bluetooth Version | BLE 5.0 |
Bluetooth Protocol | iBeacon |
Sensors | Accelerometer, Optional |
LED | 1 × Blue LED |
APP | SenseCraft APP |
Working Temperature | -20~60℃ |
Battery Life | More than 5 years (0dBm/500ms in default configuration). |
- Default broadcast parameters
Parameters | Default Value |
UUID | 5EEEDBCA-AC02-43B0-B0CF-C6EB07647825 |
Major | Assigned from the device MAC address (lower 2 bytes) |
Minor | Assigned from the device MAC address (upper 2 bytes) |
Measured power | -59dBm |
Tx Power | -40 ~ +4 dBm, default 0 dBm |
Adv Interval | 20ms ~ 30s, default 500ms |
Password | 12345678 |
Device Name | 03 |
Battery Service | Battery icon display |
- Compatibility information
System | Devices |
BLE | BLE 5.0+ |
iOS 7.0+ | iPhone 4S, iPhone 5/5C/5S, iPhone 6/6Plus/6S/6S Plus, iPhone 7/7Plus, iPad mini/mini2/4/Air/Pro, etc. |
Android 4.3+ | Samsung, XIAOMI, HUAWEI, ONEPLUS, vivo, OPPO, etc. |
- Stores
- School
- Offices
- Conferences
- Logistics
- Home Automation
BC03 Beacon Specification V1.1
Indoor Bluetooth Beacon BC03 | x1 |

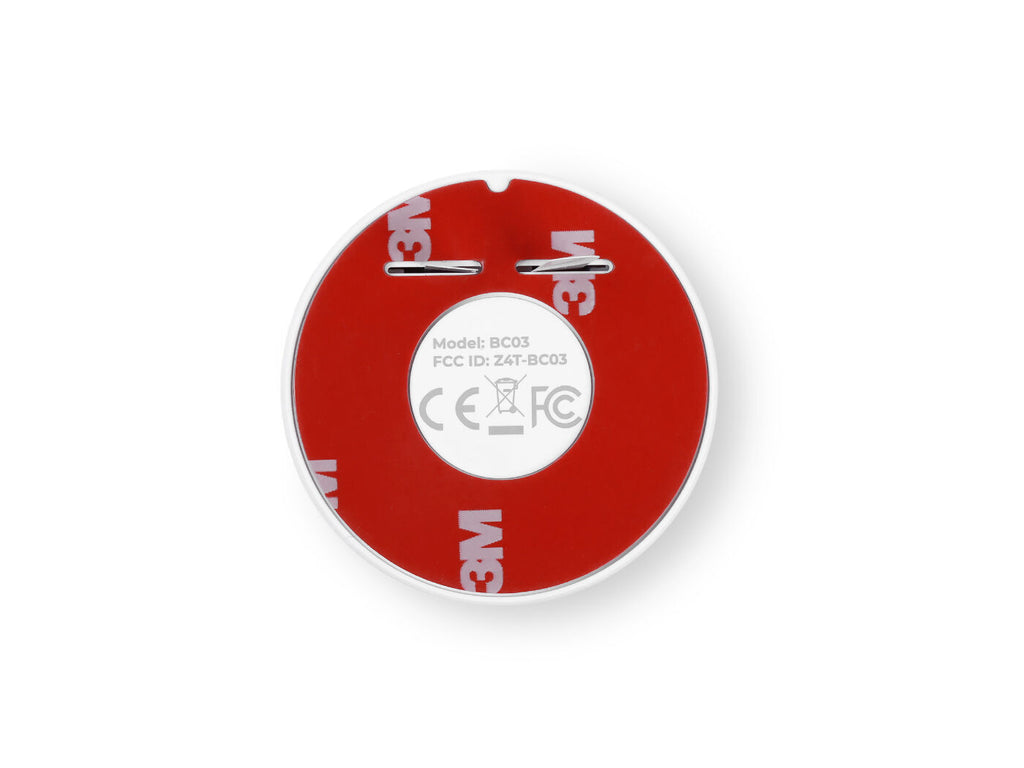

3M Sticker（Pre-taped） | x1 |

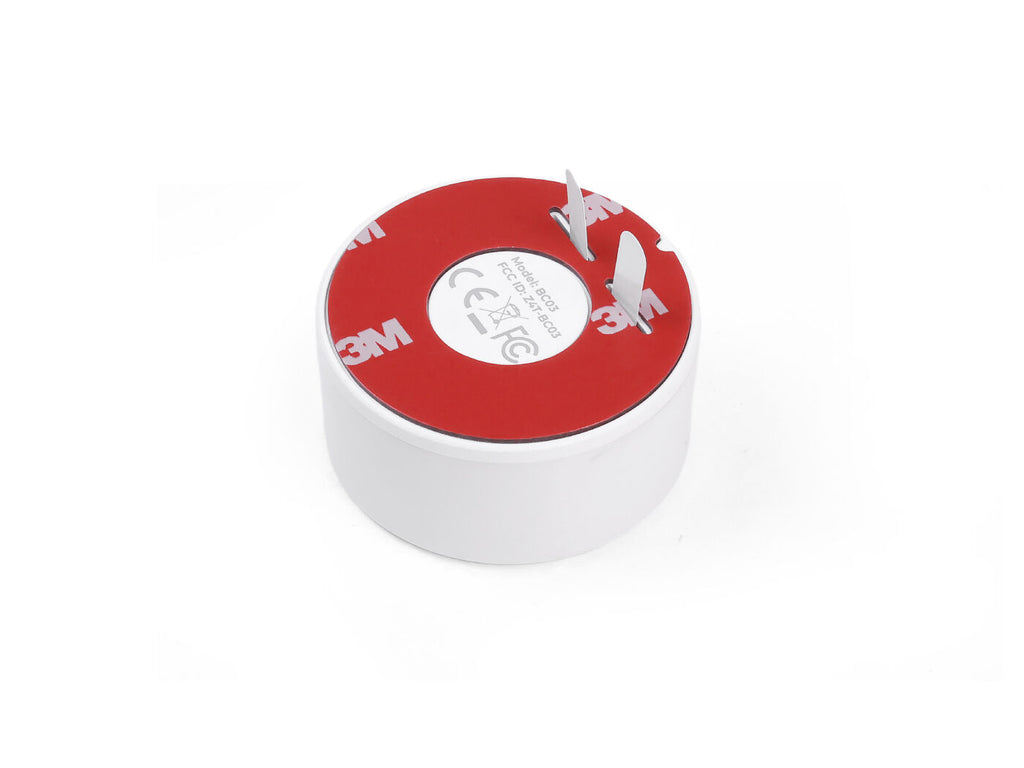

Insulating film | x2 |
| HSCODE | 9014800090 |
| USHSCODE | 9014801000 |
| UPC | |
| EUHSCODE | 9405413910 |
| COO | CHINA |
