SenseCAP Solar Node P1-Pro for MesCore

MeshCoreTM is a multi platform system for enabling secure text based communications utilising LoRa radio hardware. It can be used for Off-Grid Communication, Emergency Response & Disaster Recovery, Outdoor Activities, Tactical Security including law enforcement, private security and also loT sensor networks.

Note:

• To replace the battery, use Button-top 18650 battery. com: 4pcs 18650 USB Battery Charger Rechargeable 3.7V li ion Batteries for Universal Charger(4Pack Button Top Type Battery Four-Slot Smart Charger) : Electronics to see the reference battery.




• Utilizes a 5W solar panel in combination with 4*18650 batteries with a capacity of 3350mAh each. This setup ensures continuous operation even in the absence of sunlight, effectively solving the problem of outdoor power supply.
• The device comes pre-flashed with MeshCore firmware at the factory.
• Features a built-in XIAO L76K GPS module, enabling high-precision real-time positioning. It supports real-time sharing of location information, providing reliable location assurance for outdoor activities.
• It is suitable for long-term outdoor use.
• The communication range between the two devices can reach 8-9KM in open areas. It can seamlessly integrate into the MeshCore ecosystem and be used as an outdoor node or repeater to easily expand the Mesh network, enhancing network coverage.



  • Accessory OptionsIf you need an antenna with higher gain, we recommend the LoRa-Fiberglass-Antenna-Kit-with-base-860-930MHz-3dBi-360mm-p-Seeed Studio - Seeed Studioand the RF Explorer LoRa-Fiberglass-Antenna-Kit-902-930MHz-5.8dBi-800mm-Seeed Studio - Seeed Studio.
    • Plug-and-play: Comes with a standard RF cable, which can be directly inserted into the pre-drilled hole (standard D-shaped hole) on the Solar Node bracket
    • Three-step installation: Align → Insert → Lock




      Main controller	Xiao nRF52840 Plus (Nordic nRF52840, ARM® Cortex®-M4 32-bit processor with FPU, 64 MHz, 256KB RAM, 1MB Flash, 2MB onboard Flash)
      LoRa Module	Wio-SX1262 (Semtch SX1262, TXOP=22dBm@862-930MHz)
      GPS Module	L76K (Support GPS/GLONASS/Galileo)
      Antenna	LoRa: Type: Rod-shaped rubber antenna Frequency range: 868-915MHZ Gain: 2dbi
      	GNSS: GPS L1 C/A: 1575.42MHz GLONASS L1: 1602MHz BeiDou B1: 1561.098MHz
      	Bluetooth 5.0

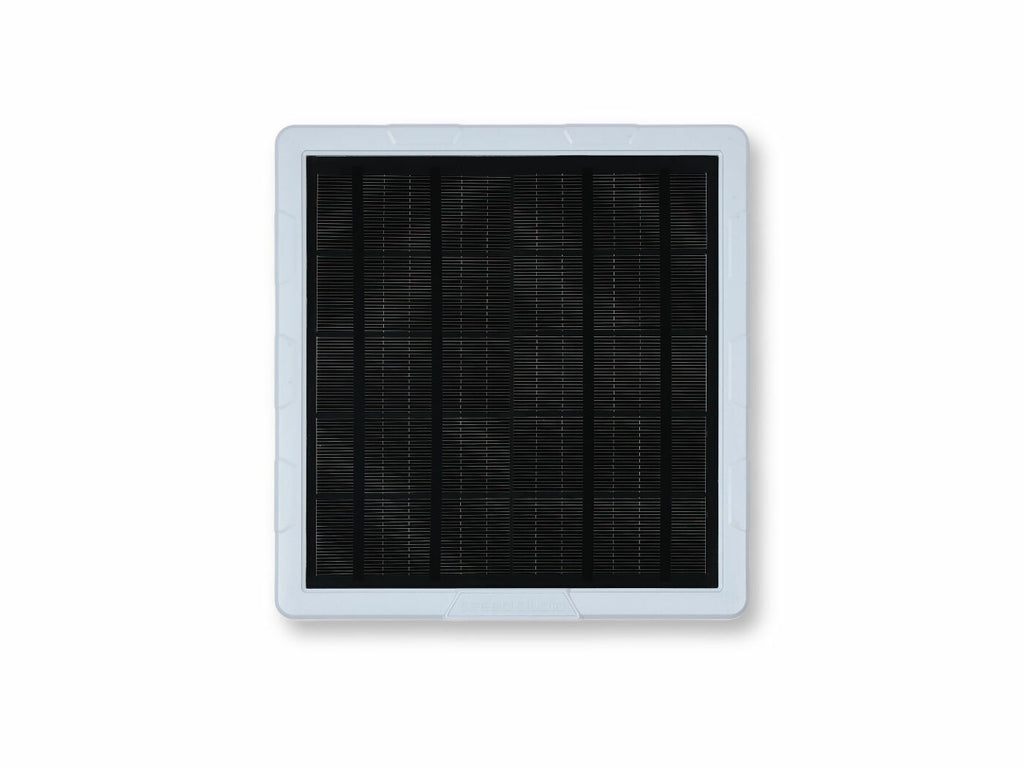

      Solar Panel	5W
      Interface	Grove *1: IIC/GPIO/UART
      	USB-C debugging

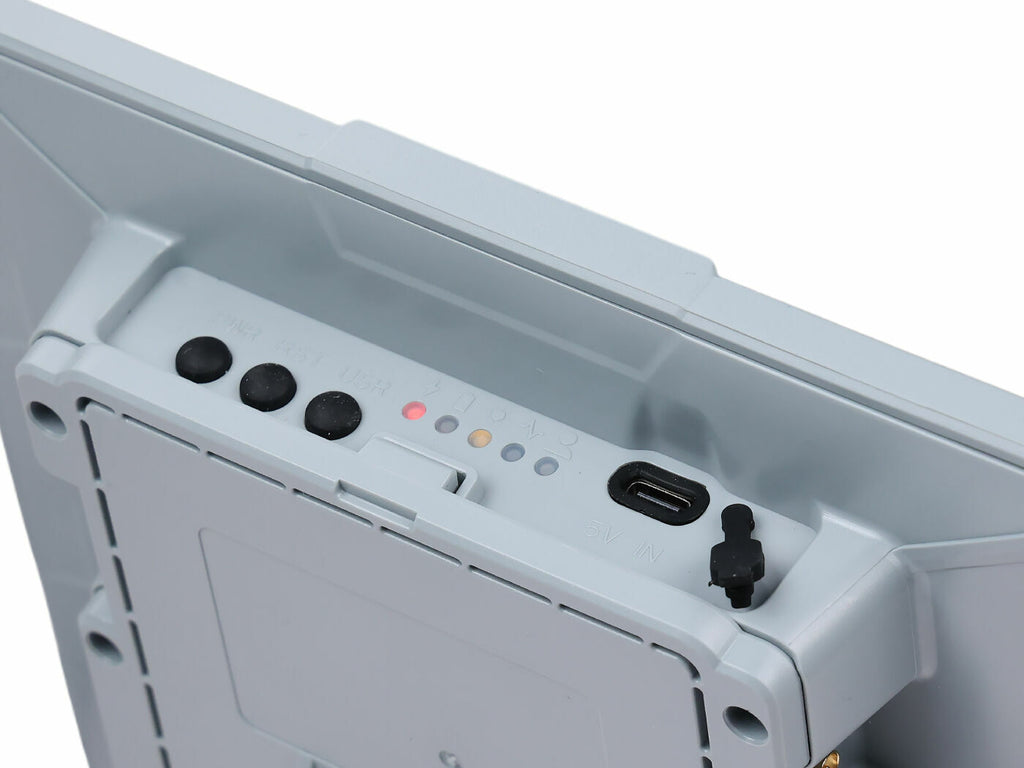

      Button	Power on/off
      	Reset
      	User-defined
      LED	Charging status indicator lights *2
      	Solar panel status indicator light *1
      	Mesh heartbeat light *1
      	User-defined *1
      Power supply	Type-C: 5V 1A
      	Solar power supply: 5V 1A

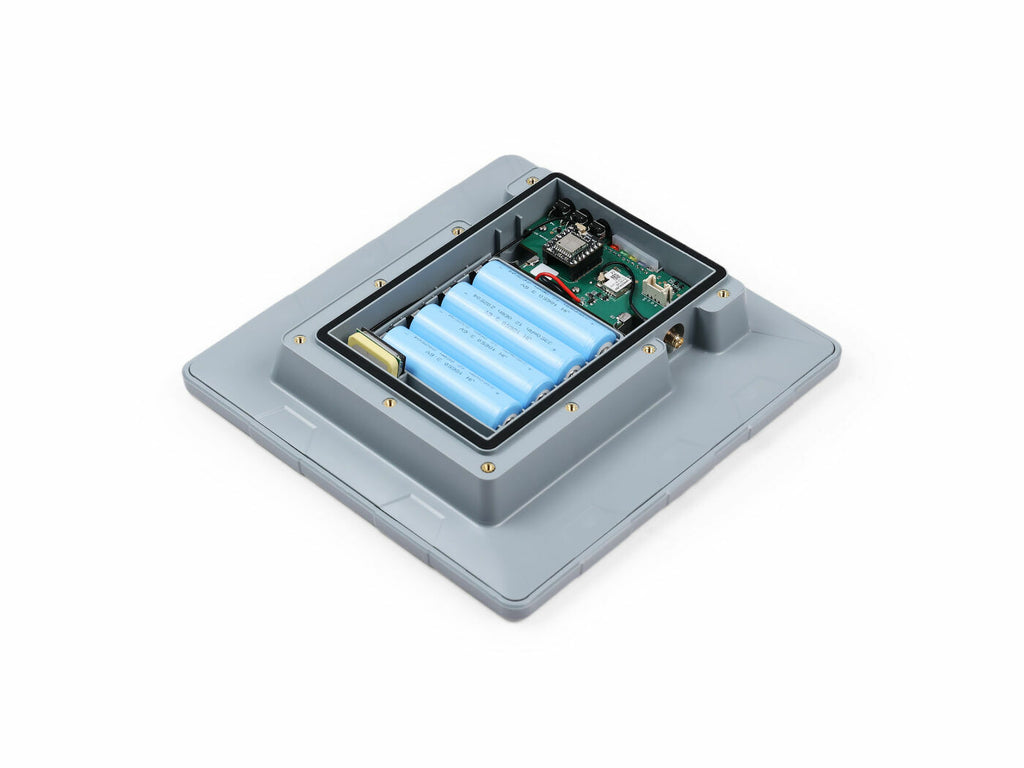

      Battery	4 x 18650 lithium batteries (3350mAh each) ● Supporting Type-C and solar charging. ● Discharge environment：-40 ~ 60°C ● Charging environment: 0 ~ 50°C
      Certification	FCC、CE
      Dimension	191.2 x 201.2 x 42.1 mm

• Diagram

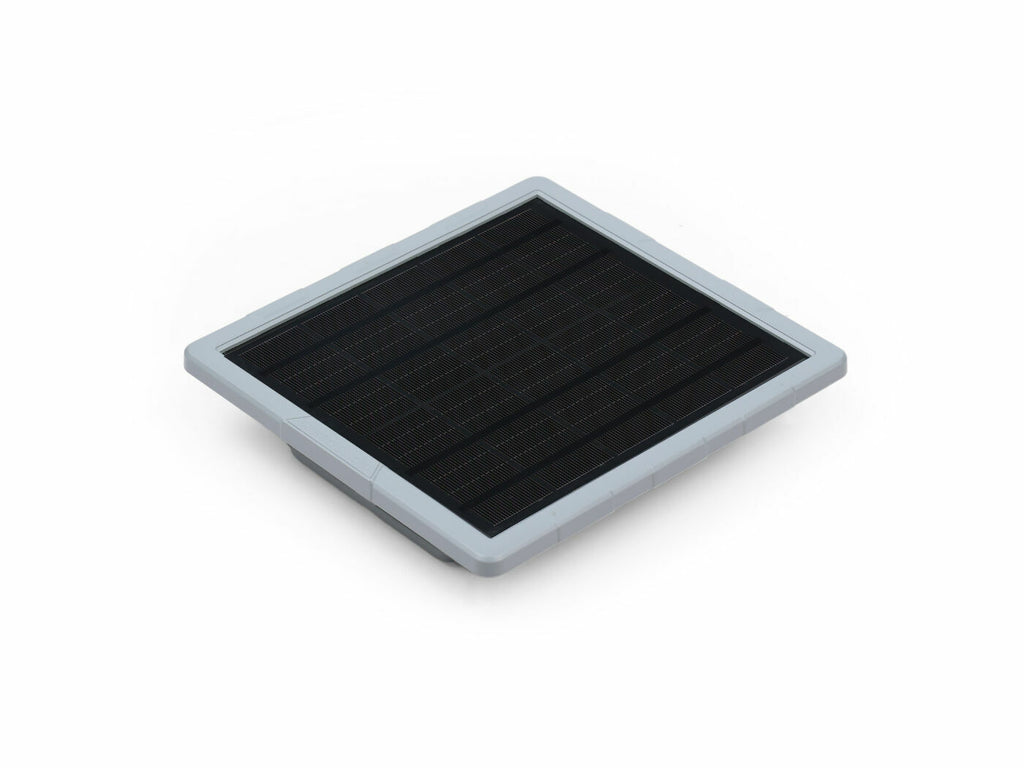

• Overall effect diagram

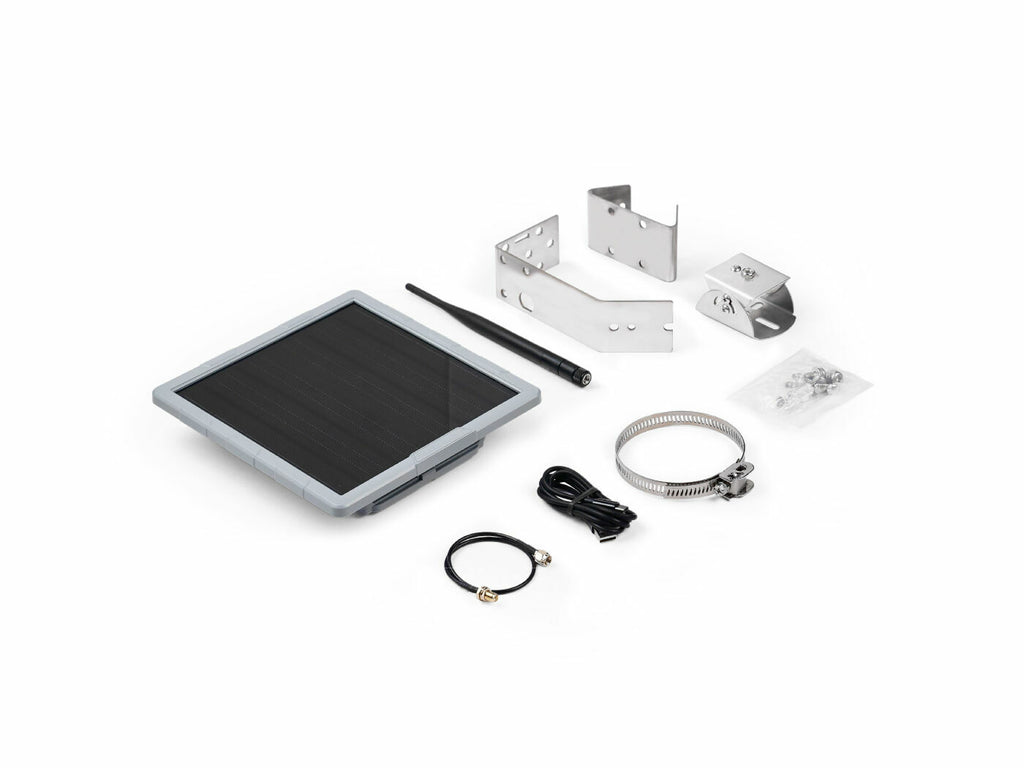

• Accessories diagram

• Interactive items

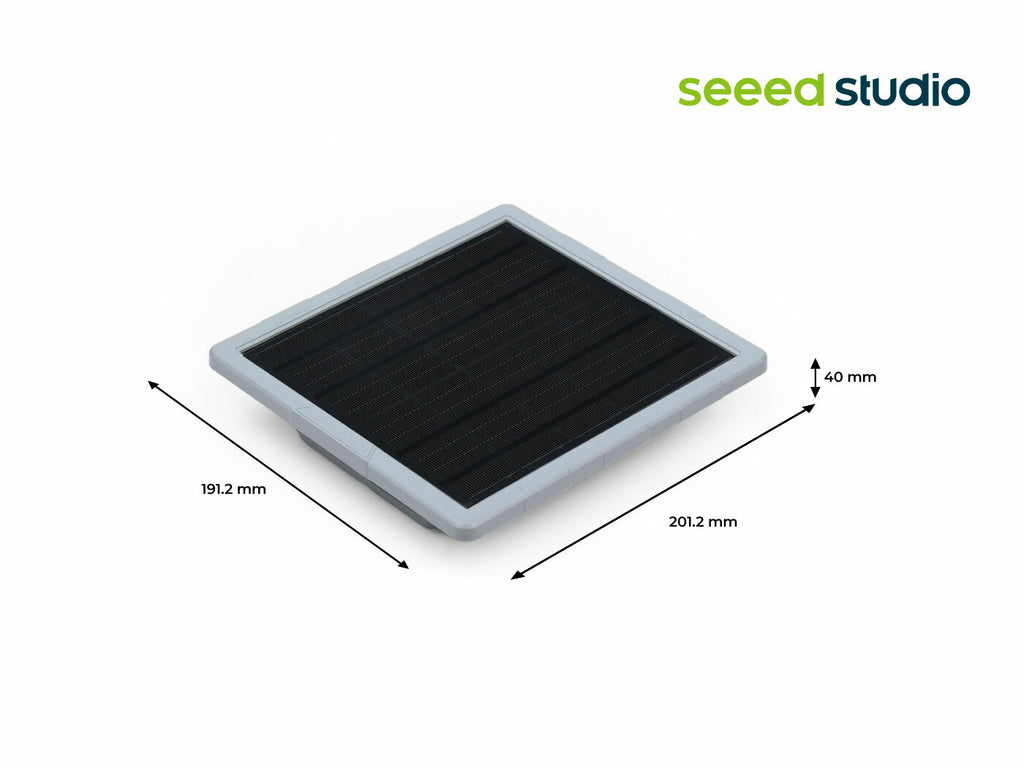

• Dimension diagram
