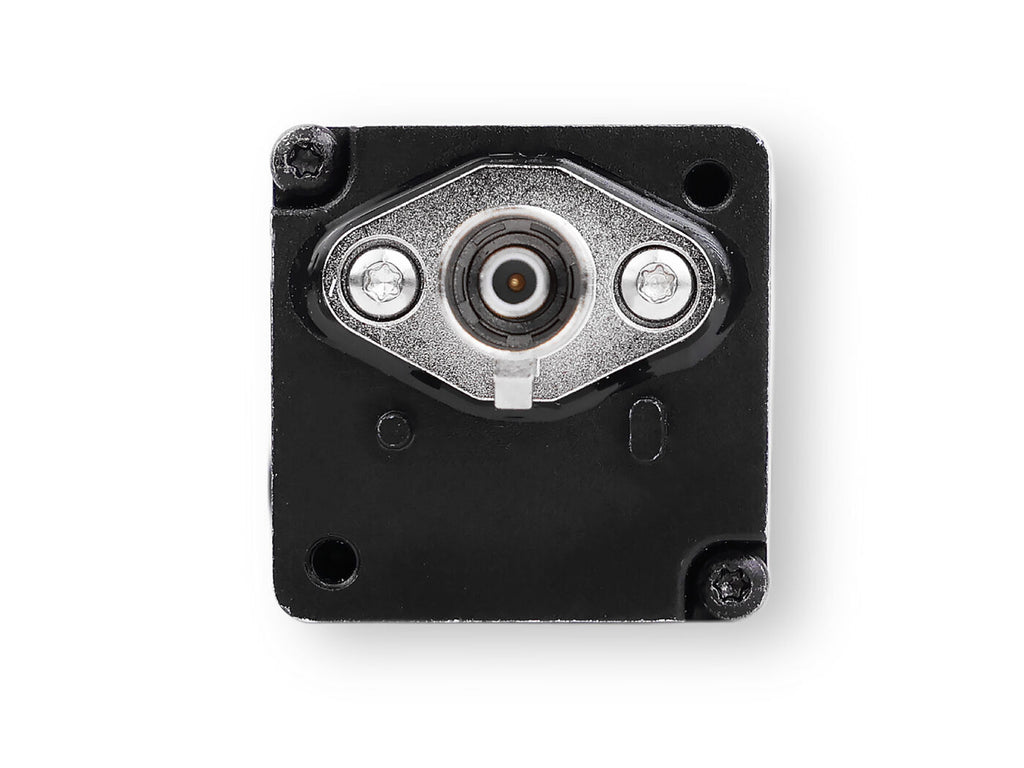

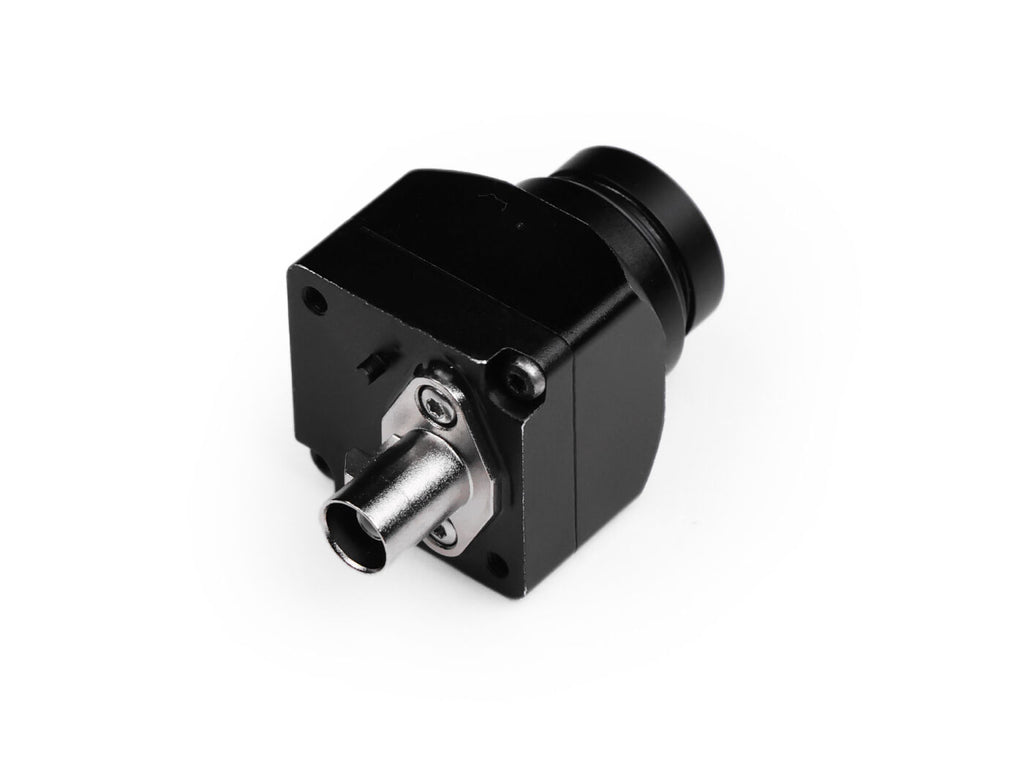

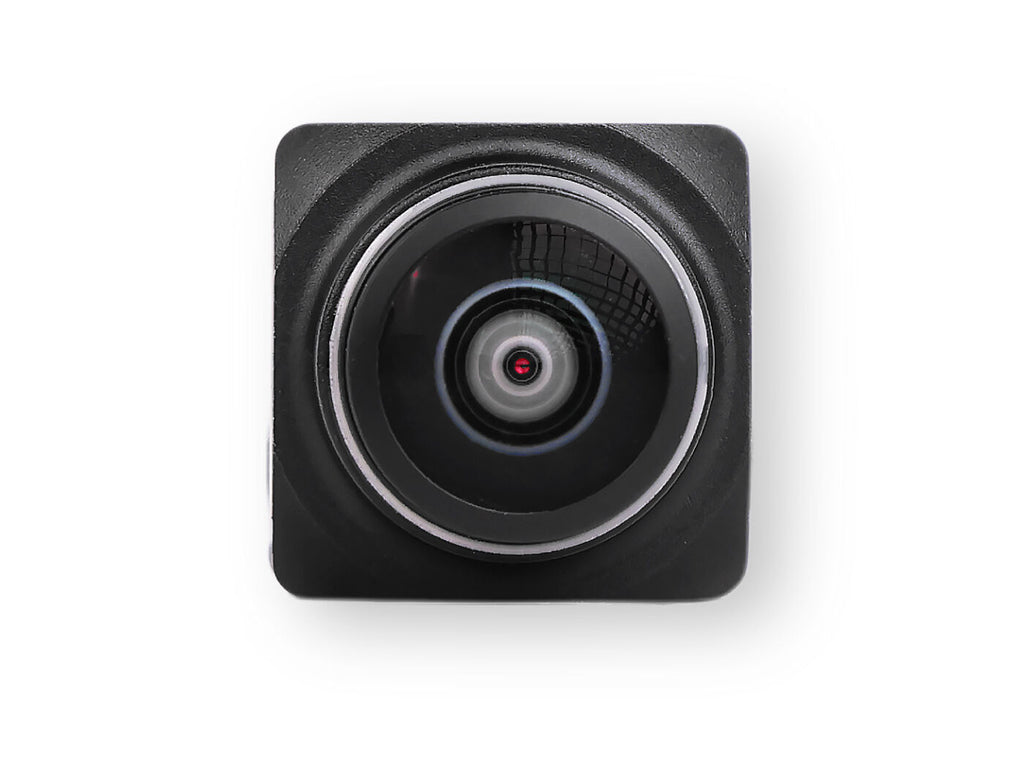

SG3S-ISX031C-GMSL2F is a 3MP GMSL2 camera equipped with SONY CMOS image sensor ISX031 and Maxim GMSL2 serializer MAX96717F. Its horionztal FOV is 196 degree and vertical FOV is 154 degree. It has an automotive-grade sensor with a well-tuned Image Signal Processor (ISP) that produces exceptional image quality, which comes with an IP67-rated enclosure, and is supplied with an AA lens that is focused and glued in factory.

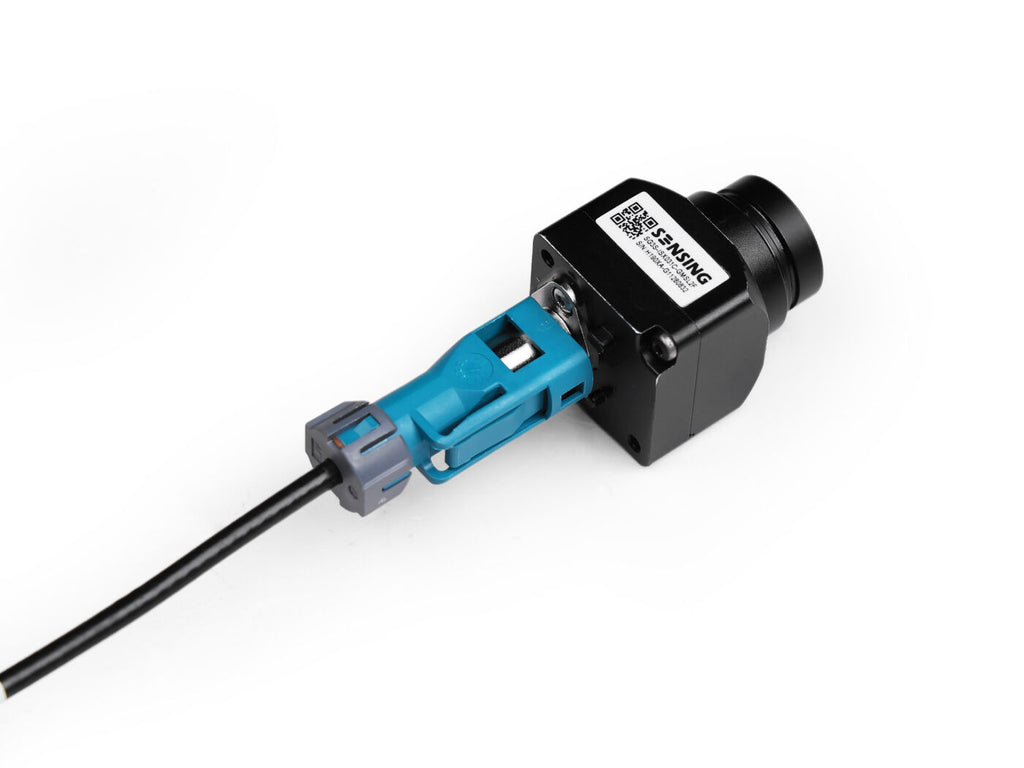

- GMSL Interface Equipped with Fakra-Z connector and GMSL2 protocol, this camera is ideal for robotics and automotive applications
- Wide FOV Provides 190-degree Horizontal FOV that is suitable for surround vision purposes
- Built-in ISP Provides built-in ISP that outputs uncompressed 3MP 8-bit YUV422 format data at 30fps
- HDR support Provides high dynamic range imaging for different lighting scenarios
- External trigger Supports external trigger of camera and synchronization among multiple cameras
Product | SG3S-ISX031C-GMSL2F-H190XA |
Voltage | 9V ~ 16V (Power Over Coaxial) |
Operating Temperature | -40℃~85℃ |

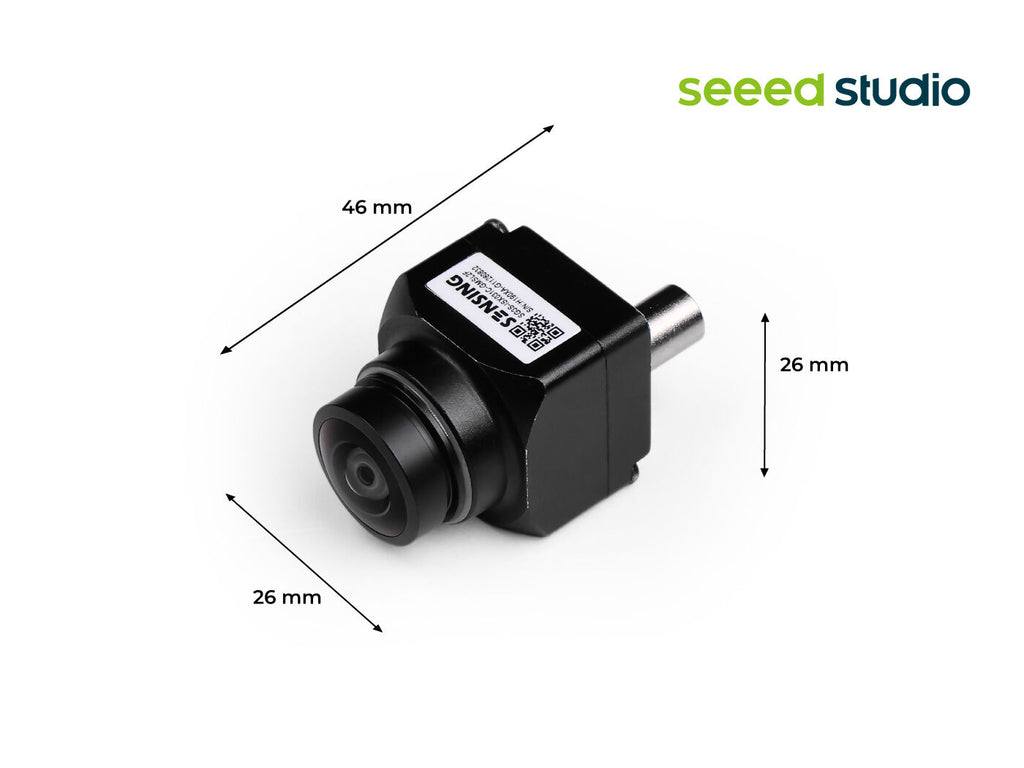

Mechanical Dimension | 25mm x 25mm x 18.6mm |
Communication Interface | GMSL2 |
HFOV | 196 degree |
VFOV | 154 degree |
- ADAS imaging
- BEV detection
- Robotics
Multi-GMSL Cameras for Real-Time Object Detection and 3D Reconstruction on Jetson AGX Orin

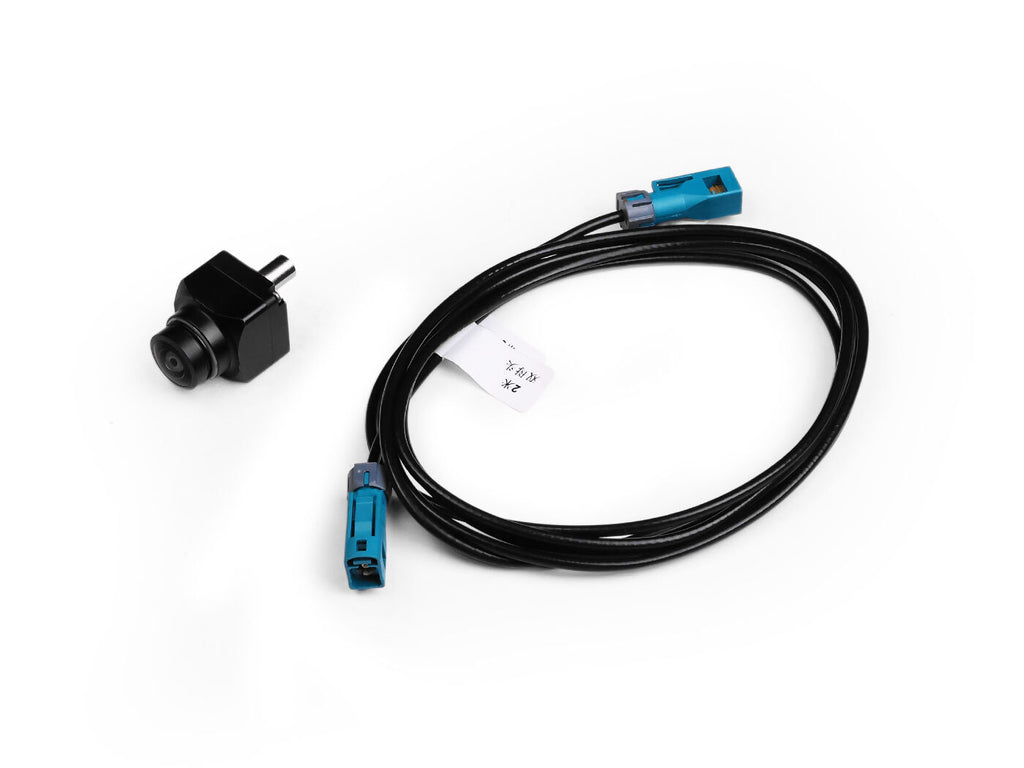

SG3S-ISX031C-GMSL2F-H190XA | x1 |

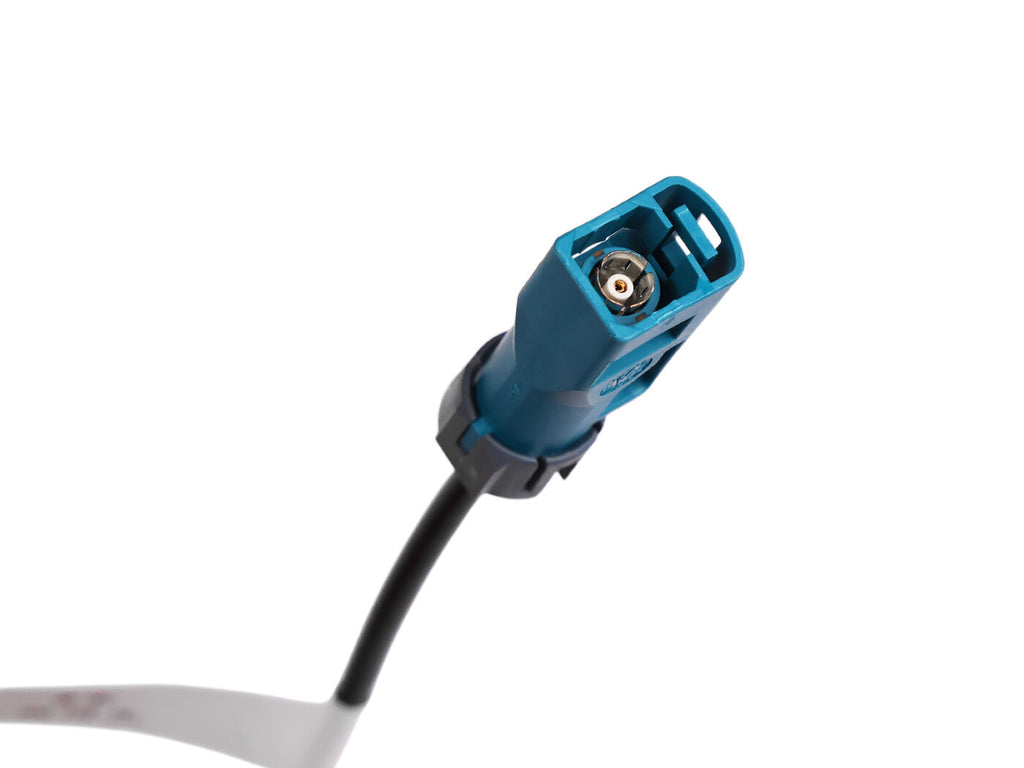

Coaxial Female-to-Female Cable | x1 |
| HSCODE | 8525891900 |
| USHSCODE | 8525895050 |
| UPC | |
| EUHSCODE | 8517600000 |
| COO | CHINA |
