Smart UPS Expansion Board for LattePanda IOTA (18650 Battery)

The LattePanda 18650 UPS Expansion Board is a high-performance uninterruptible power supply module engineered specifically for the LattePanda IOTA. It delivers a seamless, laptop-like power management experience through a true plug-and-play design. By leveraging the standard HID-UPS protocol, this LattePanda UPS module is natively recognized as a battery device in Windows 10 and 11, eliminating the need for drivers or custom programming. Its core function is to provide stable, continuous power, ensuring project stability and data integrity during unexpected power interruptions. Key features include intelligent hardware-level power management, an ultra-low power standby mode (~30μA), and a high-efficiency power path capable of supporting up to 8 hours of runtime with three 18650 cells. This makes it an essential component for mobile robotics, portable embedded systems, and any application requiring robust power-fail protection.

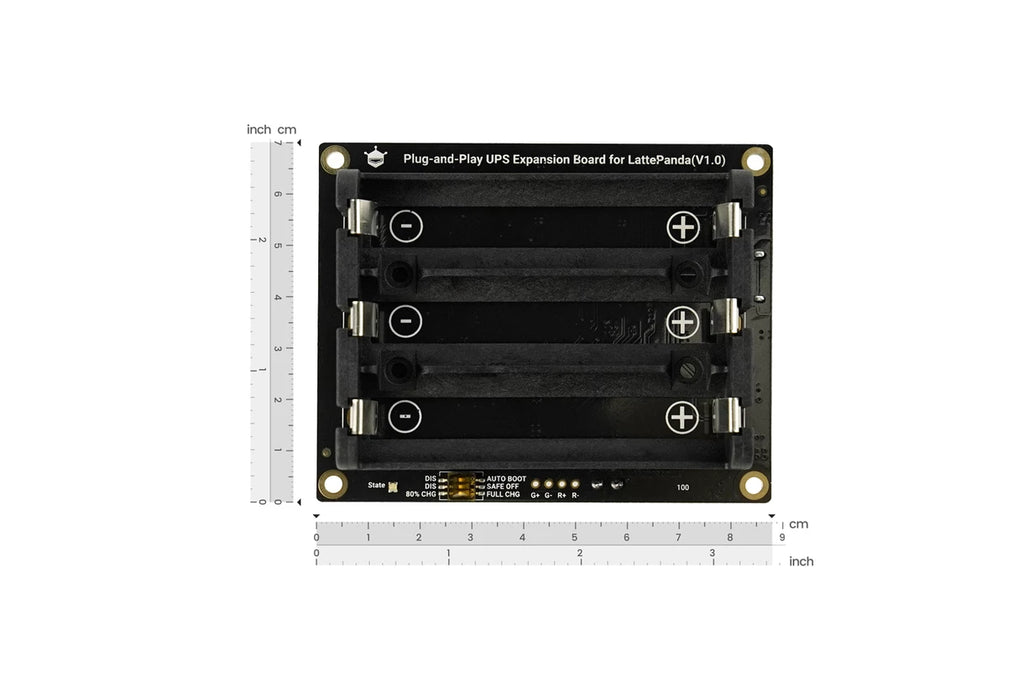

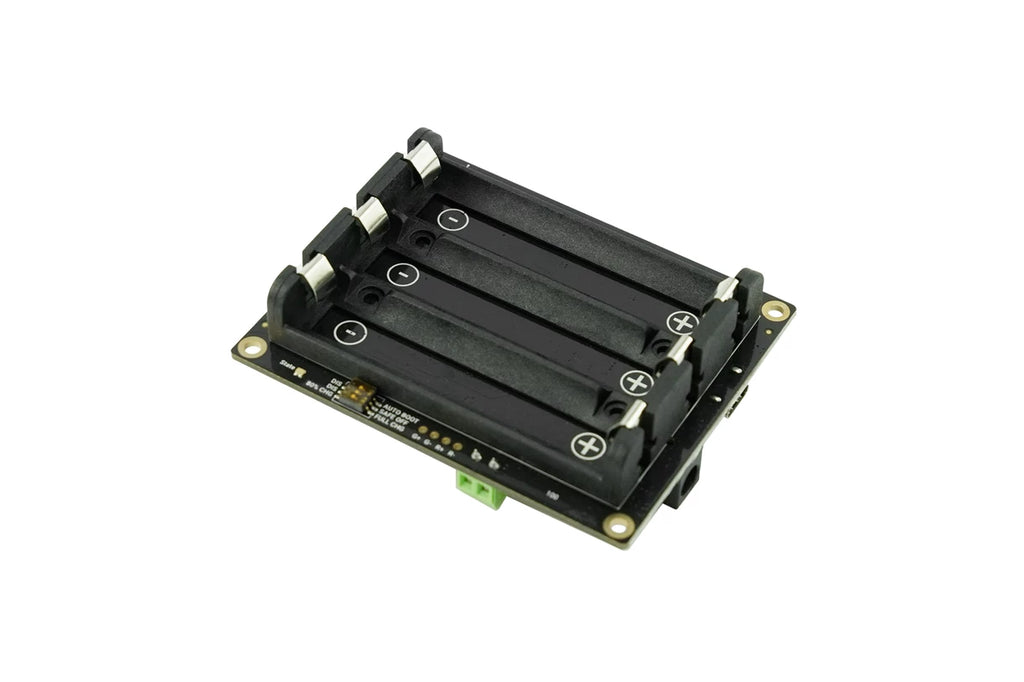

Figure: LattePanda IOTA & 18650 UPS Expansion Board

Plug-and-Play Simplicity

Integration is effortless thanks to the onboard HID-UPS protocol. When connected, the LattePanda IOTA's Windows operating system automatically identifies this 18650 UPS as a standard battery pack. This allows for immediate monitoring of battery status directly from the taskbar and ensures full compatibility with native system power policies, such as automated low-battery shutdown or sleep mode, without any software installation or configuration.

Intelligent Hardware-Level Power Management

This power management module provides users with direct, reliable control over critical power functions via an onboard 3-position DIP switch. This hardware-based approach allows for the configuration of essential behaviors like auto power-on when external power is applied, graceful system shutdown upon power loss, and setting the battery charging limit. This removes software dependencies and provides a robust, set-and-forget power management solution.

High-Efficiency for Extended Runtime

Designed for maximum energy efficiency, the power circuit minimizes conversion losses to prolong operational time. When equipped with three high-capacity 3500mAh 18650 lithium-ion cells, this uninterruptible power supply can sustain a LattePanda IOTA for up to 8 hours. This extended runtime is critical for applications that are mobile, deployed off-grid, or require long-term operation without access to a stable power source.

Ultra-Low Power Standby Mode

After the LattePanda IOTA performs a shutdown, the UPS expansion board automatically transitions into an ultra-low-power standby state, drawing a mere ~30μA of static current. This feature significantly reduces battery drain during long periods of inactivity, preserving the charge and protecting the overall health and lifespan of the 18650 cells, ensuring the system is ready for its next deployment.

Important Notes

• Battery not included (due to aviation safety regulations)
• Windows 10 / Windows 11 only (HID-UPS support is native in these OS versions)
• Compatible only with LattePanda IOTA

Applications:

• Untethered Mobile Robots
• Portable Cyberdeck or Workstation
• Off-Grid Data Logger & IoT Hub
• Interactive Art Installations & Kiosks
• Resilient Edge AI Device

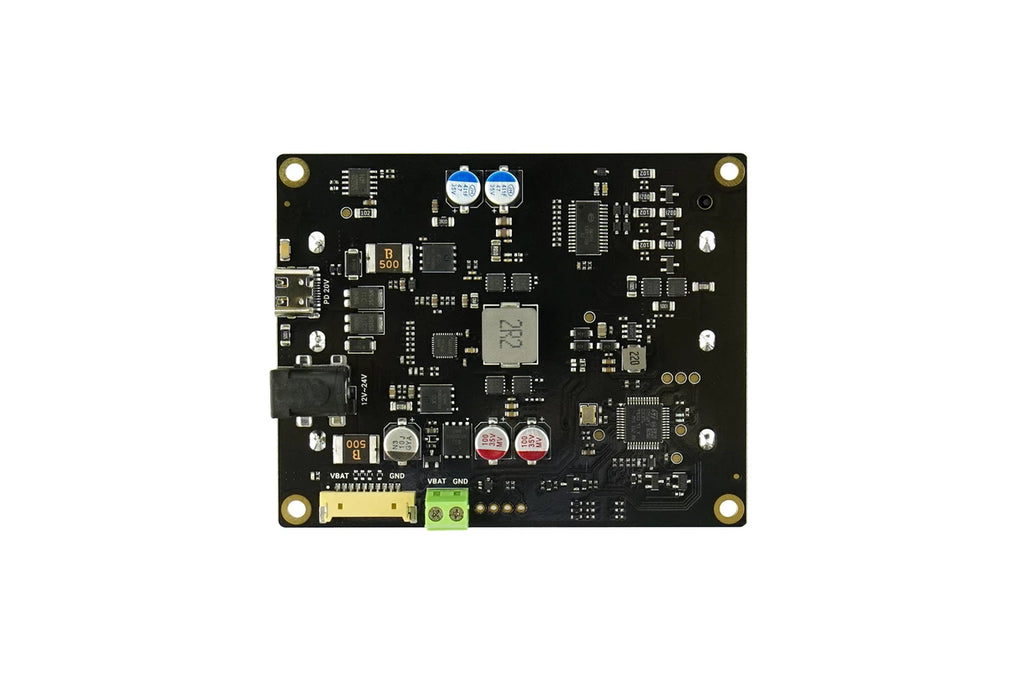

Specification:

• Charging Input:
        USB Type-C: Supports PD 20V input
        DC Jack: 5.5×2.5mm (center positive), 12–24V input
        Minimum Power Requirement: ≥36W

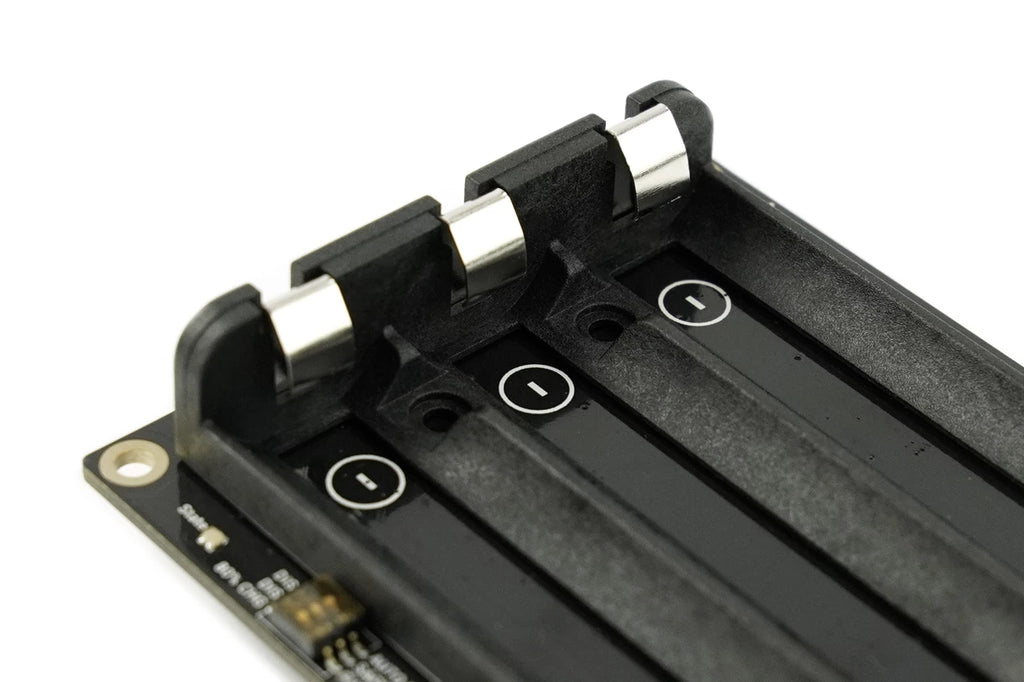

• Battery Configuration: 3 × 3.7V 18650 Li-ion batteries (user-installed)
• Max Charging Current: 1A
• Static Standby Current: ~30μA (after system shutdown)
• Onboard Output Interface: MX1.25 10-Pin connector (for LattePanda board)
• OS Compatibility: Windows 10 / Windows 11 (native HID-UPS support)
• Compatible Board: LattePanda IOTA
• Dimensions: 88mm × 70 mm

Documents:

• Product wiki

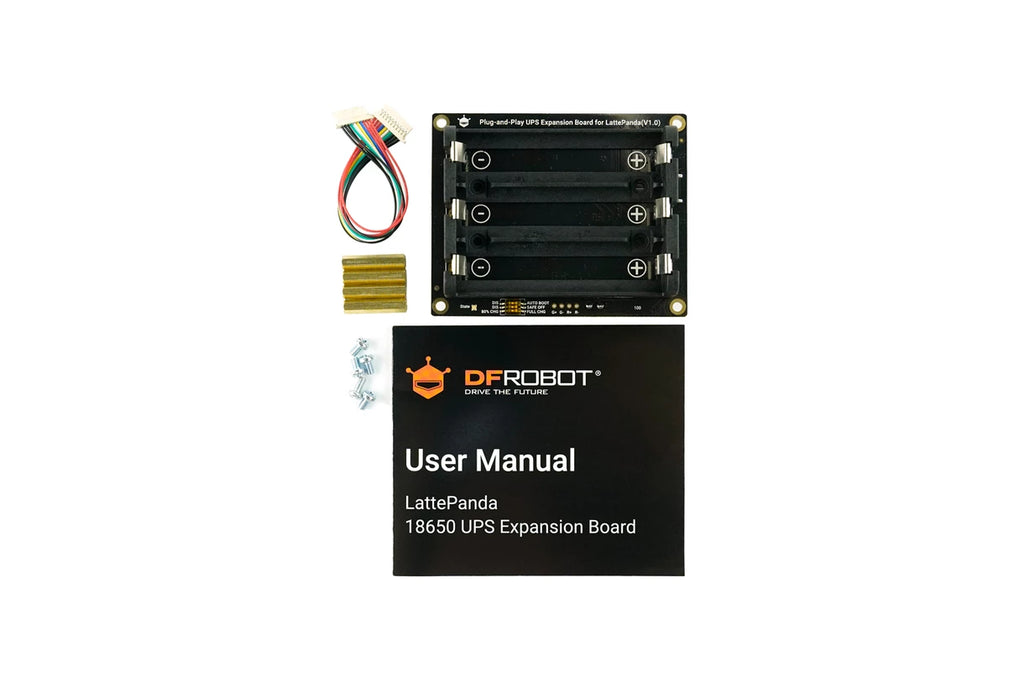

Product Includes:

• UPS Expansion Board x1
• 10-Pin Cable x1
• M3 Hex Standoff x4
• M3 Screw x4
• User Manual x1
