Description

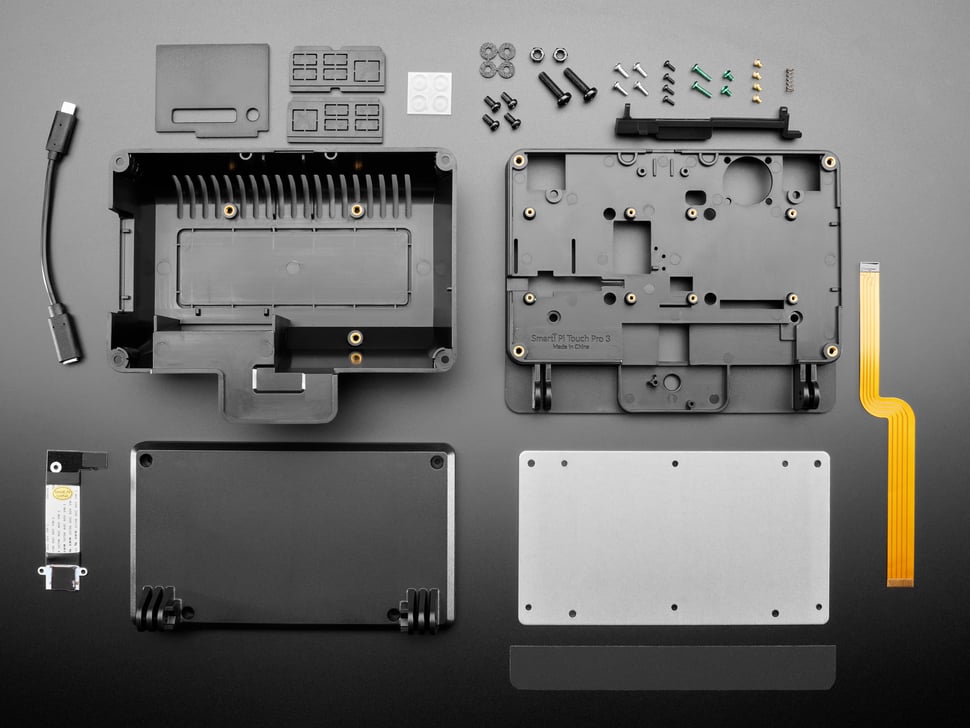

The SmartiPi Touch Pro 3 is a versatile enclosure designed for the Raspberry Pi Touch Display 2 and is compatible with Raspberry Pi models 3, 4, and 5. It features interchangeable large and small back covers, creating a spacious internal cavity to accommodate HAT boards or custom components. A dedicated space beneath the display also allows for mounting the Raspberry Pi camera.
This is the Large 45mm deep cover, but we also offer SmartiPi's smaller 25mm deep cover.

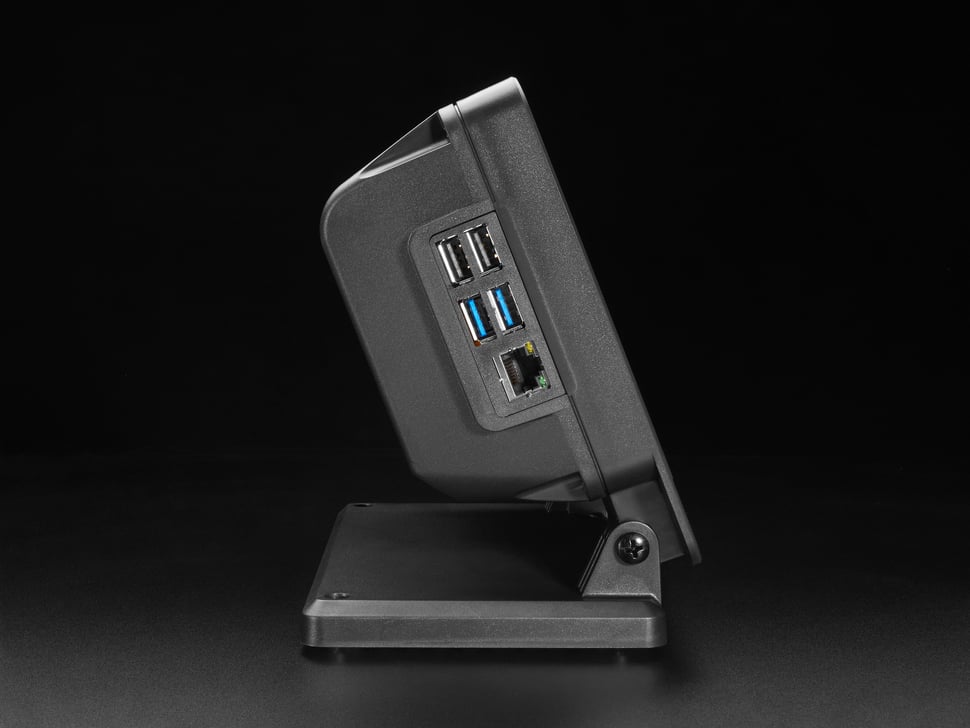

For Raspberry Pi 5 users, a built-in side switch enables convenient power control (dependent on the OS). Once assembled, the case provides easy access to USB and Ethernet ports on the side, while the HDMI and audio ports are accessible at the back. A fan is not included but can be added as an optional accessory.
Raspberry Pi and Raspberry Pi Touch Display 2 are not included.
Technical Details
Specifications:
- Cooling fan is not included
- The Raspberry Pi Touch Display 2 is powered by the Raspberry Pi GPIO ( extended GPIO pins are required if using a HAT )

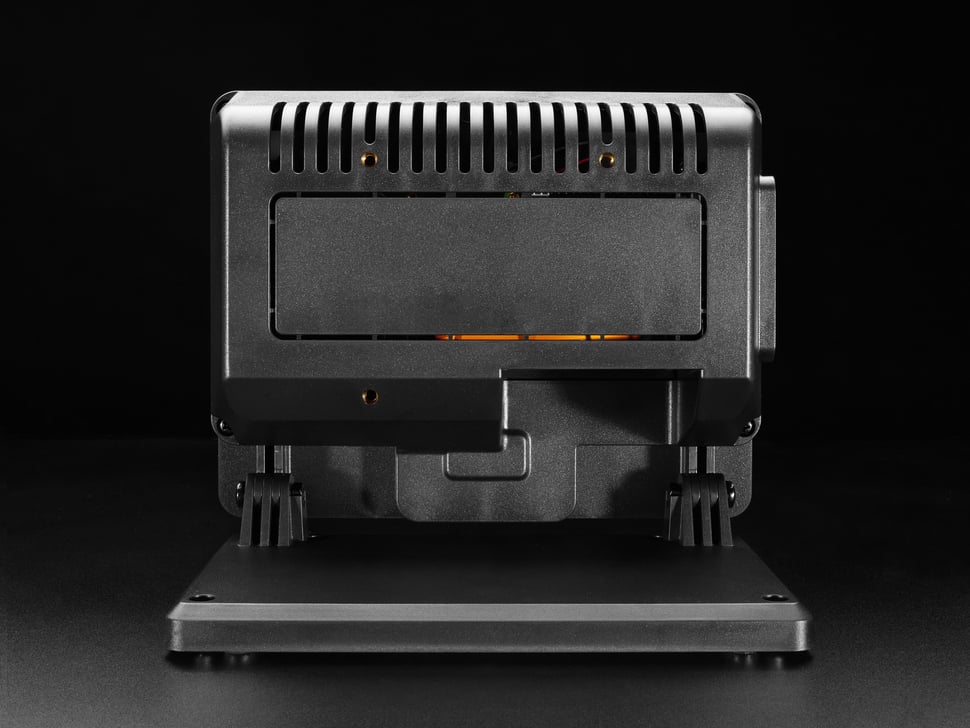

- The power, HDMI, and audio jack on the Raspberry Pi are accessible on the back of the case
- A removable panel near the Raspberry Pi ports allows the flexibility of accessing HAT boards and connectors
- An included micro SD extender allows access to the micro SD card at the top of the case
- 75mm VESA mount points on the back of the case
- Weighted base
- Punch out USB/Ethernet covers for Raspberry Pi 3, 4, and 5
- Mounting point for Raspberry Pi camera V2 and V3 ( wide angle and standard lens)
- Back panel on the back cover can be cut out with a utility knife ( allows for customization if desired)
- Front adhesive label to cover the camera hole ( customized graphics for 100+ pieces)
- Tilting display
- Side button to actuate the on/off microswitch on Raspberry Pi 5
- Secondary set of interior mounting points for a development board, HAT, or alternative Raspberry Pi position
For product support, CAD files, replacement parts and warranty for SmartiCase / SmartiPi products please contact SmartiCase directly.
