Features
- Remote ON/OFF–Turn electrical devices on/off from anywhere
- App Support –Free iOS and Android mobile App eWeLink
- RF Remote control–Turn on/off by 433MHz RF Remote indoors
- Independent control–Control each gang separately
- 3 Working Modes– Switch among interlock/self-locking/inching modes
- Adjustable Delay Time– Turn on devices for 1-16s in Inching mode
- DIN Rail Mounted– Great for industrial control
- Sync Status–Real-time device status provided to App
- Timing–Set scheduled/countdown timers to turn on/off at specified time
- Share Control– Control your smart home together with your family
- Scene–Turn on/off a gang of devices with one tap
- Smart Scene–Triggered on/off by temp, hum or other environmental conditions from sensor
- Compatibility –Works perfectly with Amazon Alexa, Google Assistant, IFTTT, Google Nest
Description

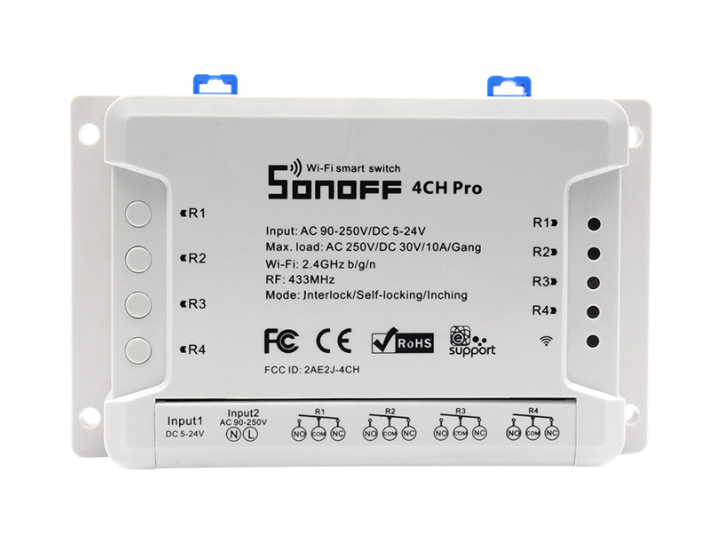

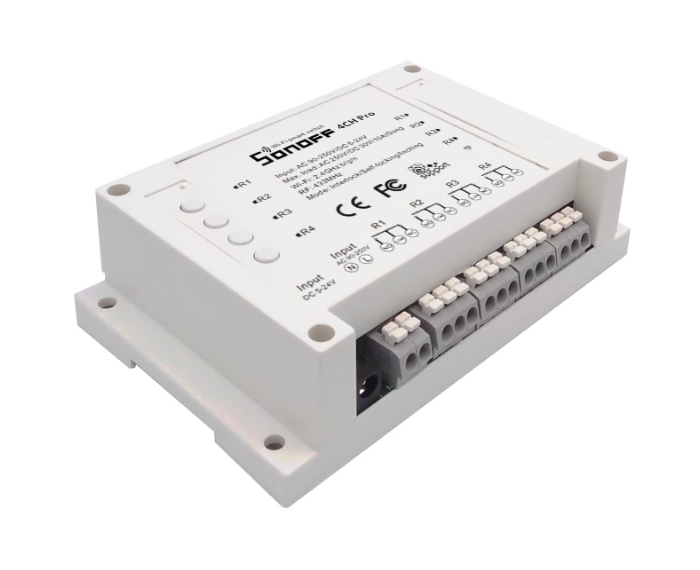

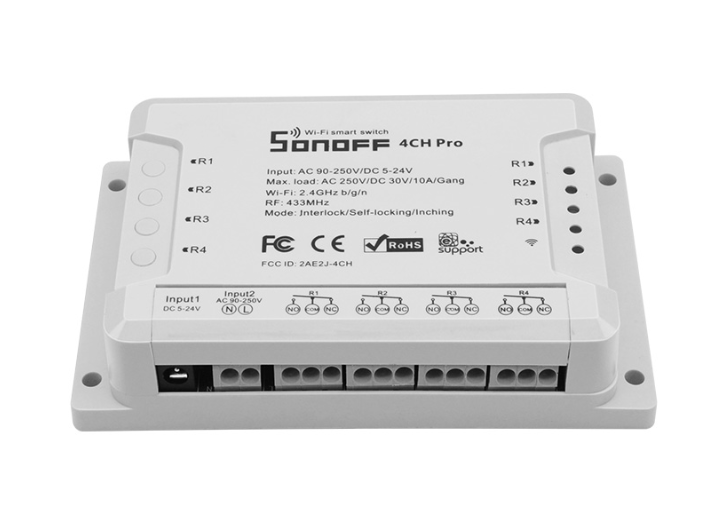

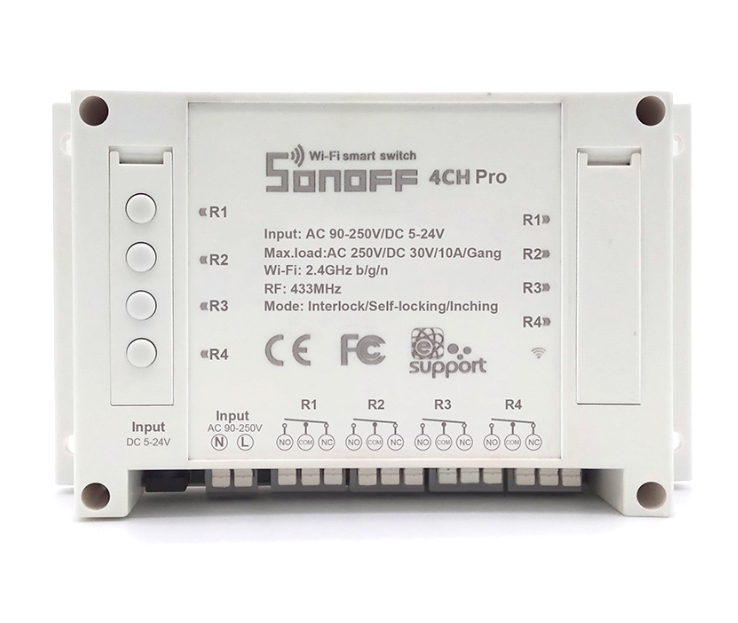

Sonoff 4CH Pro R2 are 4 gang WiFi switches. They support switching among 3 working modes: interlock/self-locking/inching mode, and both supports to set 1-16s delay in inching mode. This feature allows you to let your switch turn on for a few seconds then goes off, which works like a pulse switch. They integrate with a 433.92MHz RF receiver module, making them possible to be controlled by RF Remote. The smart switches are DIN Rail mounted.
Users can remotely turn on/off the connected lights/appliances by iOS/Android App eWeLink or 433MHz RF Remote. They can create 8 enabled single/repeat/countdown timers to turn on/off at the specified time automatically. The timers can run themselves even when the network is unavailable. To let the devices be controlled by others, users can simply share the devices to other accounts and allow specified timers permissions. Users can even create some scenes or smart scenes to trigger ON/OFF the switch.
Specification
- Voltage Range: 90-250V AC(50/60Hz) / 5-24V DC
- Max Current: 10A/gang
- Max Power: 2200W/gang
- Wireless Frequency: WiFi 2.4GHz
- Wireless Standard: 802.11 b/g/n & 433.92MHz
- Security Mechanism: WPA-PSK/WPA2-PSK
- Enclosure Material: Fire-retardant ABS V0
- Gang: 4
- Dimension:145*90*40 (mm)
- Operating Temperature(recommended): 0ºC-40ºC(32°F-104°F)
- Operating Humidity: 5%-90%RH, Non-condensing
| Product Name | Features | Input Voltage | Max Current | Max Power | Frequency |
|---|---|---|---|---|---|
| Basicr2 | 1 channel wireless switch | 90~250VAC | 10A | 2200W | 2.4GHz |
| Basicr3 | 1 channel wireless switch, DIY mode | 90~250VAC | 10A | 2200W | 2.4GHz |
| RFR2 | 1 Channel 433 RF Wireless Switch | 90~250VAC | 10A | 2200W | 2.4Ghz, 433MHz RF |
| RFR3 | 1 Channel 433 RF Wireless Switch,DIY mode | 90~250VAC | 10A | 2200W | 2.4Ghz, 433MHz RF |
| Mini | 2-way Control, small, DIY mode | 100~240VAC | 10A | 2200W | 2.4GHz |
| Dual | Remote Control 2 Devices | 90~250VAC | 15A | 3500W | 2.4GHz |
| Powr2 | Follow Real-time Power Consumption | 100~240VAC | 15A | 3500W | 2.4GHz |
| iFan03 | Control the Ceiling Fan and Light | 100~240VAC | 2A(Fan)/3A(light) | 480/660W | 2.4GHz |
| TH16 | Work with DS18B20 or Si7021 Temperature Sensor | 90~250VAC | 15A | 3500W | 2.4GHz |
| 4CH Pro R2 | 4 Gang WiFi & RF / 3 Working Model | 90~250VAC/5~24VDC | 10A/Gang | 2200W/Gang | 2.4GHz, 433MHz RF |
| S26 | Wi-Fi Smart Plug | 90~250VAC | 10A | 2200W | 2.4GHz |
