- Open-Source Design Follows open-source licensing; source code and design files are fully accessible, allowing developers to study, modify, and perform secondary development.
- High-Performance Motor Control Equipped with FOC (Field-Oriented Control) technology, supporting open/closed-loop speed, position, and torque control for precise motion control.
- Powerful Hardware Support Powered by an ESP32 main controller with rich interfaces such as I2C, SPI, PWM, and more, enabling flexible feature expansion.
- Rich Functional Capabilities Supports self-balancing, high-speed motion, attitude stabilization, and wireless control, adaptable to various complex terrains.
- Easy to Learn and Use Comes with comprehensive example codes and video tutorials, significantly lowering the learning threshold for beginners.
Specification | Details |
Main Control Board | StackForce main control board |
Motor Driver Board | 5A dual-channel brushless motor driver (low-power) |
Motors | 2208 gimbal brushless motors |
Servo Driver Board | Multi-channel servo driver with integrated IMU |
Power supply | 12.6V lithium polymer battery |

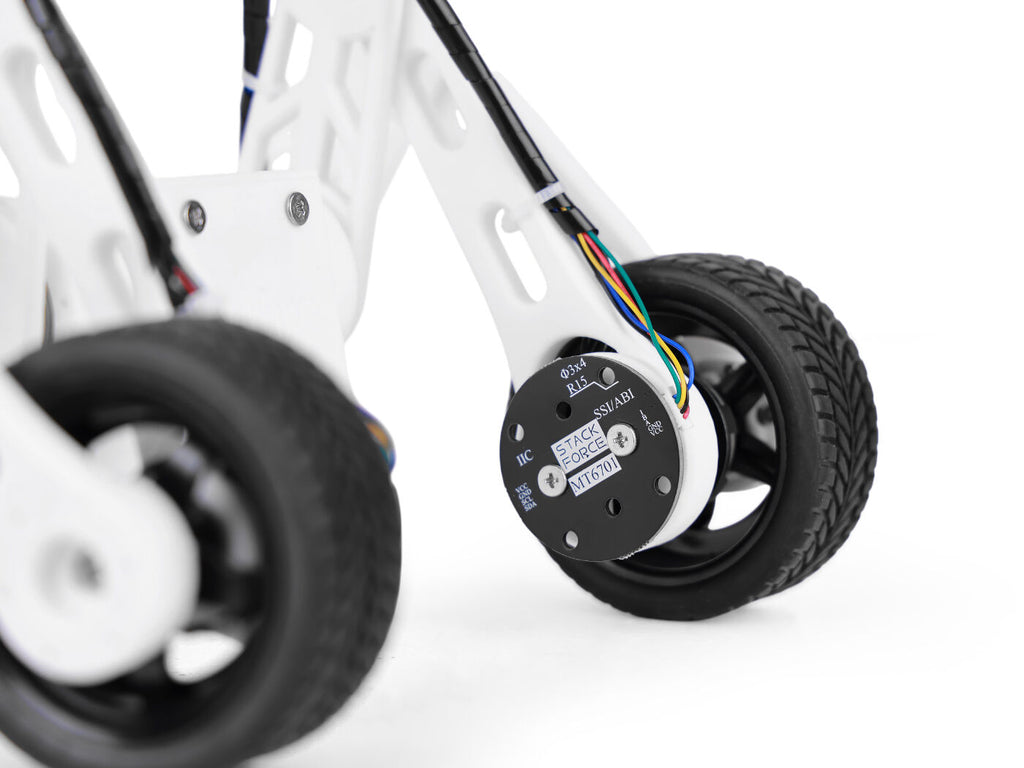

Encoder | MT6701 14-bit high-precision magnetic encoder |
Wireless Control | WiFi remote control + PS4 Bluetooth wireless controller |
Total Weight | 540 g |
Dimensions | 10.5 × 21.0 cm (L × W), Height 12.0–21.0 cm |
Item Name | Quantity | Unit | Specifications | Notes/Standards |
Electronic Components |
|
|
|
|
StackForce Main Control Board | 1 | pc | StackForce |
|
StackForce 5A Low-Power Driver Board | 1 | pc | StackForce |
|
StackForce Servo Board | 1 | pc | StackForce |
|
MT6701 Encoder | 2 | pc | StackForce |
|
2208 Gimbal Motor | 2 | pc |
|
|
DS041MG 500-2500 Servo | 4 | pc |
|
|

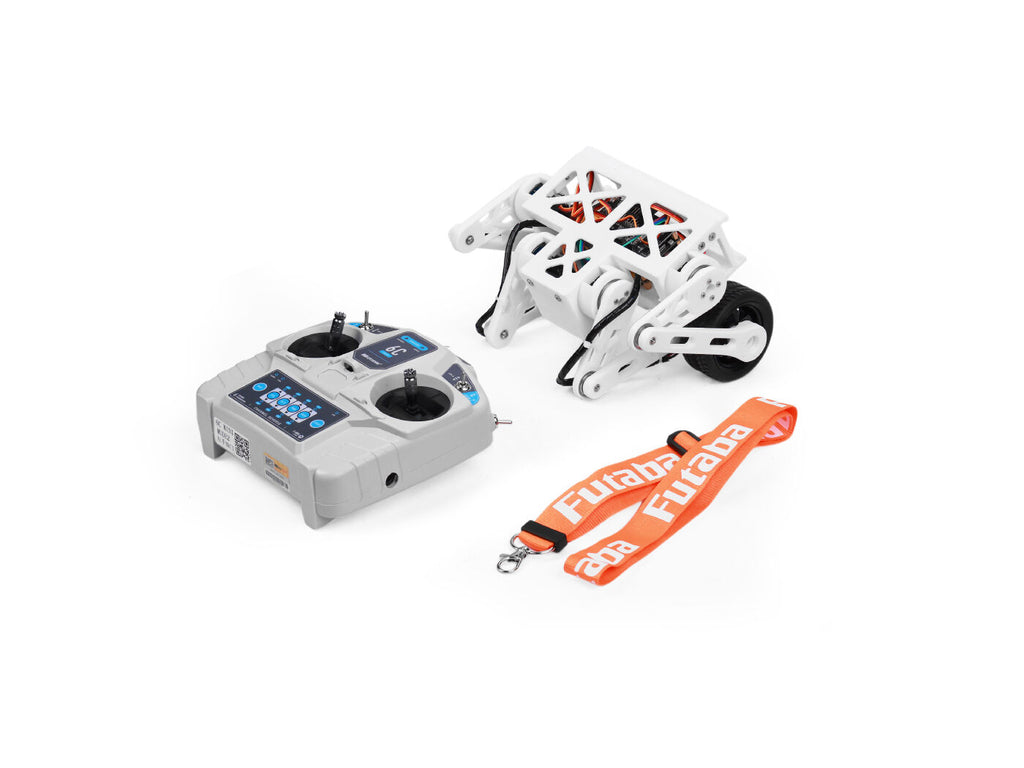

MC6C-MINI Remote Controller | 1 | pc |
|
|
MC7RBv2 Receiver | 1 | pc |
|
|
12V Li-Polymer Battery | 1 | pc | 19×34×42mm |
|
MR30-U Motor Connector | 2 | pc |
| For motor |
SH1.0-5P Encoder Cable | 2 | set |
| For encoder |
3P Dupont Wire (Female-Female) | 1 | set |
| For receiver |
Mechanical Hardware |
|
|
|
|
M3 Lock Nut | 4 | pc | M3 | GB889.1-86 |
M3 Nut | 4 | pc | M3 | DIN934 |
Nylon Standoff | 4 | pc | 5×3.2×9mm | ABS |
M3 Washer | 4 | pc | M3 | 304 Stainless |
Radial Magnet | 2 | pc | 6×2.5mm |
|
Round Head Screw M2×4 | 24 | pc | M2×4 | GB/T845 |
Round Head Screw M2×10 | 12 | pc | M2×10 | GB/T845 |
Round Head Screw M3×6 | 4 | pc | M3×6 | GB/T845 |
Round Head Screw M3×8 | 4 | pc | M3×8 | GB/T845 |
Round Head Screw M3×16 | 4 | pc | M3×16 | GB/T845 |
Round Head Screw M4×18 | 2 | pc | M4×18 | GB/T845 |
M2×6 Self-tapping Screw | 16 | pc | M2×6 | GB/T845 |
Flat Head Screw M2×6 | 46 | pc | M2×6 | 304 Stainless |
Flat Head Screw M3×6 | 16 | pc | M3×6 | 304 Stainless |
M3×7+4 Copper Standoff | 4 | pc | M3×7+4 | Copper/GB |
6704ZZ Bearing | 4 | pc | Ø27×Ø20×4mm |
|
6701ZZ Bearing | 6 | pc | Ø18×Ø12×4mm |
|
Structural Components |
|
|
|
|
3D Printed Parts | 29 | pc |
|
|
1:10 Wear-Resistant 6030-6085 Tires | 2 | pc |
|
|
| HSCODE | 9023009000 |
| USHSCODE | 9023000000 |
| UPC | |
| EUHSCODE | 9023001000 |
| COO | CHINA |
