The ToF Laser Ranging Sensor uses dToF (Direct Time of Flight) technology to measure distance by emitting 940nm laser pulses and calculating the time-of-flight of reflected signals. It offers a range of up to 7.8 meters with ±4cm accuracy, a 50Hz refresh rate, and resistance to ambient light interference up to 100,000 lux. With an ultra-compact design (19×12×10.3mm, 1g weight) and support for UART, I2C, and I/O interfaces, it is ideal for robot and drone obstacle avoidance and navigation.
Ultra-Lightweight & Miniaturized Design
Weighing 1g with dimensions of 19×12×10.3mm, the sensor is one of the smallest and lightest dToF solutions on the market. Its 19mm³ footprint allows direct integration into micro-drones, wearable devices, or robotic joints without compromising payload capacity or mobility. The design eliminates traditional bulky optics, enabling deployment in space-critical applications like micro-drone obstacle avoidance or smartwatch gesture control.

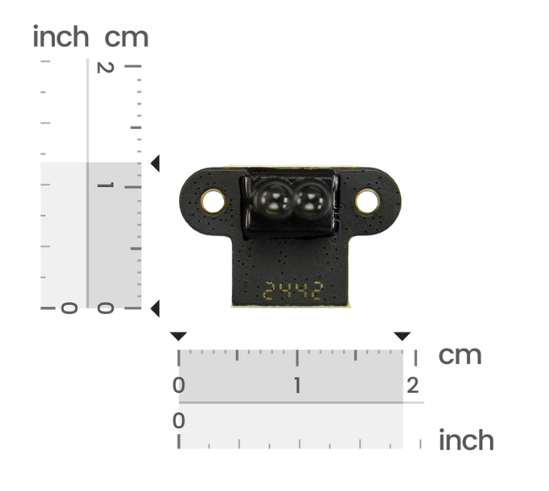

Figure: Weight and size of the ToF Laser Ranging Sensor
High-Speed Dynamic Ranging
With a 50Hz refresh rate, the sensor delivers real-time distance updates, critical for applications requiring rapid response, such as drone obstacle avoidance or industrial conveyor belt monitoring. The narrow 2-3° field of view minimizes interference from ambient light and background noise, ensuring stable performance in both indoor and outdoor settings.
Robust Anti-Interference Capability
The sensor operates reliably under 100,000 lux ambient light (equivalent to direct sunlight), making it suitable for outdoor traffic monitoring or construction sites. Advanced algorithms filter out environmental noise, enabling consistent accuracy in dynamic scenarios like vehicle speed detection or material level measurement.
Applications:
Figure: Applications of the ToF Laser Ranging Sensor
Specification:
Documents:

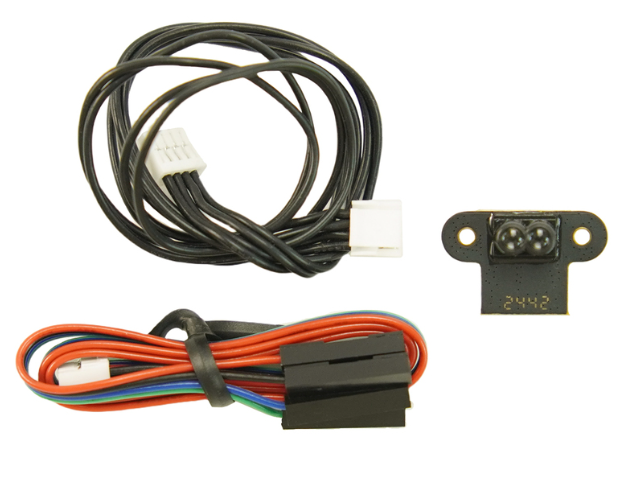

Product Includes:
