Note: The Wio Tracker L1 Series is available in four versions—choose the one that best fits your needs.
- Pre-flashed with Meshtastic firmware
Ready to use out of the box with pre-installed Meshtastic firmware for seamless setup.
- Triple Power Supply Options
Supports Type-C fast charging, solar input, and Li-ion battery power for flexible deployment in various environments—ideal for outdoor and mobile applications.
- Flexible Display Support
Optional 1.3-inch OLED and 2.13-inch E-Ink screens, offering versatile display options for different power consumption and visual feedback needs.
- High Expandability
Fully compatible with the Grove ecosystem, and includes PTH headers and an SWD debugging interface for custom hardware expansion and advanced development.
Processor | Nordic nRF52840ARM® Cortex®-M4 with FPU runs up to 64 MHz |
On-chip Memory | 1 MB flash and 256 kB RAM |
Wireless | LoRa: Based on Wio-SX1262, supports 862-930MHz |
Bluetooth 5.0 | |
GPS | L76K(GPS,BeiDou,GLONASS,QZSS) |

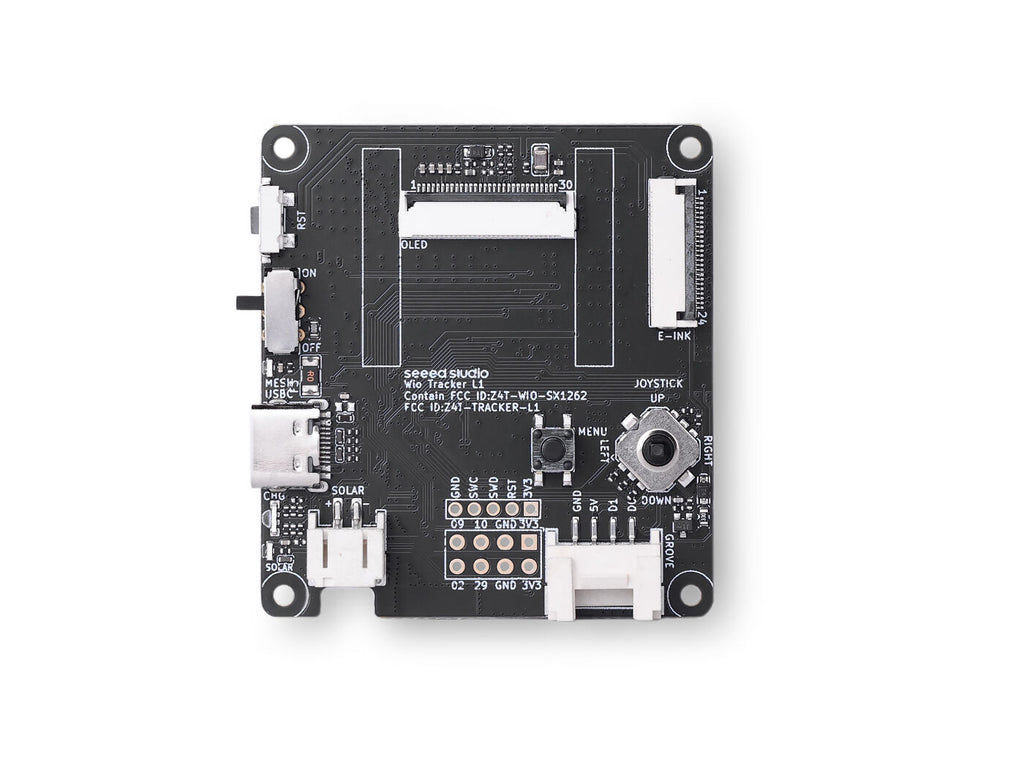

Interface | Screen interfaces: ● 1.3 inch OLED *1 ● 2.13 inch E-ink *1 |
Grove *1: UART/IIC/GPIO | |
Plated Through Hole（PTH）: UART/IIC/GPIO/Analog | |
Soldering pads reserved for SWD | |
Power | Type-C: 5v---1A |
Solar energy interface: 5v---1A | |
Battery interface: 3.7v---1A | |
Certification | FCC, CE, RoHS |
- Diagram

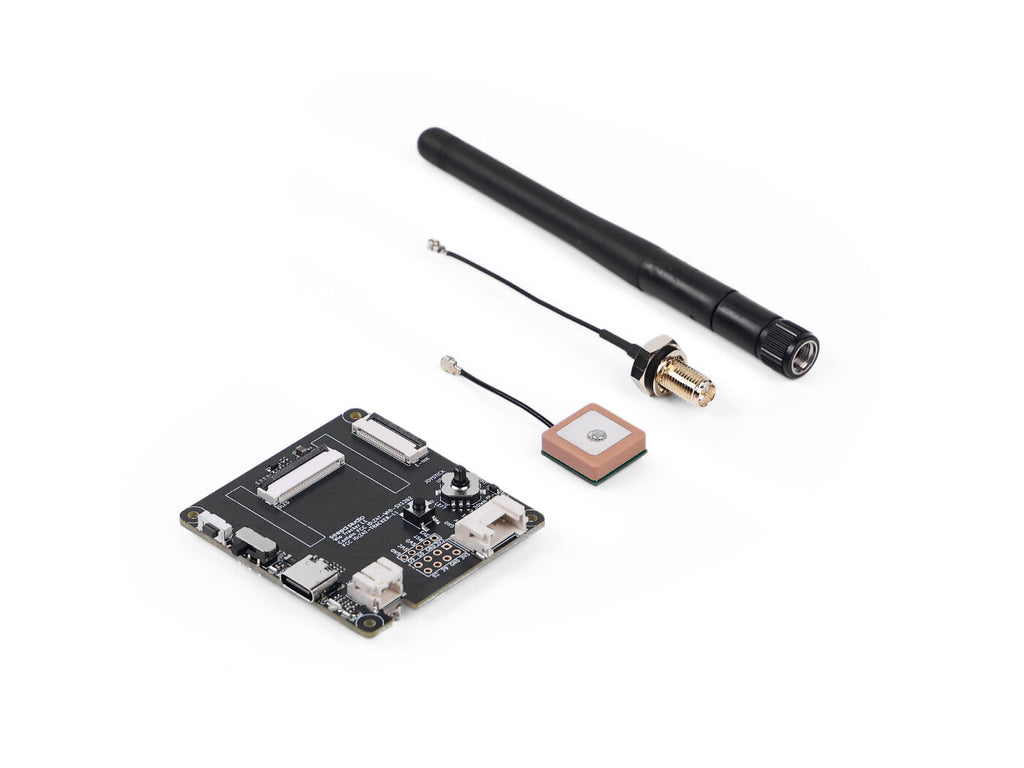

Wio Tracker L1 Board | x1 |
LoRa Antenna | x1 |
GPS Antenna | x1 |
60mm RF Cable(RP-SMA Female to IPEX) | x1 |
| HSCODE | 8526919090 |
| USHSCODE | 8526910040 |
| UPC | |
| EUHSCODE | 8517180000 |
| COO | CHINA |
