MeshCore is a multi platform system for enabling secure text based communications utilising LoRa radio hardware. It can be used for Off-Grid Communication, Emergency Response & Disaster Recovery, Outdoor Activities, Tactical Security including law enforcement, private security and also IoT sensor networks.
Wio Tracker L1 Pro for Meshcore comes with pre-flashed Meshcore Bluetooth Companion firmware. If you want to buy L1 Pro with pre-flashed Meshtastic firmware, please click here to buy.

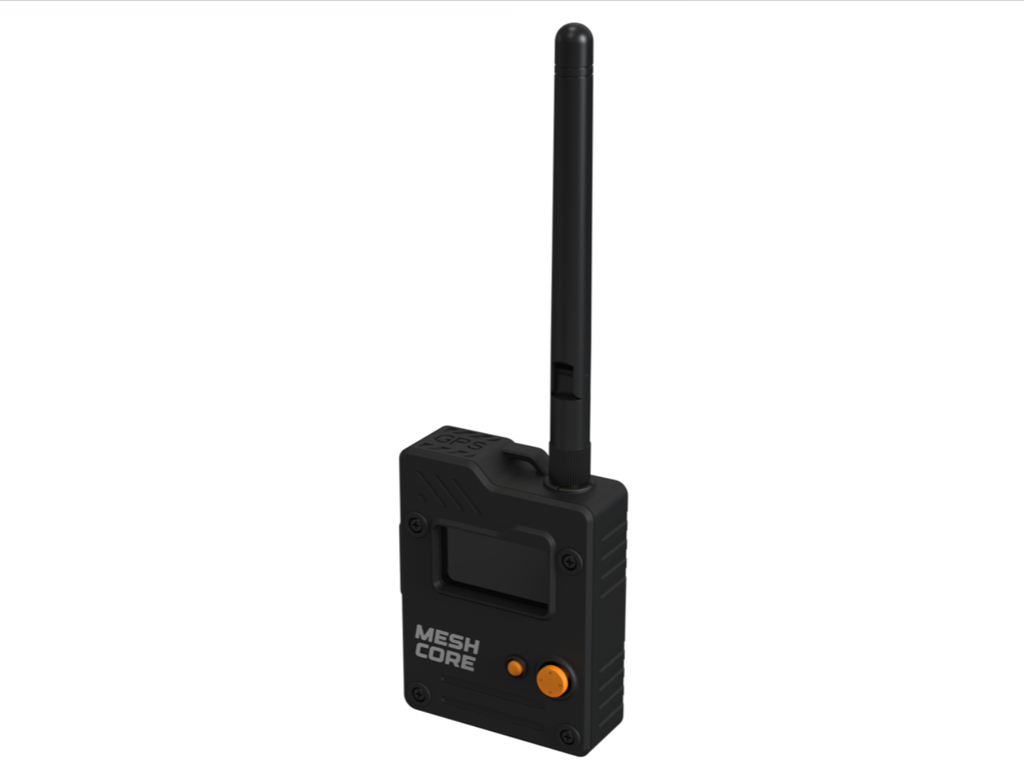

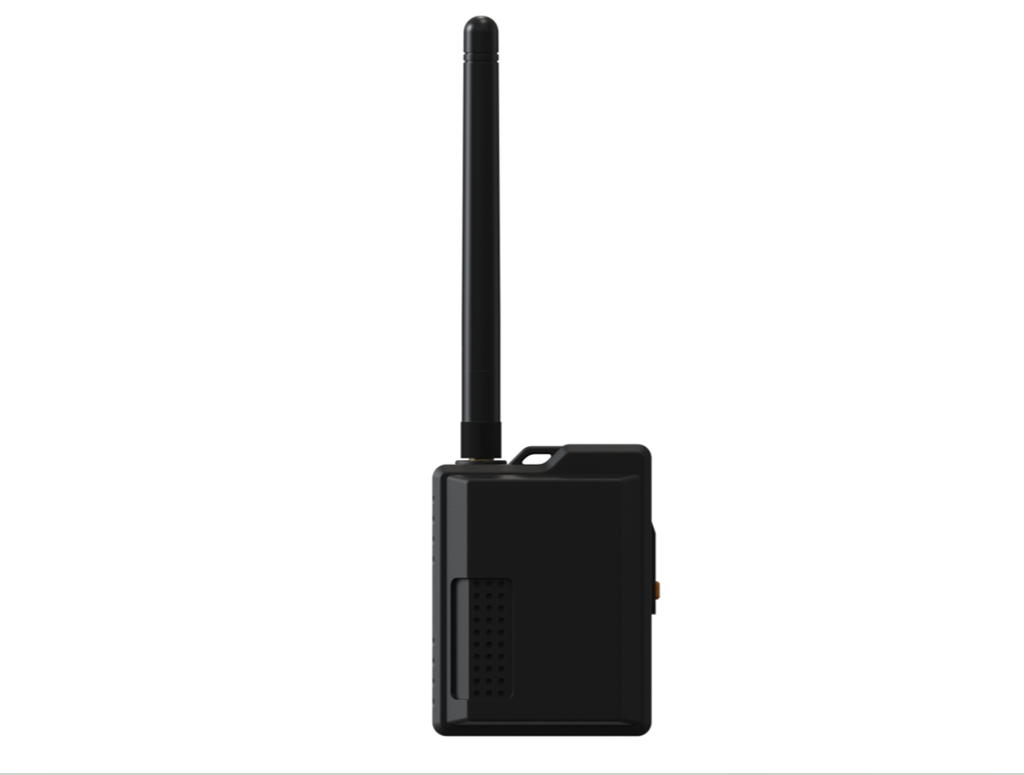

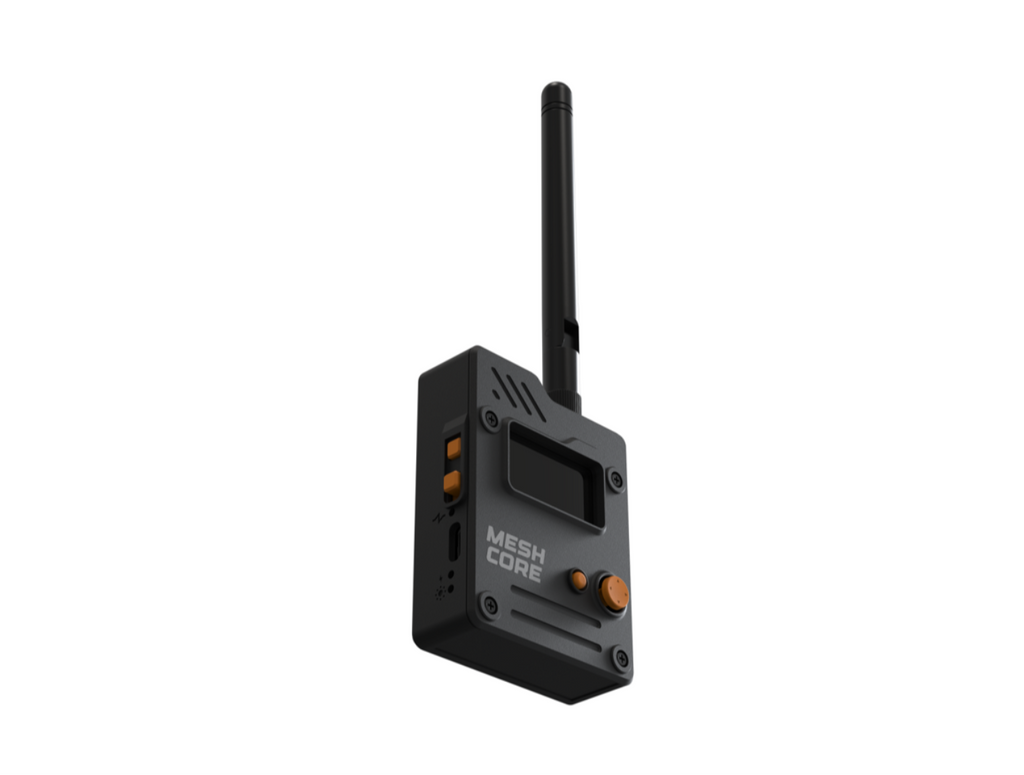

- Ready-to-Use 3D-Printed Enclosure
The L1 Pro comes with a rugged, lightweight 3D-printed enclosure designed for immediate use—no additional assembly needed. Whether handheld or clipped onto gear, it’s built for adventure in any environment.
- Pre-flashed with Meshcore firmware
Ready to use out of the box with pre-installed Meshcore Bluetooth Companion firmware for seamless setup.
- Triple Power Supply Options
Equipped with a built-in 2000 mAh battery, Type-C fast charging, and solar input support, enabling flexible deployment in diverse environments—perfect for outdoor and mobile use.
Processor | Nordic nRF52840ARM® Cortex®-M4 with FPU runs up to 64 MHz |
On-chip Memory | 1 MB flash and 256 kB RAM |
Wireless | LoRa: Based on Wio-SX1262 Wireless Module, supports 862-930MHz |
Bluetooth 5.0 | |
GPS | L76K(GPS,BeiDou,GLONASS,QZSS) |
OLED Display | Size: 1.3 inch |
Resolution: 128*64 pixels | |
Active Area(mm): L34.5*W23.0*H1.47 | |
Power | Type-C: 5v---1A |
Solar energy interface(2.0mm 2p):5V---1A | |
Baterry interface(1.0mm 2p JST): 3.7v---1A | |
Certification | FCC, CE, RoHS，EUDOC,TELEC,UKDOC |
Wio Tracker Ll Pro 3D-Shell Reference Document
Seeed Wio Tracker L1 Power Consumption Test and Battery Life Calculation
Wio Tracker L1 Board with 1.3 inch OLED Display, 3D-Printed Enclosure and battery | x1 |
LoRa Antenna | x1 |
| HSCODE | 8526919090 |
| USHSCODE | 8526910040 |
| UPC | |
| EUHSCODE | 8517180000 |
| COO | CHINA |
