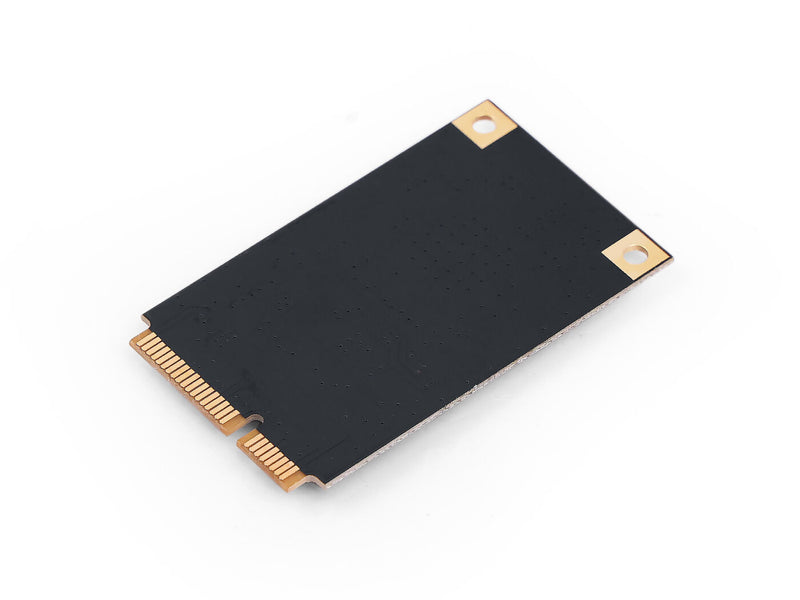

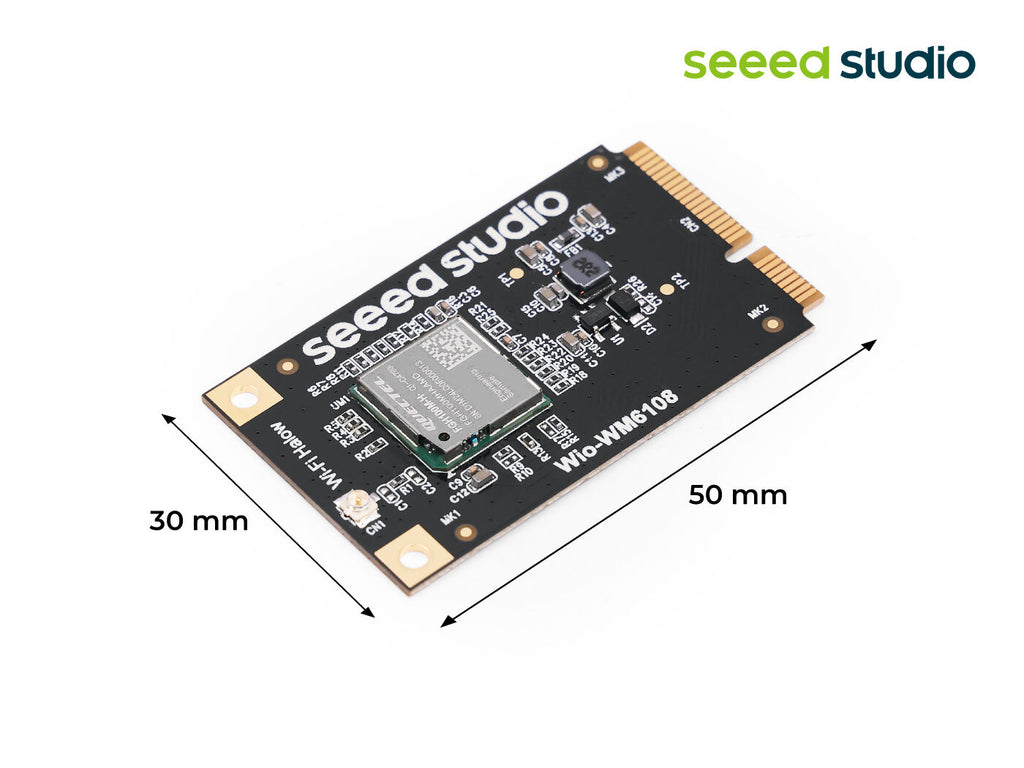

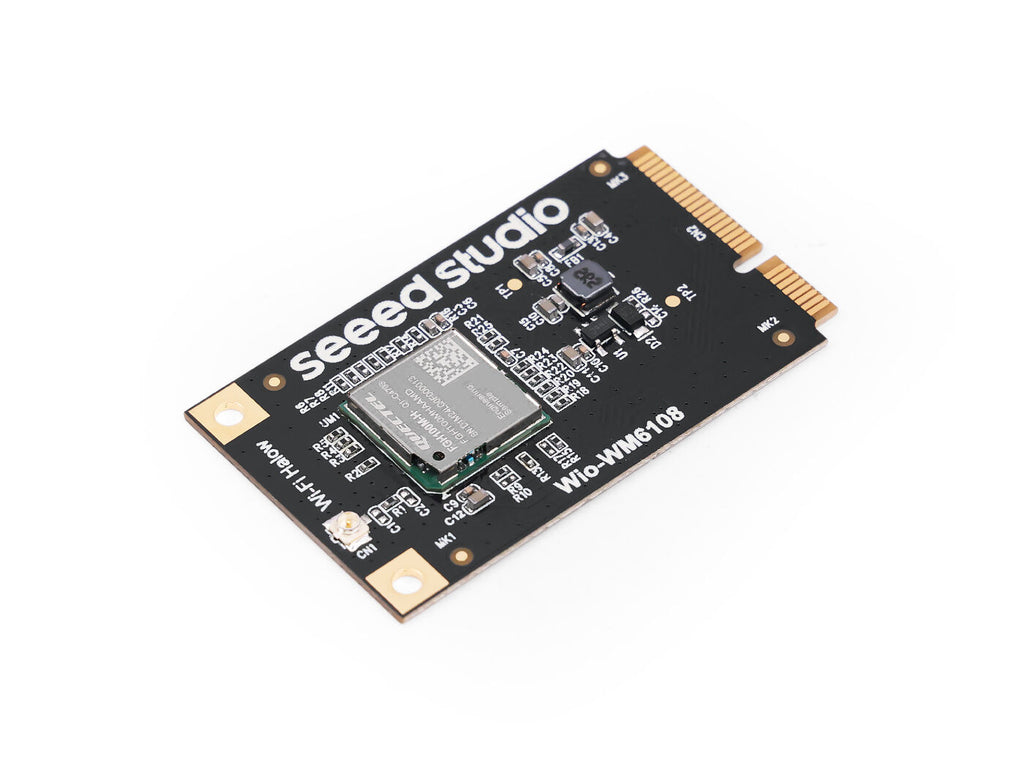

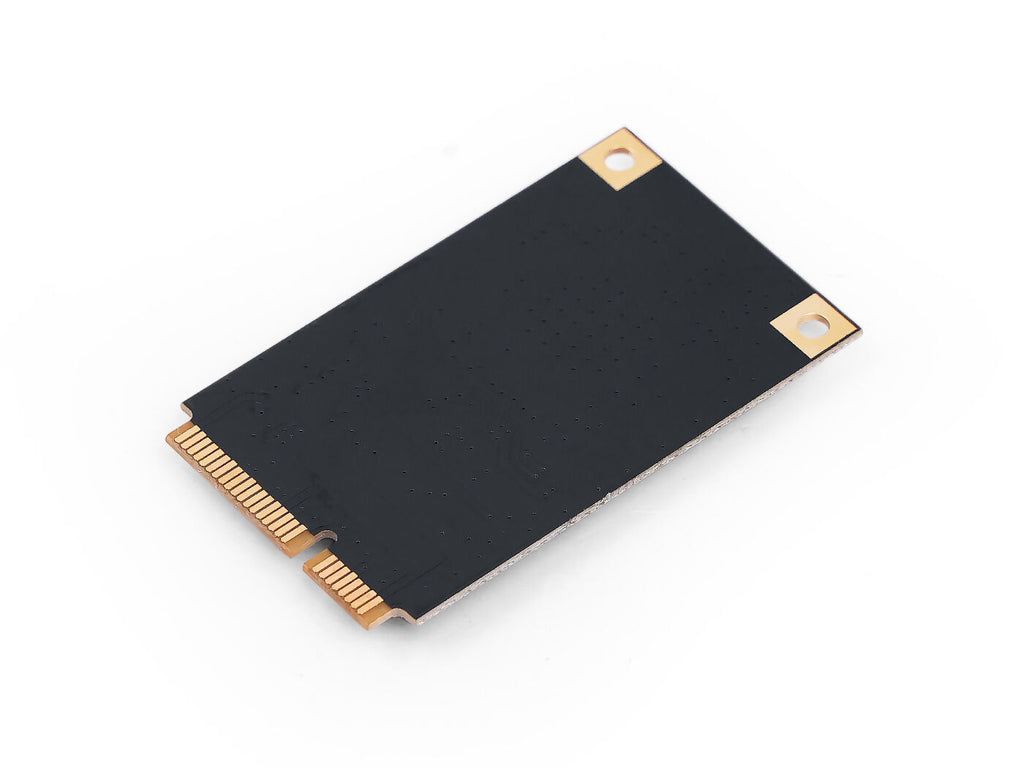

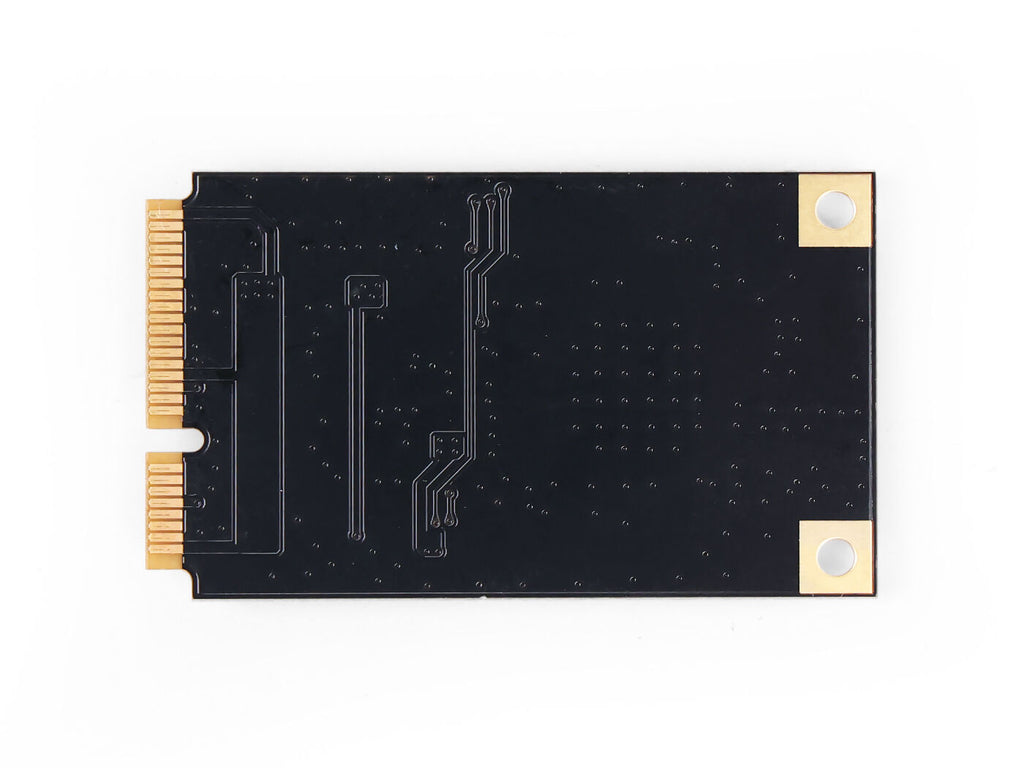

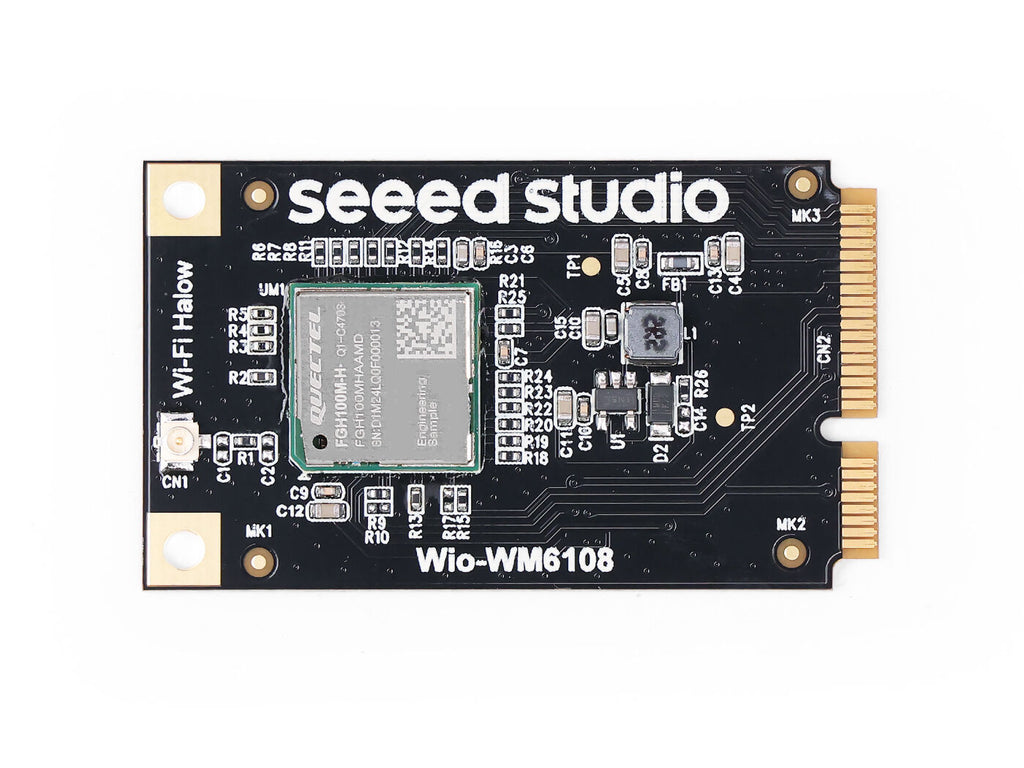

The Wio-WM6108 Wi-Fi HaLow Mini-PCIe Module, powered by Quectel FGH100M-H, delivers long-range, low-power connectivity for IoT and smart home applications. Operating on the 902-928 MHz frequency band, this IEEE 802.11ah compliant module provides superior wall penetration and coverage extending up to 1 km. Its compact Mini-PCIe form factor integrates seamlessly into industrial and embedded systems, supporting hundreds of simultaneous device connections with WPA3 security encryption. Optimized for power-sensitive deployments, the Wio-WM6108 is engineered for smart cities, agricultural monitoring, industrial automation, and environmental sensing where reliable, efficient wireless connectivity is critical.
Note:
- To ensure full functionality, the Wio-WM6108 Wi-Fi HaLow mini-PCIe Module requires the WM1302 Raspberry Pi Hat for proper integration. We recommend purchasing both together to guarantee seamless setup and optimal performance.
- Wi-Fi HaLow is an open, standard Wi-Fi technology operating in the license-exempt Sub-1 GHz range.
- You may need to prepare additional antennas suitable for WiFi-HaLow use. Here are the verified, recommended antenna models 2.6dBi Long Range Antenna and SMA to I-PEX Antenna Cable.
The Wio-WM6108 Wi-Fi HaLow Mini-PCIe Module,powered by the Quectel FGH100M-H, is a long-range, low-power Wi-Fi HaLow module. Operating in the 902-928 MHz frequency band, it offers excellent penetration and coverage, making it ideal for smart home and IoT applications. Featuring the industry-standard Mini-PCIe form factor, it's ideal for industrial and embedded applications where reliable connectivity and space efficiency are essential.
- Long-Range Connectivity: Complies with IEEE 802.11ah standard, operating in 902-928 MHz frequency band, providing coverage up to 1 km with superior penetration performance.
- Low Power Consumption: Optimized power efficiency design, making it ideal for power-sensitive IoT applications.
- Large-Capacity Access: Supports up to hundreds of simultaneous device connections to the same Wi-Fi access point - ideal for large-scale IoT deployments.
- Robust Security: Implements comprehensive security features including AES, SHA-256, SHA-384, SHA-512, and WPA3 encryption.
- Mini-PCle Form Factor: Utilizing the industry-standard Mini-PCIe interface, this module enables straightforward integration into existing systems. The standardized form factor makes it an ideal choice for industrial and embedded applications, offering both reliable performance and installation convenience.
Parameters | Details |
WLAN Protocol | IEEE 802.11ah |
Wi-Fi Frequency Band | 902–928 MHz |
Wi-Fi Antenna | 1 x 1 |
Wi-Fi Modulation Mode | OFDM,BPSK, QPSK, 16QAM, 64QAM |
Encryption Mode | AES, SHA-256, SHA-384, SHA-512, WPA3 |
Wi-Fi Operating Mode | AP/ STA |
Operating Temperature Range | -30 °C to +85 °C |
Extended Temperature Range | -40 °C to +85 °C |
Physical Rate (Max.) | 802.11ah: 32.5 Mbps |
Power Supply Voltage | VBAT: 3.0–3.6 V, typ. 3.3 V |
I/O Power Supply Voltage | VDD_IO: 1.62–3.6 V, typ. 1.8/3.3 V |
FEM Power Supply Voltage | VDD_FEM: 3.0–5.25 V, typ. 5 V |
- Smart Home Devices
- Industrial Automation Control
- Smart City Infrastructure
- Agricultural IoT Monitoring
- Environmental Monitoring Systems
| HSCODE | 8517799000 |
| USHSCODE | 8517620090 |
| UPC | |
| EUHSCODE | 8517180000 |
| COO | CHINA |
Wio-WM6108 Wi-Fi HaLow Mini-PCIe Module | ×1 |
