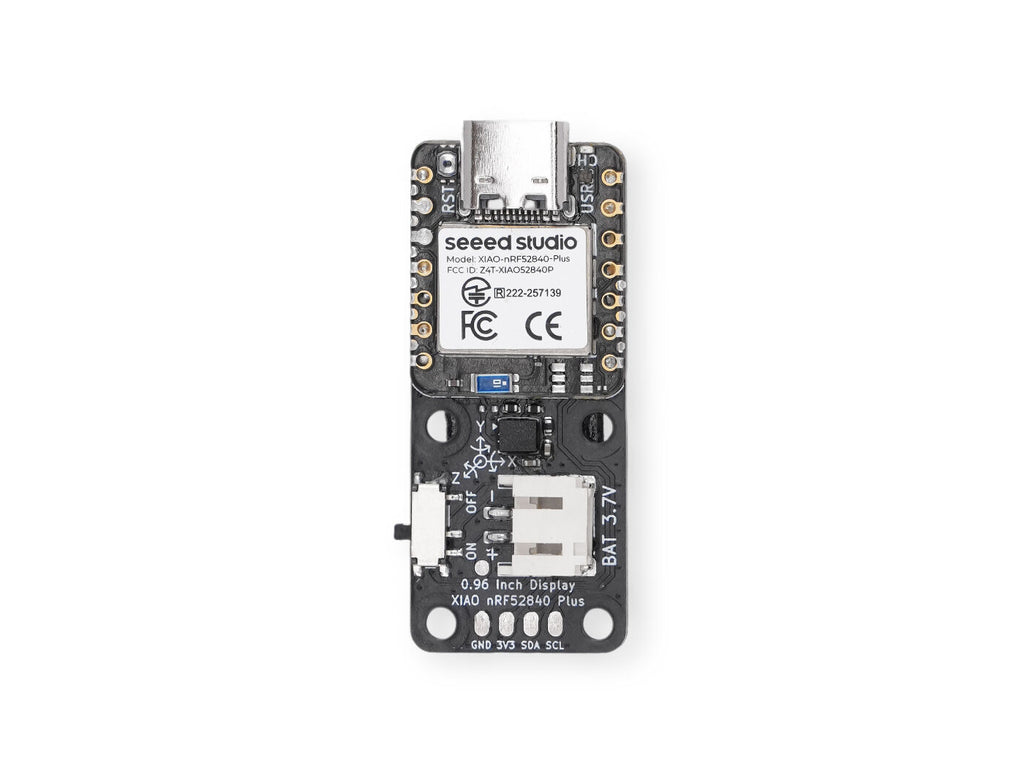

- An Ultra-Compact Smart Device Board
- With a board width of only 18.8 mm, this is the smallest model in the XIAO IPS Display series. It brings display, motion sensing, audio input, physical buttons, battery support, and Bluetooth connectivity into a form factor that remains close to the width of a XIAO board, making it easier to build compact enclosures, badges, pendants, and wearable devices.

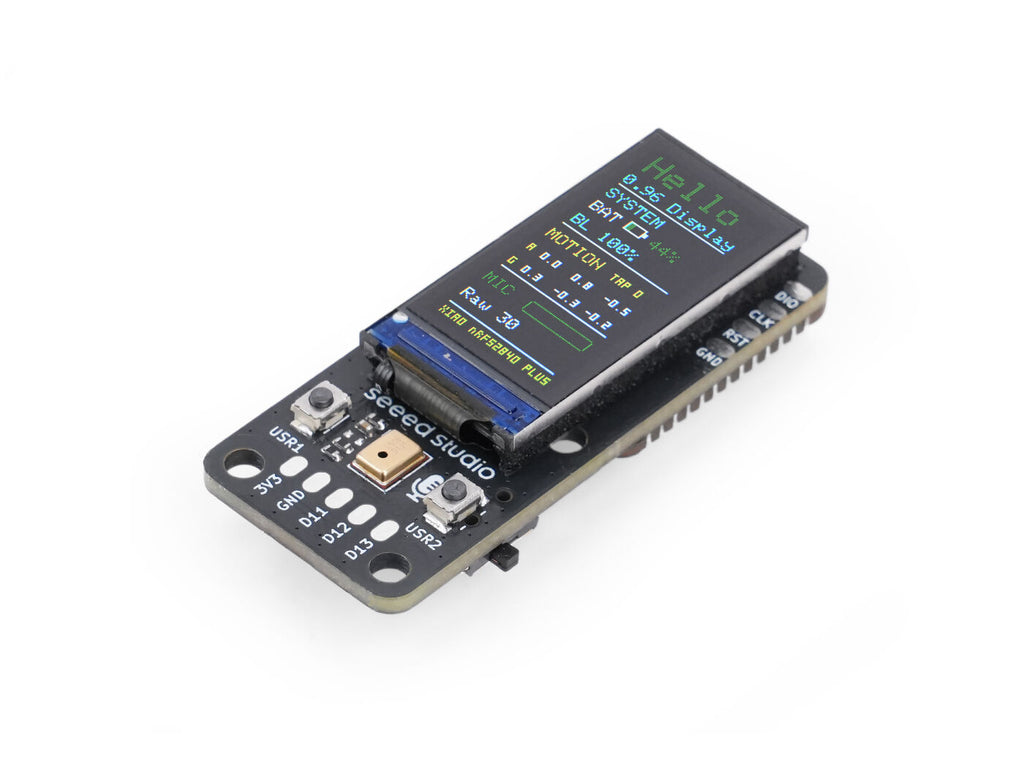

- Essential Information on a Tiny IPS Display

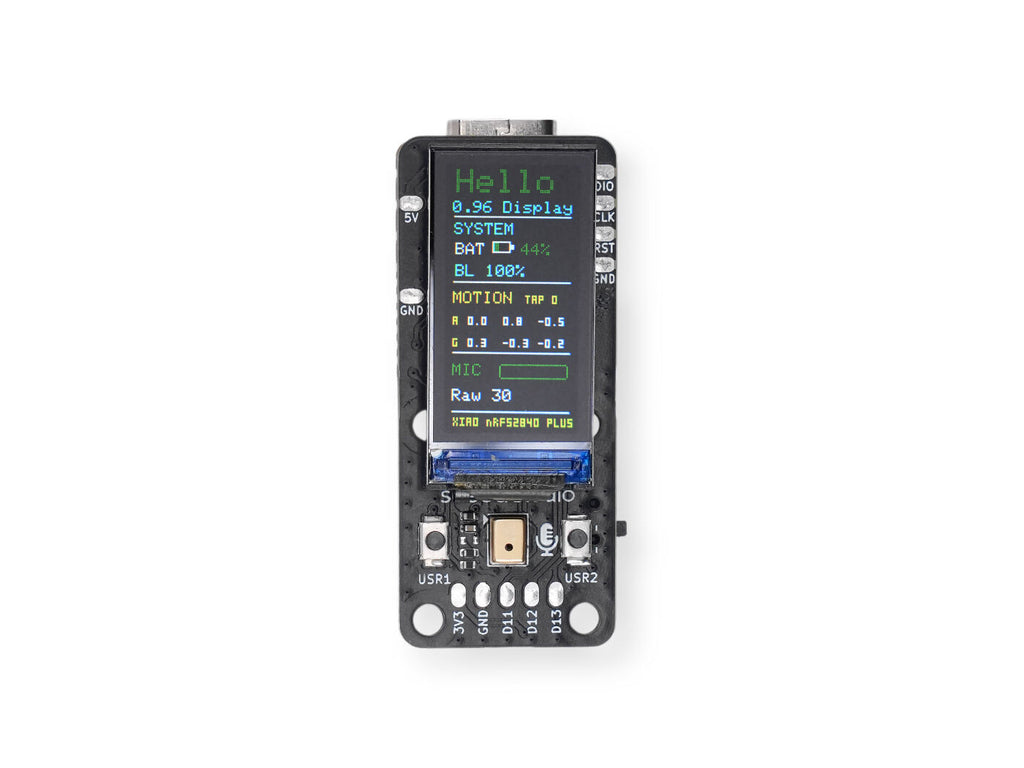

- The 0.96-inch 80 × 160 IPS display is designed for essential information such as battery status, Bluetooth connection, sensor readings, icons, counters, and simple menus. It gives compact projects a clear visual interface while keeping the overall device small.
- Sound, Motion, and Physical Controls
- The onboard PDM microphone can capture sound levels and audio data, while the 6-axis IMU detects orientation, shaking, flipping, and motion. Two physical buttons provide simple and reliable user control, allowing the board to work as more than a passive display.

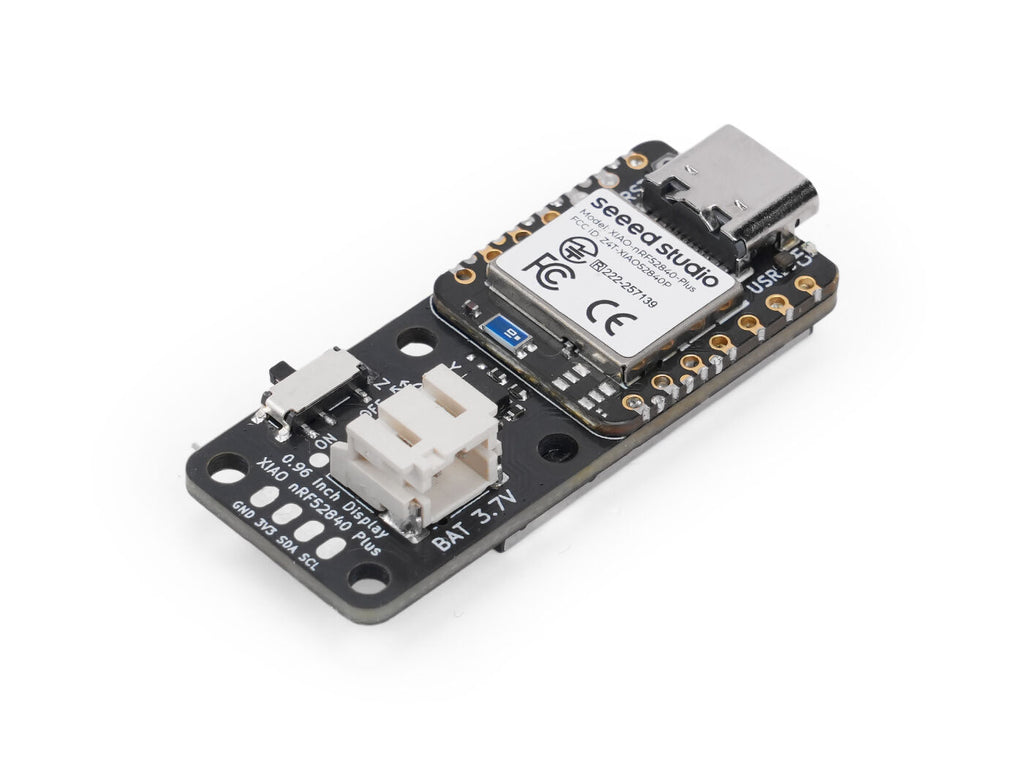

- Built for Compact BLE Wearables and Battery-Powered Ideas
- Powered by XIAO nRF52840 Plus, this version is well suited to Bluetooth Low Energy projects that need to remain compact and portable. Use it to build a smart badge, wearable notifier, compact BLE terminal, motion controller, digital pet, or miniature status display that connects to a phone, computer, or gateway.
| Specification | XIAO 1.47'' IPS Display(nRF52840) | XIAO 1.14'' IPS Display(nRF52840) | XIAO 0.96'' IPS Display(nRF52840) |
| Product Positioning | Touch & Full Interaction | Sensing & Expansion | Ultra-Compact |
| Core Controller | Seeed Studio XIAO nRF52840 Plus | ||
| Processor | Nordic nRF52840, ARM® Cortex®-M4 32-bit processor with FPU, 64 MHz | ||
| Memory | 256 KB RAM + 1 MB internal Flash + 2 MB onboard Flash | ||
| Wireless Connectivity | BLE 5.4 | ||
| Display Type | 1.47" IPS TFT LCD | 1.14" IPS TFT LCD | 0.96" IPS TFT LCD |
| Resolution | 172 × 320 | 135 × 240 | 80 × 160 |
| Display Driver | JD9853A | ST7789 | ST7789 |
| Display Interface | SPI | ||
| Touch Input | Capacitive Touch | No | No |
| 6-Axis IMU | Yes | ||
| PDM Digital Microphone | Yes | ||
| MicroSD Card Slot | Yes | No | No |
| Grove I2C Connector | No | Yes | No |
| User Buttons | 2 | 3 | 2 |
| Battery Connector | 2-pin JST 2.0 Connector for 3.7 V LiPo | ||
| Battery Monitoring | Battery status detection supported; battery voltage can also be monitored for battery-level estimation. | ||
| Expansion Interfaces | 1x I2C pads 1x I2S pads 1x SWD pads 2x user-button pads | 1x Grove I2C Connector 1x I2C pads 1x I2S pads 1x SWD pads 3x user-button pads | 1x I2C pads 1x I2S pads |

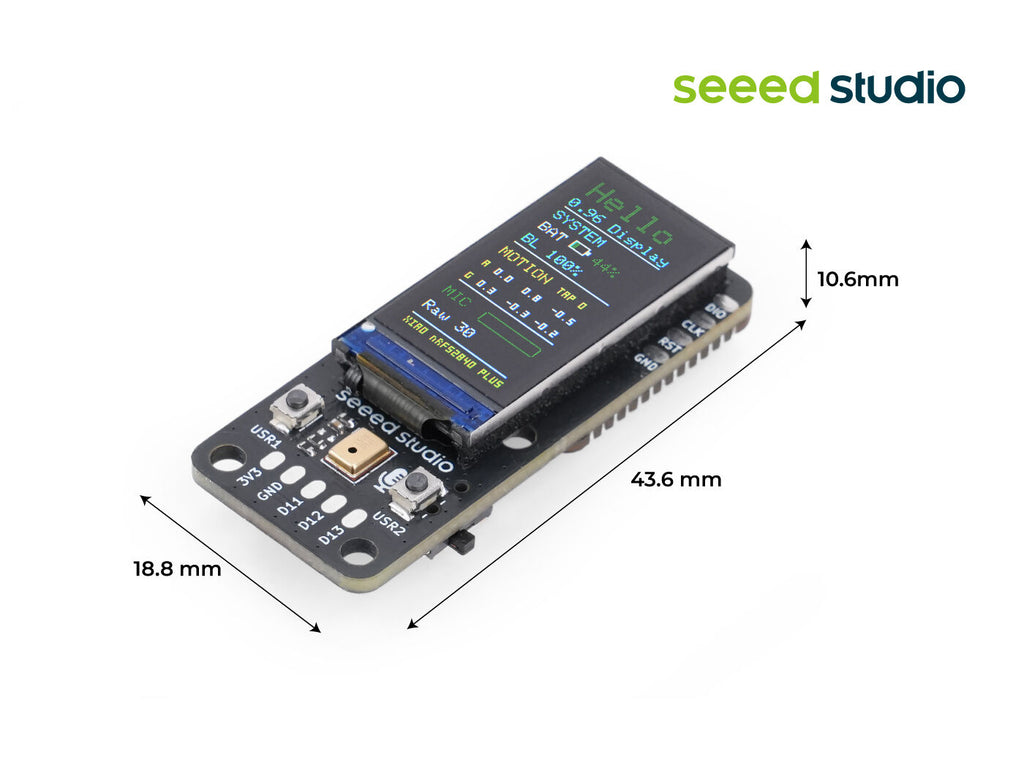

| Board Size | 26.4 × 51.4 × 12.6 mm | 26 × 48 × 10.6 mm | 18.8 × 43.6 × 10.6 mm |
| Best For | Touch UI, portable HMI, local media and data logging | Portable sensor displays, Grove devices, physical controllers | Smart badges, tiny wearables, BLE status displays |
- Onboard
- Smart Badge
- Wearable Notifier
- Compact BLE Status Display
- Motion-Based Controller
- Digital Pet and Interactive Toy
- Miniature Sensor Display
| XIAO 0.96' IPS Display (nRF52840) | ×1 |
| HSCODE | 8517629990 |
| USHSCODE | 8517620010 |
| UPC | |
| EUHSCODE | 8517180000 |
| COO | CHINA |
