- A Mini Smart Device Board for Connected Projects
If you want to build a compact connected device, you usually need a display, buttons, sensors, audio input, battery support, and wireless connectivity. This board brings these key parts together with XIAO ESP32-S3 Plus, so you can focus on the interface, sensor data, interaction, and connectivity instead of starting with multiple modules and wires.

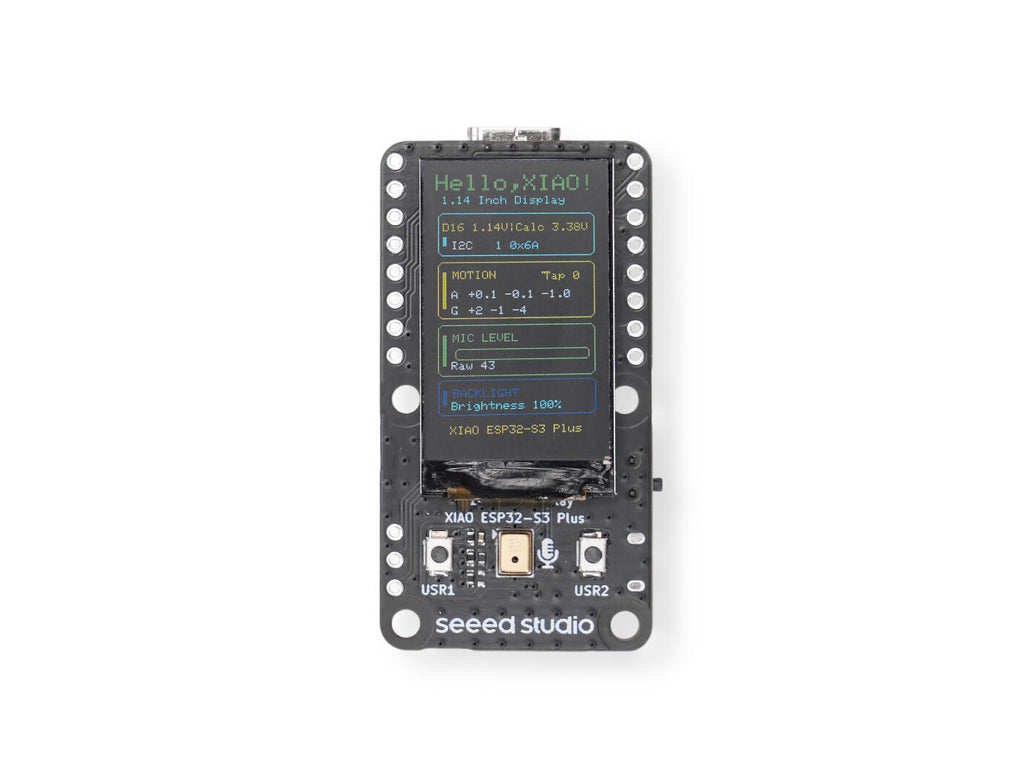

- Clear 1.14-Inch Display with Physical Controls

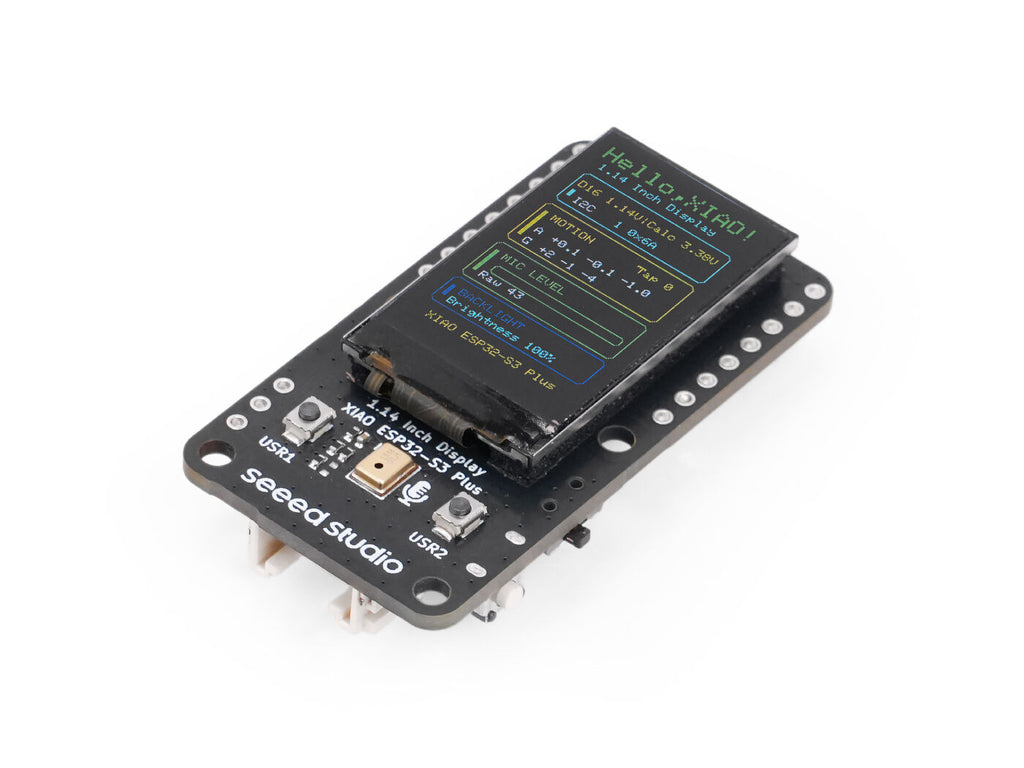

The 1.14-inch 135 × 240 IPS display gives you enough space for sensor readings, status pages, icons, menus, dashboards, and lightweight animations. Three physical user buttons provide simple and reliable control without requiring a touch screen, making it a good fit for handheld devices, controllers, and compact interfaces.
- Voice, Motion, and Grove Expansion in One Small Board

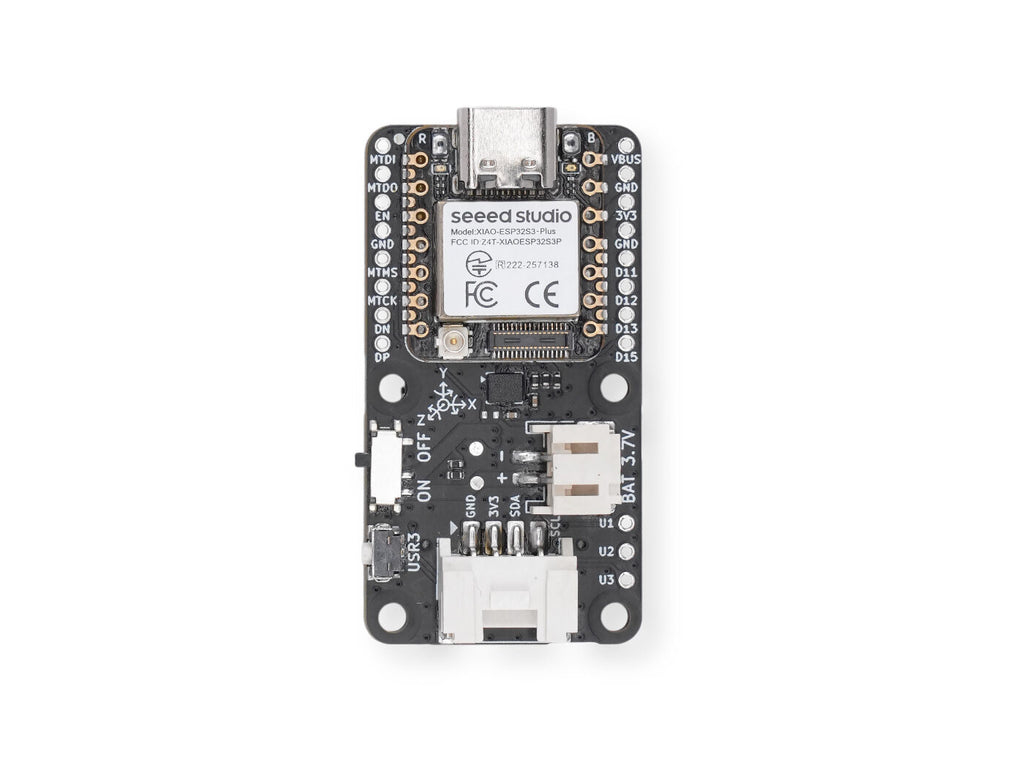

This board does more than show information. The PDM microphone can be used for sound detection, audio capture, and voice-related interaction, while the 6-axis IMU detects orientation, shaking, flipping, and motion. The onboard Grove I2C interface also makes it easy to add environmental, distance, light, and other compatible sensors without complex wiring.
- Built for Wi-Fi, Bluetooth, and Richer Connected Interfaces
Powered by XIAO ESP32-S3 Plus, this version combines a dual-core processor running at up to 240 MHz with Wi-Fi, Bluetooth Low Energy, 8 MB PSRAM, and 16 MB Flash. It is a good fit for connected dashboards, smart home controls, wireless sensor terminals, desktop gadgets, and other projects that need more processing and memory headroom for graphics and connectivity.
| Specification | XIAO 1.47'' IPS Touch Display(ESP32-S3) | XIAO 1.14'' IPS Display(ESP32-S3) | XIAO 0.96'' IPS Display(ESP32-S3) |
| Positioning | Touch & Full Interaction | Sensing & Expansion | Ultra-Compact |
| Core Controller | Seeed Studio XIAO ESP32-S3 Plus | ||
| Processor | ESP32-S3R8, Dual-Core, up to 240 MHz | ||
| Memory | 8 MB PSRAM + 16 MB Flash | ||
| Wireless | 2.4 GHz Wi-Fi + BLE 5.0 | ||
| Display | 1.47" IPS TFT | 1.14" IPS TFT | 0.96" IPS TFT |
| Resolution | 172 × 320 | 135 × 240 | 80 × 160 |
| Display Driver | JD9853A | ST7789 | ST7789 |
| Touch | Capacitive Touch | No | No |
| 6-Axis IMU | Yes | ||
| PDM Digital Microphone | Yes | ||
| MicroSD Card Slot | Yes | No | No |
| Grove I2C Connector | No | Yes | No |
| User Buttons | 2 | 3 | 2 |

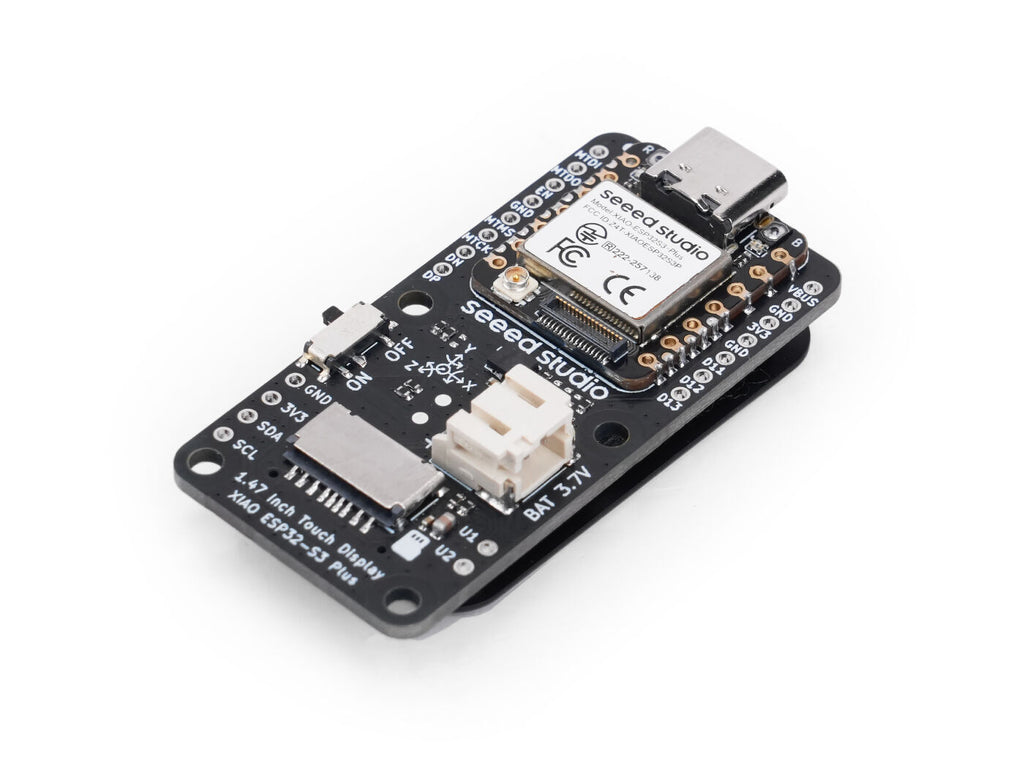

| Battery Connector | 2-pin JST, 3.7 V LiPo | ||
| Battery Monitoring | Battery voltage monitoring via D16 ADC; battery level can be estimated from the measured voltage. Battery status detection is not supported. | ||
| Expansion | 1x I2C Interface 1x I2S Interface 1x JTAG Interface 2x User Button Interface | 1x I2S Interface 1x JTAG Interface 3x User Button Interface | 1x I2C Interface 1x I2S Interface 1x JTAG Interface 2x User Button Interface |

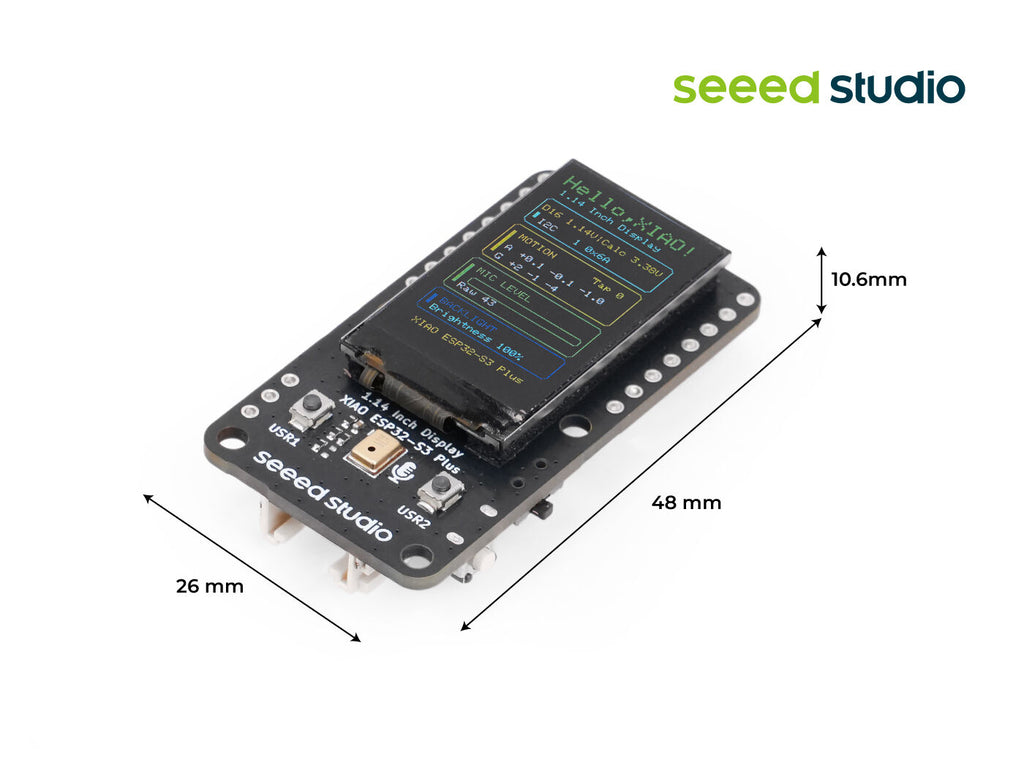

| Board Size | 26.4 × 51.4 × 12.6 mm | 26 × 48 × 10.6 mm | 18.8 × 43.6 × 10.6 mm |
| Best For | Touch UI, portable HMI, local media & data logging | Sensor dashboards, Grove projects, physical controllers | Tiny IoT devices, wearables, status displays |
- Onboard
- Connected Sensor Dashboard
- Grove Sensor Terminal
- Smart Home Controller
- Motion-Based Interaction Device
- Desktop Gadget and Digital Pet
- Portable HMI
| XIAO 1.14'' IPS Display(ESP32-S3) | ×1 |

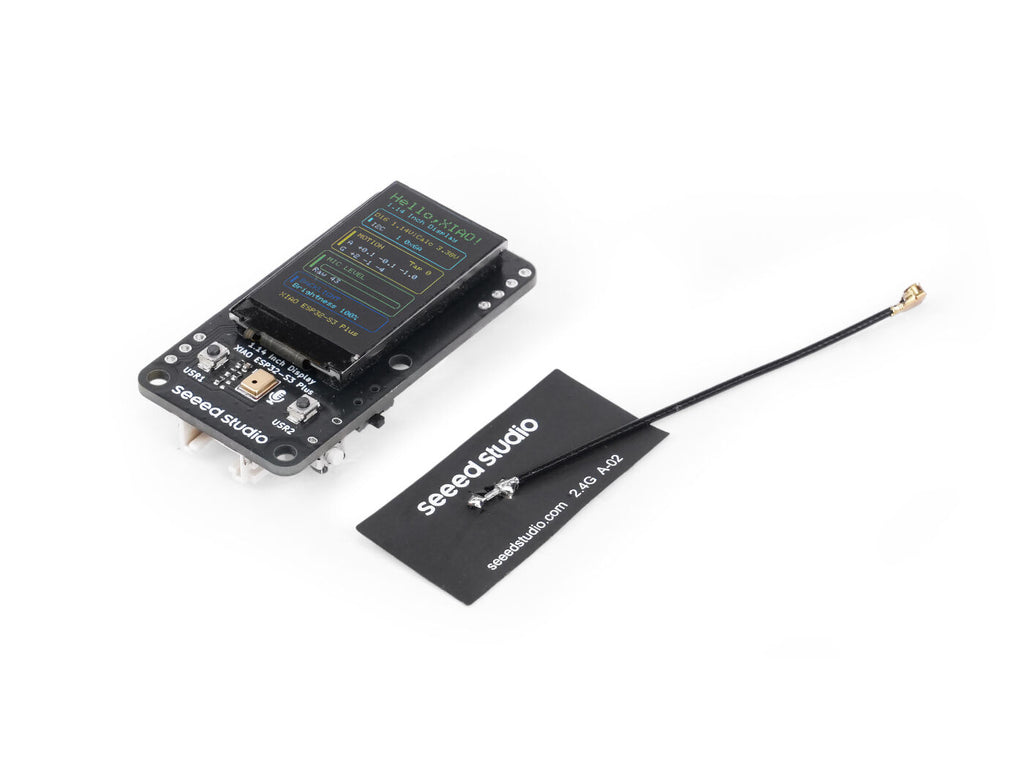

| 2.4GHz FPC Antenna A-02 for XIAO ESP32-S3 | ×1 |
| HSCODE | 8517629990 |
| USHSCODE | 8517620010 |
| UPC | |
| EUHSCODE | 8517180000 |
| COO | CHINA |
