- A Mini Smart Device Board, Ready for Your Next Project
For many small hardware projects, the hard part is not starting the controller. It is turning a screen, touch input, microphone, sensors, battery, and buttons into a small device that feels complete and usable. This board already brings these key parts together, so you can spend more time building the actual experience: designing the UI, reading data, adding interaction, and connecting to the network, instead of wiring modules one by one.
- Make Your Projects That Look and Feel More Finished

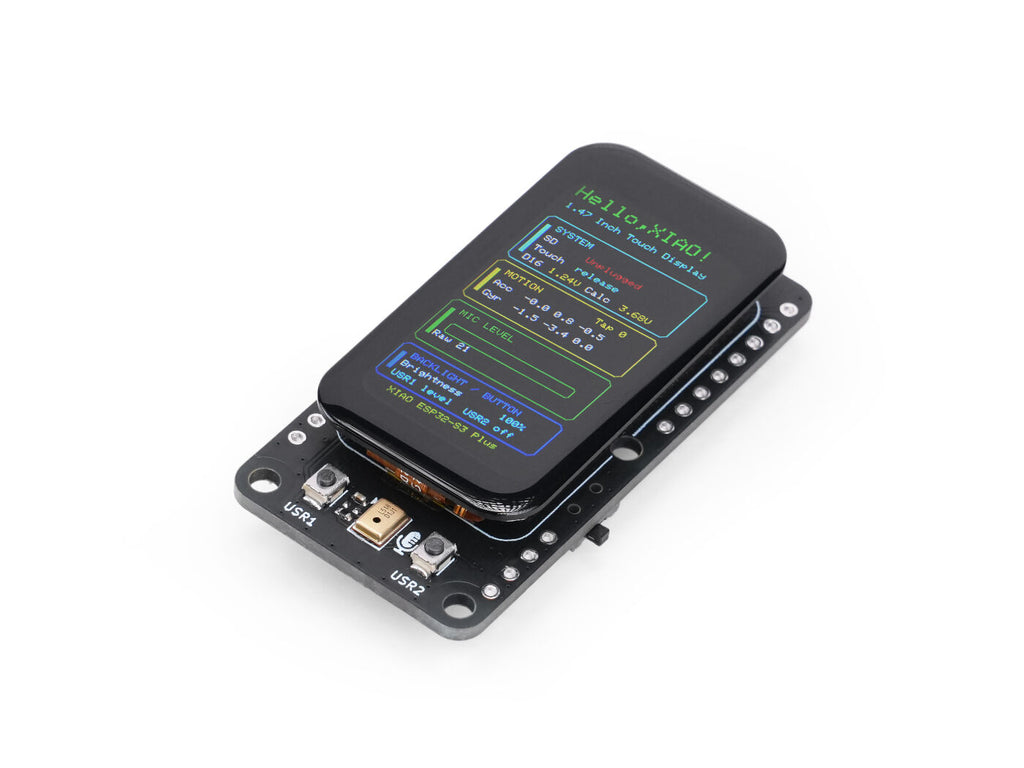

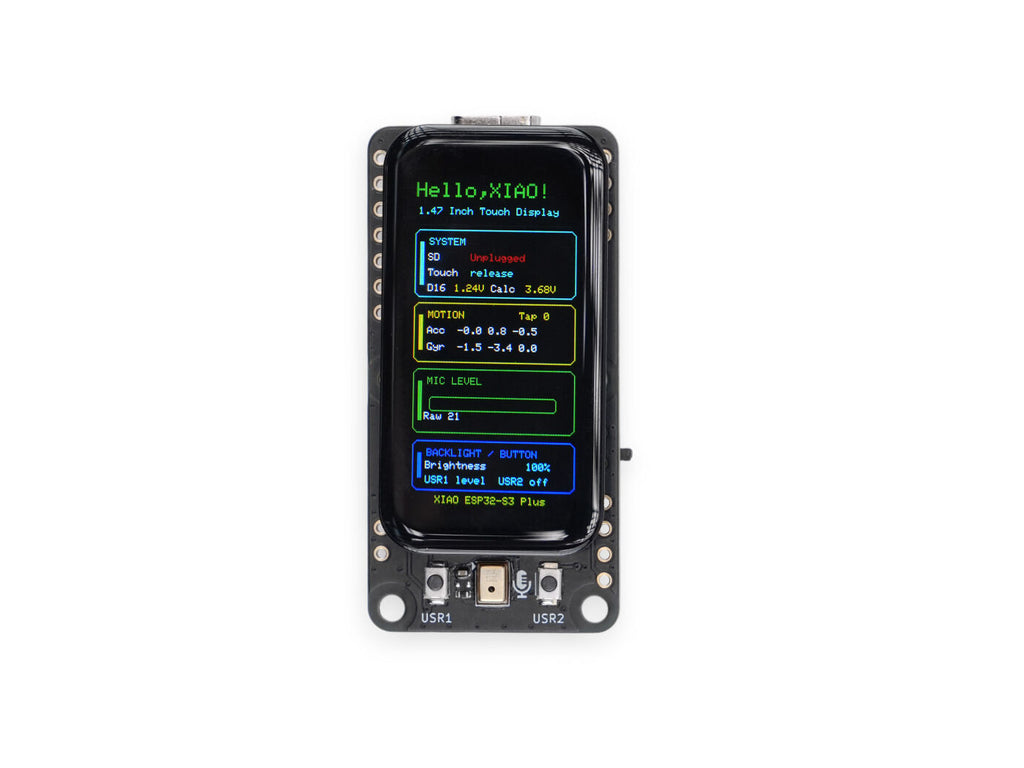

The 1.47-inch color touch display helps your project move beyond serial output, LEDs, or rough test setups. You can build menus, status pages, icons, buttons, sensor dashboards, and simple animations, making your prototype easier to show, use, and share. For demos, customer presentations, classroom projects, and maker builds, it helps the final result feel much more complete.
- Touch, Voice, and Motion in One Small Board
This board does more than show information. It also gives your project multiple ways to respond to the user. The touch screen is great for menus and controls. The microphone can be used for recording, sound triggers, or voice interaction. The IMU can detect orientation, shaking, flipping, and motion. With these built in, you can build a small device that can “listen”, “move”, and respond to touch, not just display data.
- Built for Connected AIoT Ideas
Powered by XIAO ESP32-S3 Plus, this board is a strong fit for small devices that need Wi-Fi and Bluetooth connectivity. Build a desktop weather screen, server status monitor, Home Assistant panel, smart home touch controller, cloud data display, or a mini AIoT node that connects sensors with online services.
| Specification | XIAO 1.47'' IPS Touch Display(ESP32-S3) | XIAO 1.14'' IPS Display(ESP32-S3) | XIAO 0.96'' IPS Display(ESP32-S3) |
| Positioning | Touch & Full Interaction | Sensing & Expansion | Ultra-Compact |
| Core Controller | Seeed Studio XIAO ESP32-S3 Plus | ||
| Processor | ESP32-S3R8, Dual-Core, up to 240 MHz | ||
| Memory | 8 MB PSRAM + 16 MB Flash | ||
| Wireless | 2.4 GHz Wi-Fi + BLE 5.0 | ||
| Display | 1.47" IPS TFT | 1.14" IPS TFT | 0.96" IPS TFT |
| Resolution | 172 × 320 | 135 × 240 | 80 × 160 |
| Display Driver | JD9853A | ST7789 | ST7789 |
| Touch | Capacitive Touch | No | No |
| 6-Axis IMU | Yes | ||
| PDM Digital Microphone | Yes | ||
| MicroSD Card Slot | Yes | No | No |
| Grove I2C Connector | No | Yes | No |
| User Buttons | 2 | 3 | 2 |
| Battery Connector | 2-pin JST, 3.7 V LiPo | ||
| Battery Monitoring | Battery voltage monitoring via D16 ADC; battery level can be estimated from the measured voltage. Battery status detection is not supported. | ||
| Expansion | 1x I2C Interface 1x I2S Interface 1x JTAG Interface 2x User Button Interface | 1x I2S Interface 1x JTAG Interface 3x User Button Interface | 1x I2C Interface 1x I2S Interface 1x JTAG Interface 2x User Button Interface |

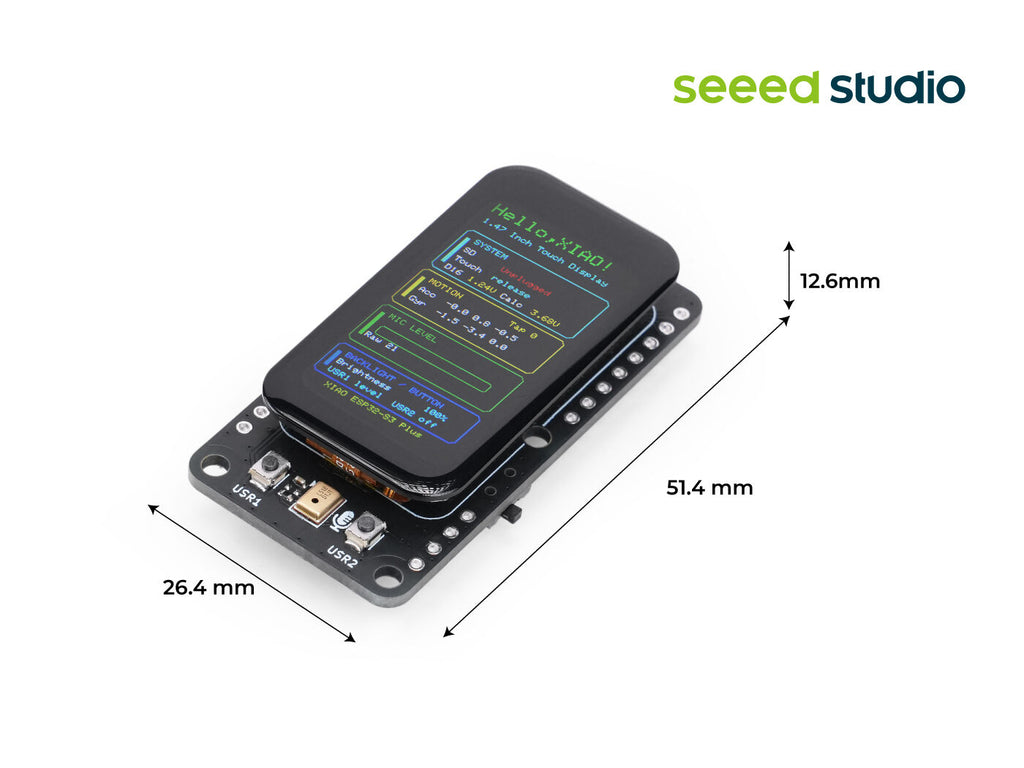

| Board Size | 26.4 × 51.4 × 12.6 mm | 26 × 48 × 10.6 mm | 18.8 × 43.6 × 10.6 mm |
| Best For | Touch UI, portable HMI, local media & data logging | Sensor dashboards, Grove projects, physical controllers | Tiny IoT devices, wearables, status displays |
- Onboard
- Mini Desktop Dashboard
- AI Voice Assistant & Agent Terminal Prototype
- Smart Home Touch Controller
- Digital Pet and Interactive Toy
| XIAO 1.47'' IPS Display(ESP32-S3) | ×1 |

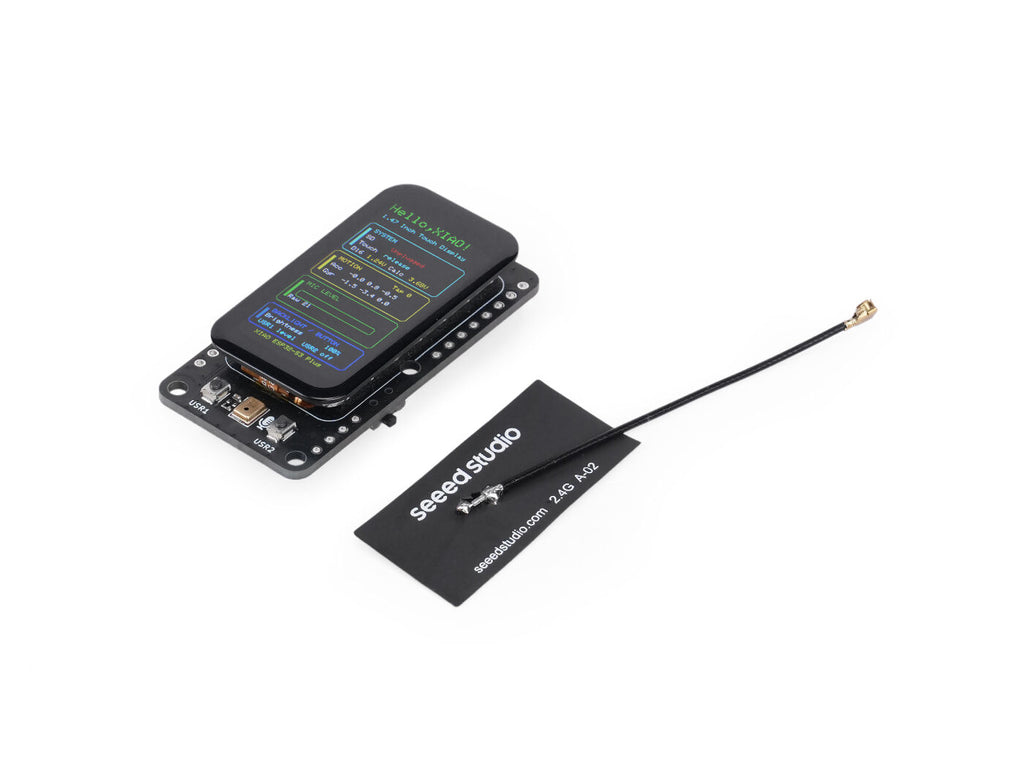

| 2.4GHz FPC Antenna A-02 for XIAO ESP32-S3 | ×1 |
| HSCODE | 8543709990 |
| USHSCODE | 8517180050 |
| UPC | |
| EUHSCODE | 8543709099 |
| COO | CHINA |
