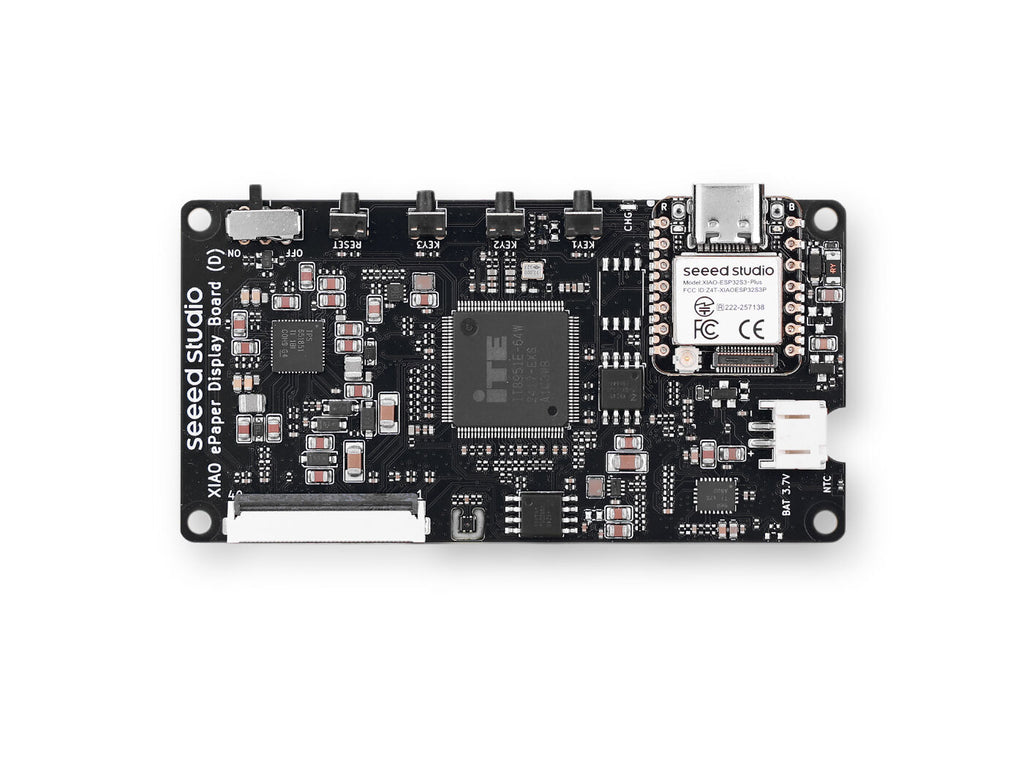

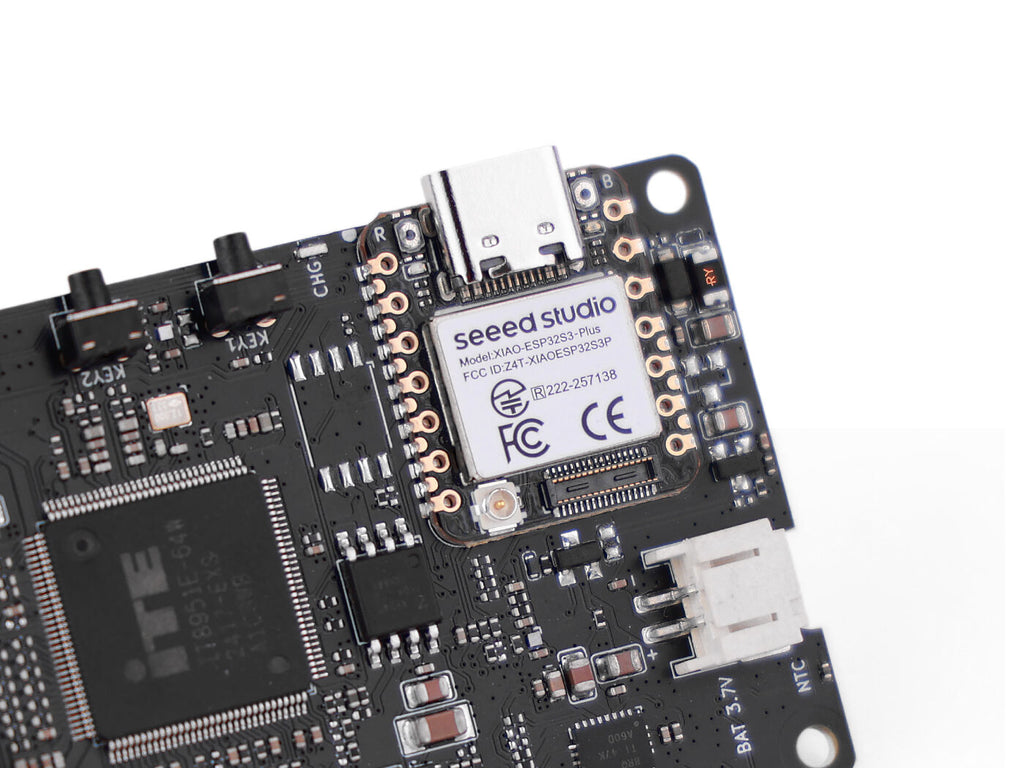

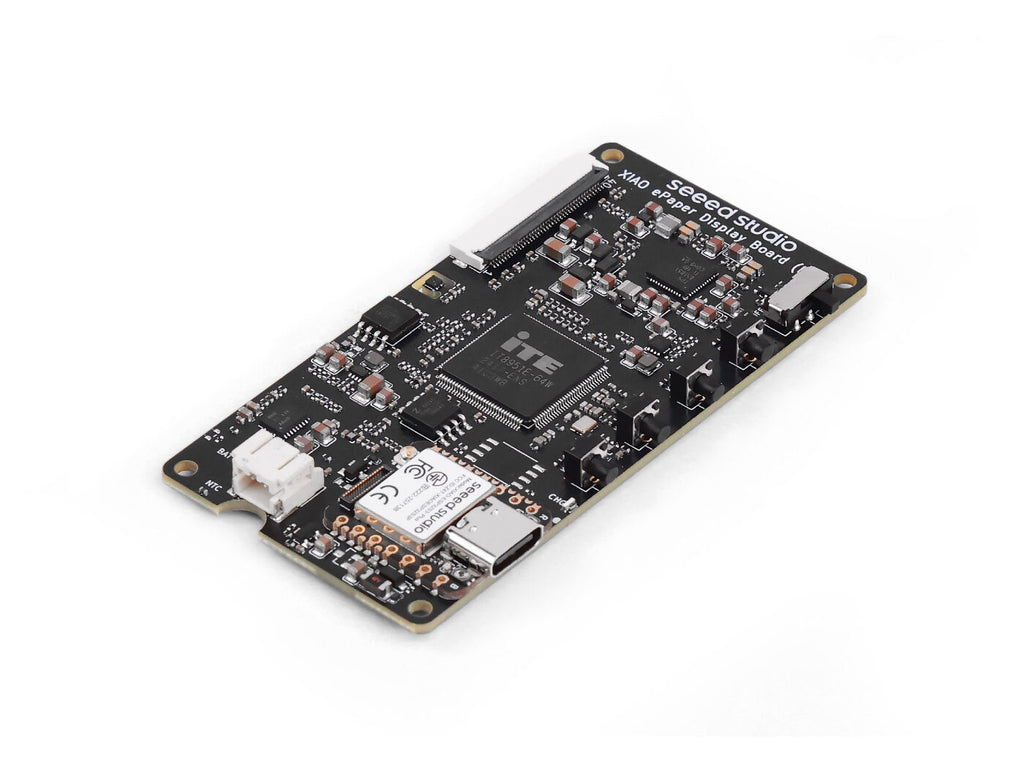

- Built in XIAO ESP32-S3 Plus：Works immediately when connected to a compatible ePaper display.
- Dedicated 10.3" Monochrome ePaper Display Support: Specifically designed for 10.3" high-speed refresh epaper display with 1404 × 1872 pixels and up to 16-level grayscale, ensuring quick setup and stable operation.

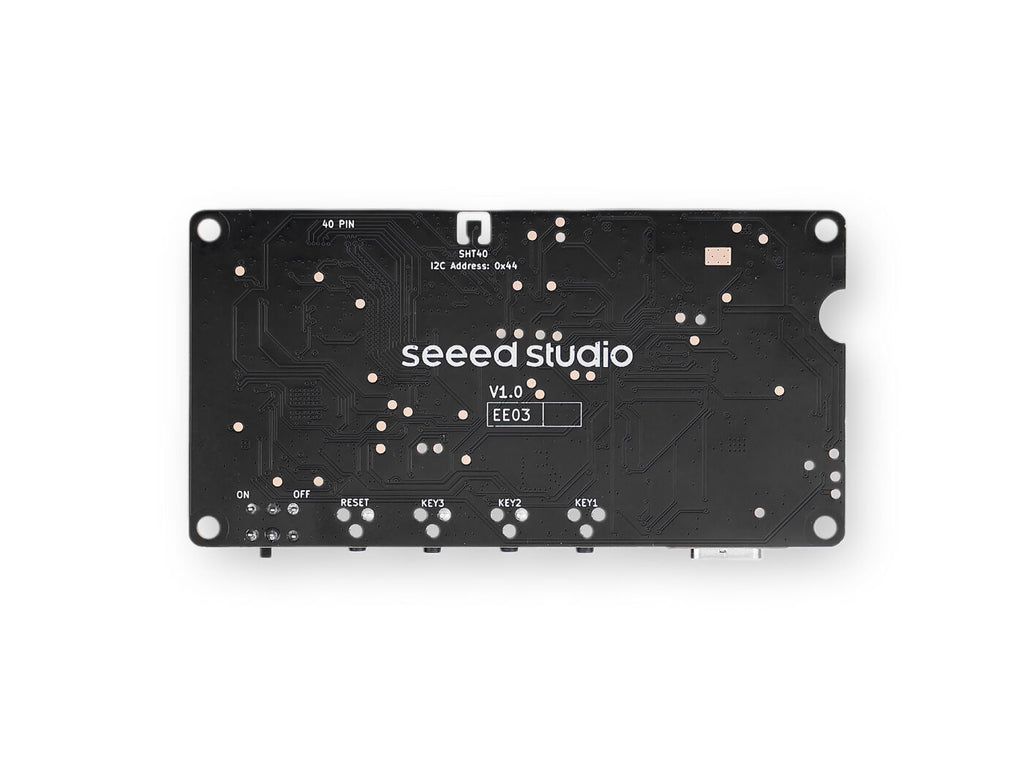

- High-Speed Refresh Enabled: Integrated T-CON timing control ensures precise high-speed driving, while the onboard SHT40 provides real-time temperature sensing for waveform compensation.
- BAT Connector with Switch: Provides simple battery connection and integrates a switch, enabling efficient power management and energy savings.

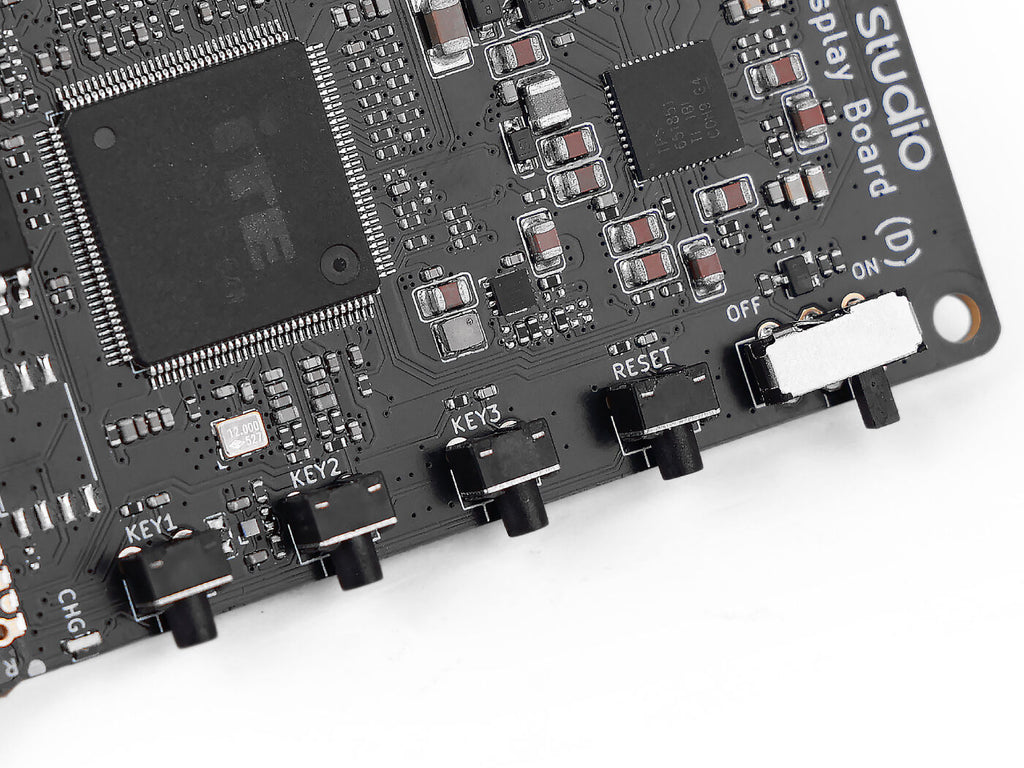

- User-Friendly Buttons: Features 1 reset button and 3 user-programmable buttons, providing flexibility for project acceleration and customizable functions.
- SenseCraft HMI Firmware Pre-Flashed: Simply plug in and start right away with SenseCraft HMI, our AI-powered no-code UI design platform. Choose from rich templates or drag-and-drop UI building (with optional AI assistance), and deploy to the ePaper display in just a few clicks.
Note:
Occasional high-frequency sound may occur during operation. This is normal due to the ePaper power circuit and does not affect performance.
Parameter | Description |
Processor | |
ePaper Connector | FPC 40 Pin 0.5mm |
Battery Connector | JST 2.0mm |
Switch | Battery Power ON/OFF |
Power Supply | - 3.7V Li-Battery - USB Type-C |
Button | -1x Reset button -3x User button |
- Digital E-Book Readers: Deliver a paper-like monochrome reading experience with 16-level grayscale and fast refresh for smoother page turns and more responsive updates.
- Real-Time Dashboard: Display live information such as weather updates, calendar schedules, key notifications, and data widgets like energy usage, sensor status, or KPIs.
- Security Alerts: Display alerts and notifications about security events, such as motion detection or door/window sensor activation.
- Public Transit Arrival Board: Show real-time bus/train arrival times, route status, and service alerts at a glance for daily commuting.
ePaper Board Selection Guide
Product | ||||||
Processor | XIAO ESP32-S3 Plus | XIAO ESP32-S3 Plus | XIAO ESP32-S3 Plus | XIAO nRF52840 Plus | N/A(Compatible with XIAO Series) | |
Compatible Displays | 24 Pin ePaper 50 Pin ePaper | 24 Pin ePaper | 24 Pin ePaper(NOT for 2.9" 4-color & 7.5" B/W) | |||
Battery Connector | JST 2.0mm | JST 2.0mm | JST 2.0mm | JST 2.0mm | / | |
Battery Power ON/OFF | √ | √ | √ | √ | / | |
Button | 1x Reset 3x User | 1x Reset 3x User | 1x Reset 3x User | / | ||
Extension IO Port | / | / | / | √ | ||
SenseCraft HMI | √ | √ | √ | / | / | |
ePaper Selection Guide
Product | Name | Resolution | Display Color | Partial Refresh | SenseCraft HMI |
200x200 | √ | √ | |||
250x122 | √ | √ | |||
250×122 |
| √ | |||
212x104 | √ |
| |||
296x128 |
|
| |||
296x128 | √ | √ | |||
296x128 |
| √ | |||
400x300 | √ |
| |||
800x480 |
| √ | |||
648x480 | √ |
| |||
800x480 |
| √ | |||
800x480 | √ | √ | |||
1404×1872 | √ |
| |||
1600x1200 |
|
|
XlA0 ePaper Display Board EE03 Resources

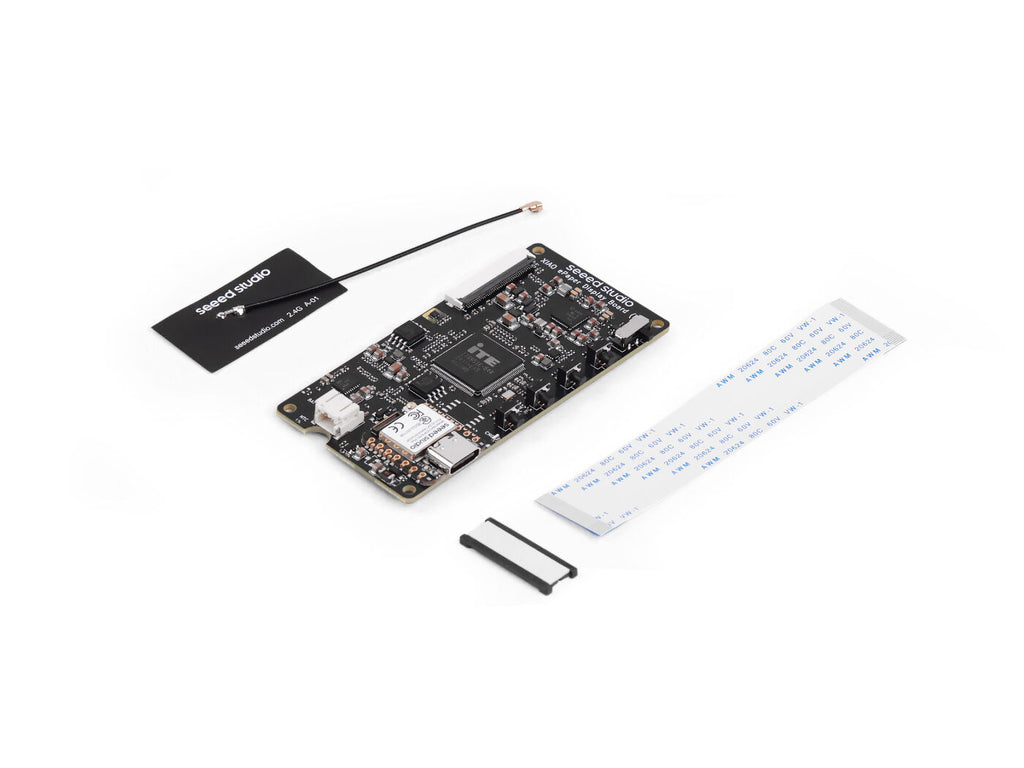

XIAO ePaper Display Board EE03 | ×1 |
40Pin Adapter and 40Pin FFC Extension Cable | ×1 |
2.4GHz FPC Antenna (2.9dBi) | ×1 |
| HSCODE | 8543909000 |
| USHSCODE | 8543903500 |
| UPC | |
| EUHSCODE | 8471707000 |
| COO | CHINA |
